2959S13W30B - Schneider Electric - Incandescent Indicator Light

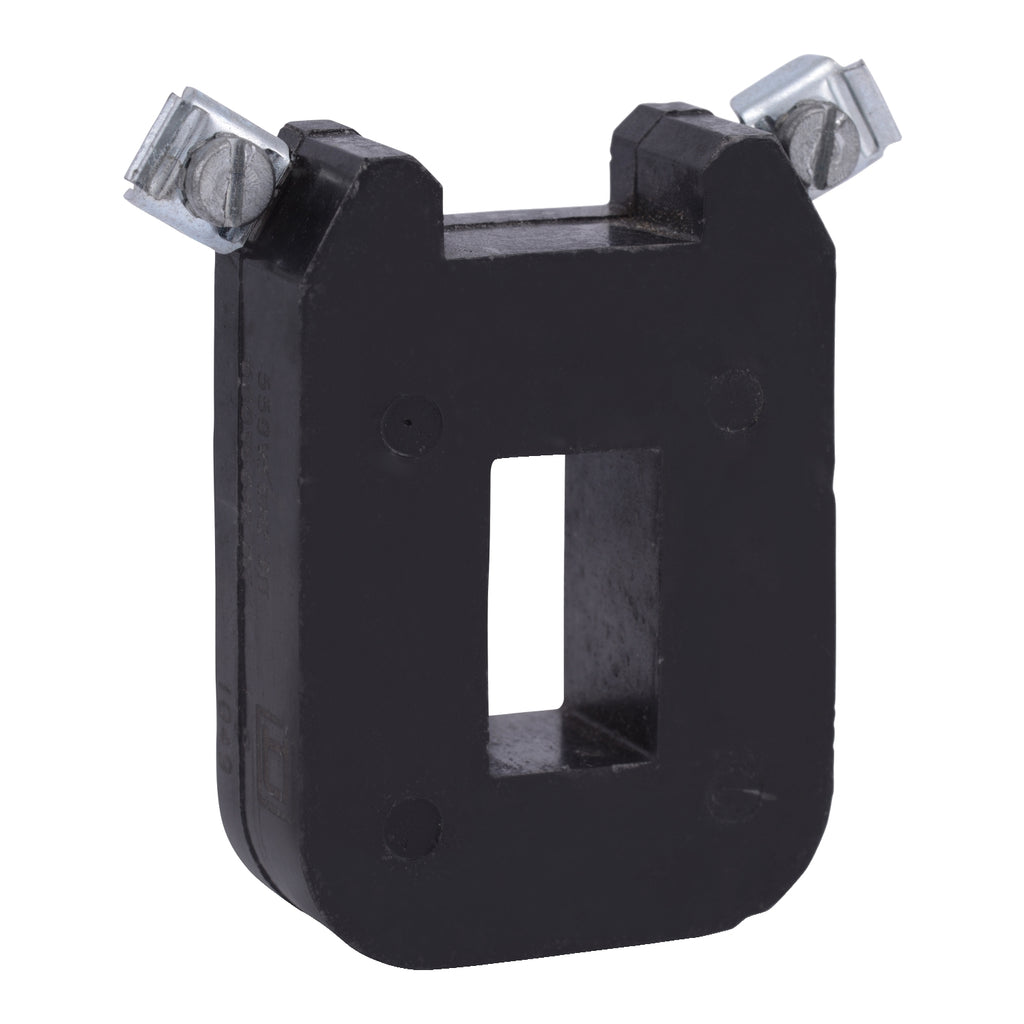

This unlatch coil for mechanically held 8903 SM and 8903 SP lighting contactors can be easily replaced. By changing out the coil, the lighting contactor can be unlatched with a different voltage. This will also save the cost of a whole new contactor if the unlatch coil were to fail. This coil is used in 8903SM and 8903SP mechanically held lighting contactors. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 80 VA. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Coil |
| Accessory / separate part destination |
Class 8903 type SM/SP lighting contactor |
Complementary
| [Ue] rated operational voltage |
120 V AC 60 Hz
110 V AC 50 Hz |
| inrush power in VA |
80 VA |
Ordering and shipping details
| Category |
US1CP1018079 |
| Discount Schedule |
CP10 |
| GTIN |
785901470373 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.100 in (5.334 cm) |
| Package 1 Width |
2.900 in (7.366 cm) |
| Package 1 Length |
3.300 in (8.382 cm) |
| Package weight(Lbs) |
5.12 oz (145.15 g) |
PRODUCT DATASHEET
2959S13W30B_Product Datasheet
