3104140042 - Schneider Electric - 110/120VAC Square D Type S NEMA Motor Starter

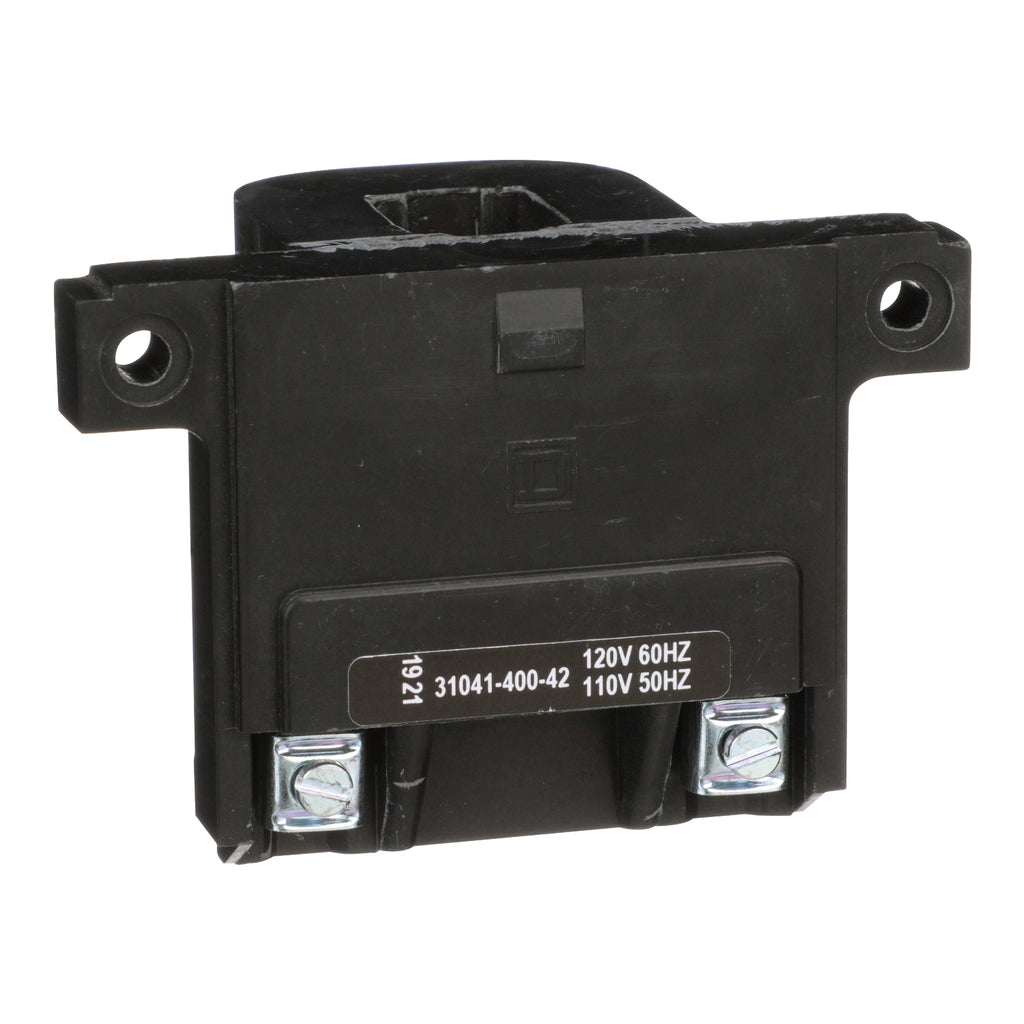

The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Product or Component Type | Coil |
|---|---|
| Accessory / separate part destination | Class 8502 type SA (series A)/SB/SC contactor Class 8536 type SA (series A)/SB/SC starter Class 8903 type SM lighting contactor |
| NEMA size | 1 00 0 |
|---|---|
| [Ue] rated operational voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
| Inrush power in VA | 245 VA 232 VA |
| Average consumption | 27 VA 26 VA |
| Height | 2.2 in (54.7 mm) |
| Width | 3.2 in (81.5 mm) |
| Depth | 1.9 in (48.3 mm) |
| Category | US1CP1018079 |
|---|---|
| Discount Schedule | CP10 |
| GTIN | 785901229124 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.200 in (5.588 cm) |
| Package 1 Width | 2.900 in (7.366 cm) |
| Package 1 Length | 3.500 in (8.890 cm) |
| Package weight(Lbs) | 22.300 lb(US) (10.115 kg) |
