3104140052 - Schneider Electric - 208 VAC Square D Type S NEMA Motor Starter

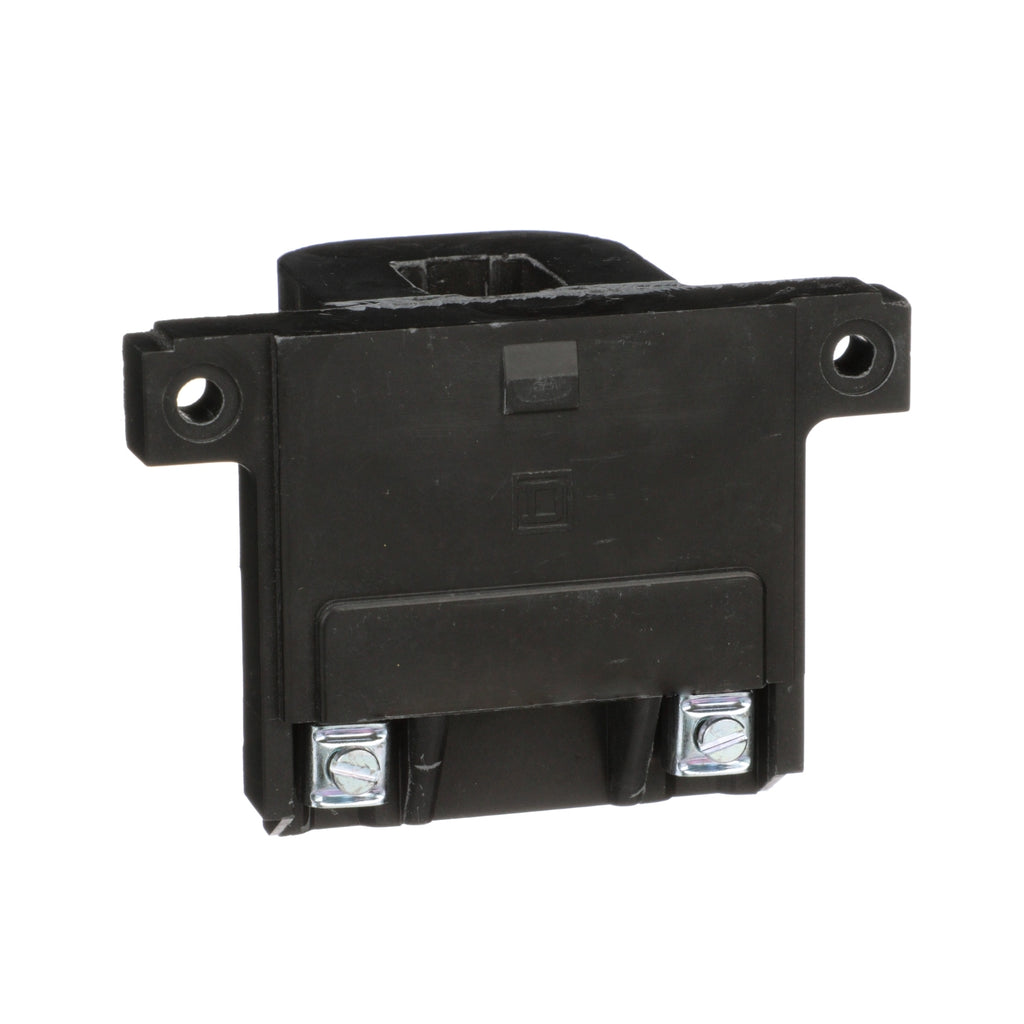

Type S contactor or starter coils can be easily replaced. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, 8502SB or 8502SC contactor or an 8903SM lighting contactor. The coil is rated for 277 VAC 60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Product or Component Type | Coil |
|---|---|
| Accessory / separate part destination | Class 8502 type SA (series A)/SB/SC contactor Class 8536 type SA (series A)/SB/SC starter Class 8903 type SM lighting contactor |
| NEMA size | 00 1 0 |
|---|---|
| [Ue] rated operational voltage | 277 V AC 60 Hz |
| inrush power in VA | 245 VA |
| Average consumption | 27 VA |
| Height | 2.2 in (54.7 mm) |
| Width | 3.2 in (81.5 mm) |
| Depth | 1.9 in (48.3 mm) |
| Category | US1CP1018079 |
|---|---|
| Discount Schedule | CP10 |
| GTIN | 785901062936 |
| Returnability | Yes |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.100 in (5.334 cm) |
| Package 1 Width | 2.700 in (6.858 cm) |
| Package 1 Length | 3.300 in (8.382 cm) |
| Package weight(Lbs) | 7.040 oz (199.581 g) |
