3106340947 - Schneider Electric - 220/240VAC Square D Type S NEMA Motor Starter

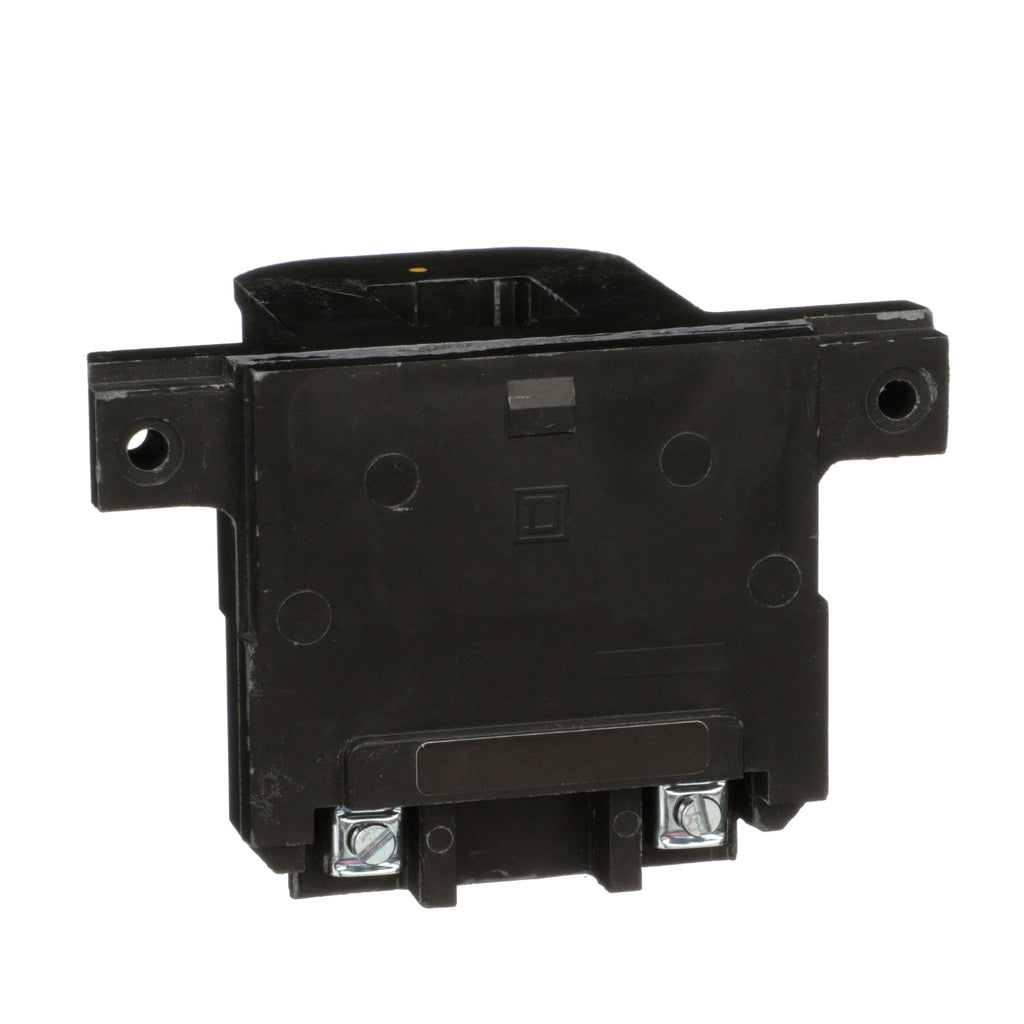

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SD contactor, an 8536SD starter or an 8903SP lighting contactor. This coil is rated for 220/240 VAC 50/60 Hz. The inrush power of this coil is 311 VA. It has an average sealed consumption of 37 VA. This coil has a height of 66.2 mm, a width of 101.1 mm and a depth of 61.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Product or Component Type | Coil |
|---|---|
| Accessory / separate part destination | Class 8502 type SD contactor Class 8903 type SP lighting contactor |
| NEMA size | 2 |
|---|---|
| [Ue] rated operational voltage | 240 V AC 60 Hz 220 V AC 50 Hz |
| Inrush power in VA | 296 VA 311 VA |
| Average consumption | 36 VA 37 VA |
| Height | 2.6 in (66.2 mm) |
| Width | 4.0 in (101.1 mm) |
| Depth | 2.4 in (61.7 mm) |
| Category | US10CP118061 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901504979 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.70 in (6.858 cm) |
| Package 1 Width | 2.50 in (6.350 cm) |
| Package 1 Length | 4.00 in (10.160 cm) |
| Package 1 Weight | 12.800 oz (362.874 g) |
PRODUCT DATASHEET
