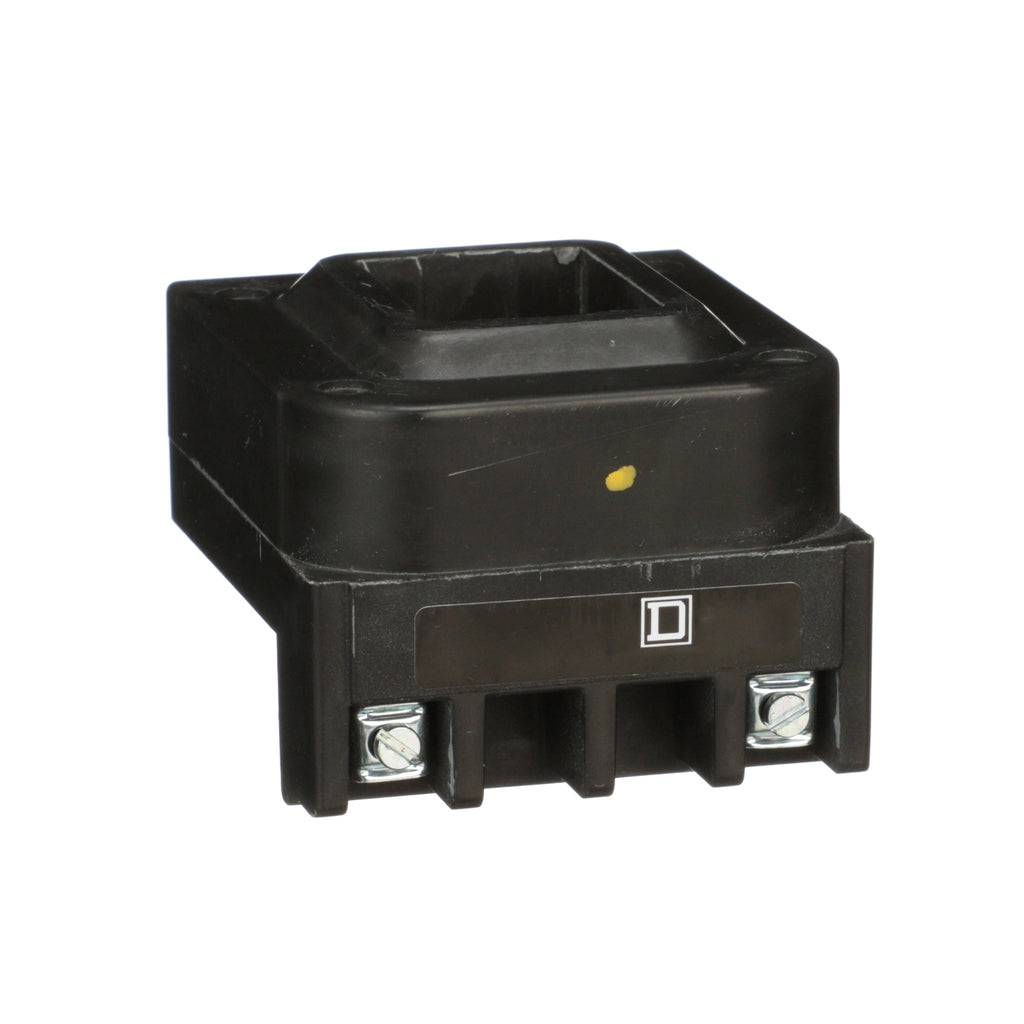

3107440044 - Schneider Electric - 208VAC Square D Type S NEMA Motor Starter
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SE contactor, an 8536SE starter, an 8903SQ lighting contactor or an 8910DPA12 definite purpose contactor. This coil is rated for 208 VAC 60 Hz. The inrush power of this coil is 700 VA. It has an average sealed consumption of 46 VA. This coil has a height of 73 mm, a width of 65 mm and a depth of 53.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Product or Component Type | Coil |
|---|---|
| Accessory / separate part destination | Class 8502 type SE contactor Class 8903 type SQ lighting contactor Class 8910 type DPA12/SYD138 contactor |
| NEMA size | 3 |
|---|---|
| [Ue] rated operational voltage | 208 V AC 60 Hz |
| Inrush power in VA | 700 VA |
| Average consumption | 46 VA |
| Height | 2.9 in (73 mm) |
| Width | 2.6 in (65 mm) |
| Depth | 0.082 in (2.093 mm) |
| Category | US1CP1018079 |
|---|---|
| Discount Schedule | CP10 |
| GTIN | 785901226055 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.10 in (5.334 cm) |
| Package 1 Width | 2.80 in (7.112 cm) |
| Package 1 Length | 3.40 in (8.636 cm) |
| Package 1 Weight | 12.800 oz (362.874 g) |
