3109140038 - Schneider Electric - 110/120VAC Square D Type S NEMA Motor Starter

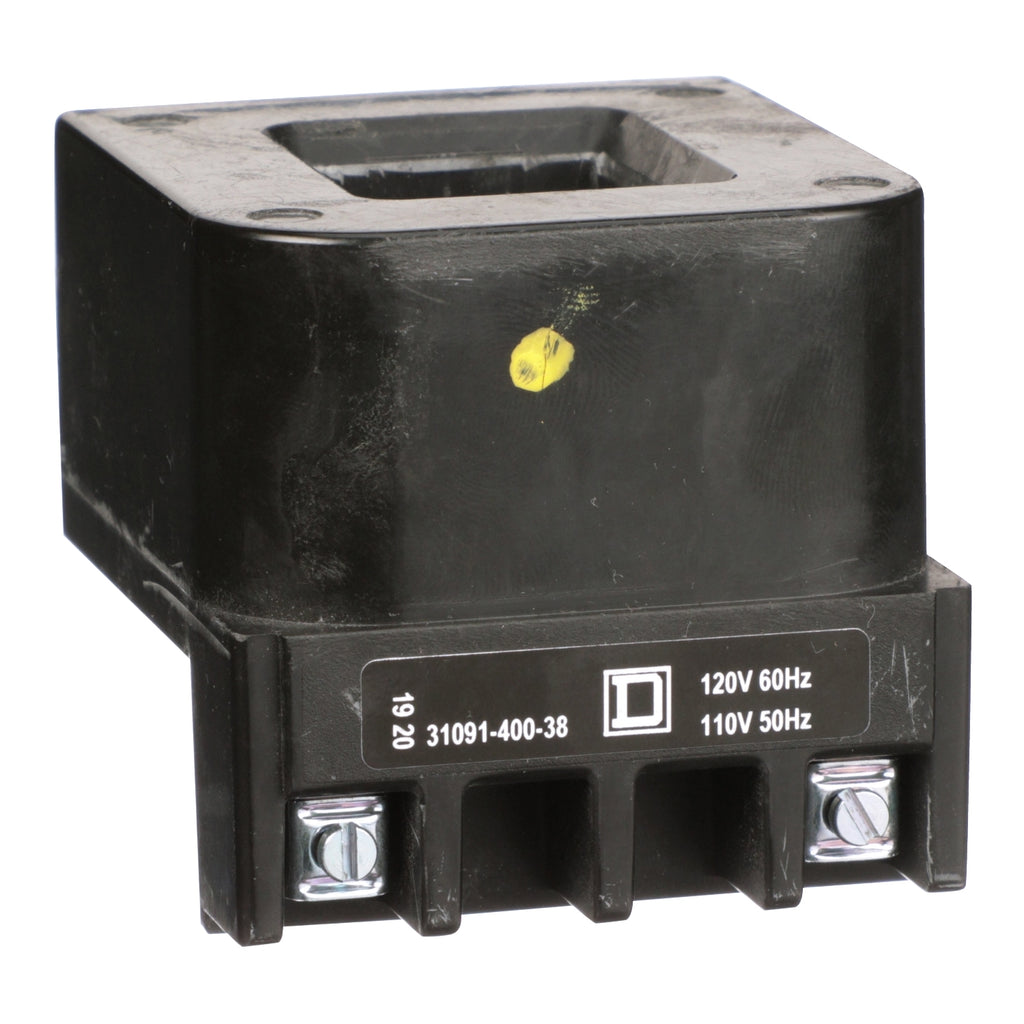

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SF contactor, an 8536SF starter or an 8903SV lighting contactor. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 1185 VA. It has an average sealed consumption of 85 VA. This coil has a height of 74.7 mm, a width of 65 mm and a depth of 62.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Product or Component Type | Coil |
|---|---|
| Accessory / separate part destination | Class 8502 type SF contactor Class 8903 type SV lighting contactor Class 8910 type SYD230 contactor |
| NEMA size | 4 |
|---|---|
| [Ue] rated operational voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
| Inrush power in VA | 1185 VA 1260 VA |
| Average consumption | 89 VA 85 VA |
| Height | 2.9 in (73 mm) |
| Width | 2.6 in (65 mm) |
| Depth | 2.5 in (62.7 mm) |
| Category | US1CP1018079 |
|---|---|
| Discount Schedule | CP10 |
| GTIN | 785901323563 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.70 in (6.858 cm) |
| Package 1 Width | 4.10 in (10.414 cm) |
| Package 1 Length | 2.40 in (6.096 cm) |
| Package 1 Weight | 19.680 oz (557.918 g) |
