Description
| Main | |
|---|---|

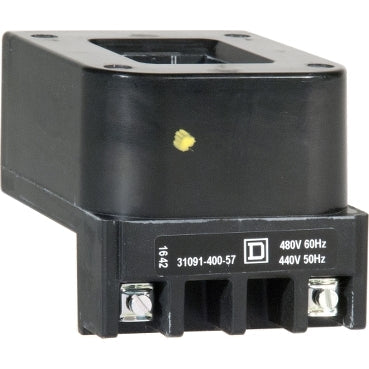

| Product or Component Type | Coil |
| Accessory / separate part destination | Class 8502 type SF contactorClass 8903 type SV lighting contactorClass 8910 type SYD230 contactor |
| Complementary | |
| NEMA size | 4 |
| [Ue] rated operational voltage | 480 V AC 60 Hz440 V AC 50 Hz |
| Inrush power in VA | 1260 VA1185 VA |
| Average consumption | 85 VA89 VA |
| Height | 2.9 in (73 mm) |
| Width | 2.6 in (65 mm) |
| Depth | 2.5 in (62.7 mm) |
| Ordering and shipping details | |
| Category | US1CP1018079 |
| Discount Schedule | CP10 |
| GTIN | 785901323600 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.800 in (7.112 cm) |
| Package 1 Width | 2.500 in (6.350 cm) |
| Package 1 Length | 4.000 in (10.160 cm) |
| Package weight(Lbs) | 19.520 oz (553.382 g) |
| Contractual warranty | |
| Warranty (in months) | 18 |
