3109640024 - Schneider Electric - 440/480VAC Square D Type S NEMA Motor Starter

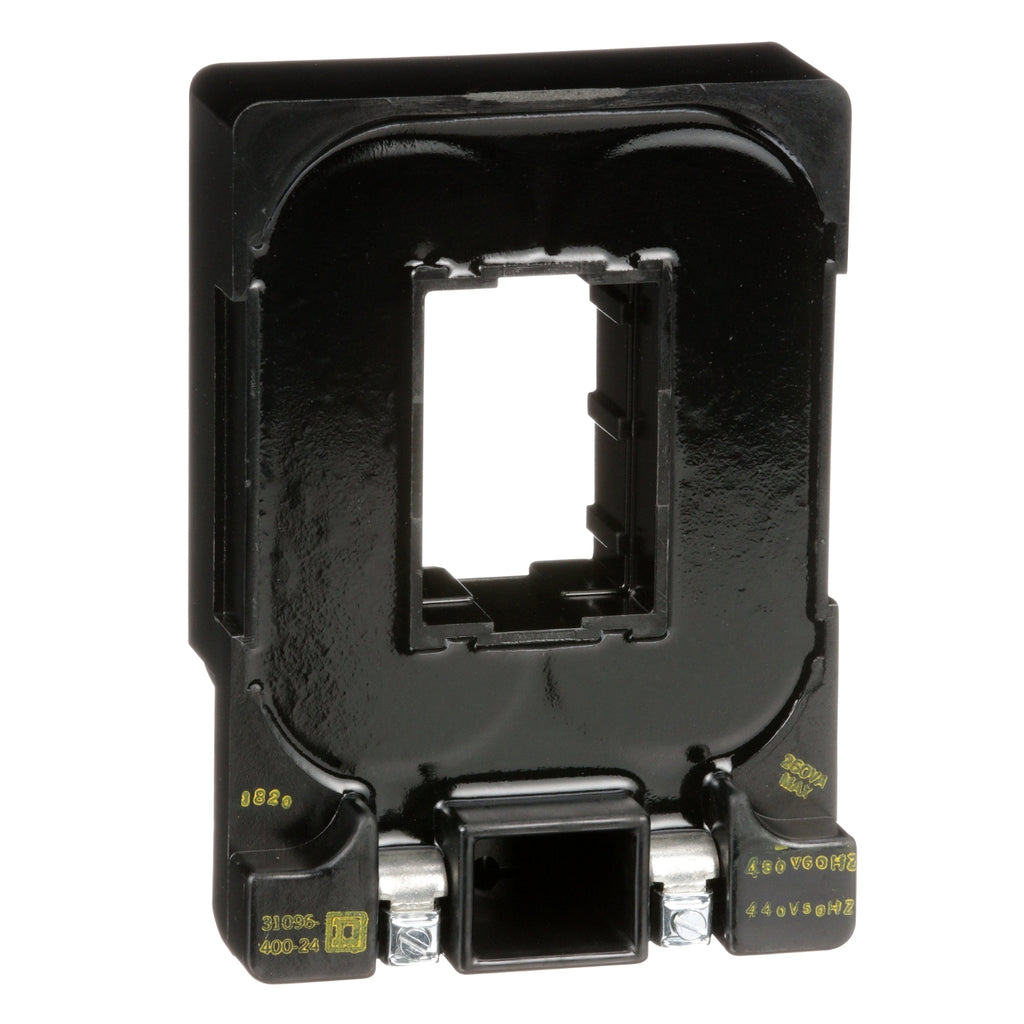

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SG Series A contactor, an 8536SG Series A starter or an 8903SX Series A lighting contactor. The coil is rated for 440/480 VAC 50/60 Hz. The inrush power of this coil is 2970 VA. It has an average sealed consumption of 212 VA. This coil has a height of 140.5 mm, a width of 101.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Product or Component Type | Coil |
|---|---|
| Accessory / separate part destination | Class 8502 type SG contactor Class 8903 type SY/SX lighting contactor Class 8910 type SYD368 (series A) contactor |
| NEMA size | 5 |
|---|---|
| [Ue] rated operational voltage | 480 V AC 60 Hz 440 V AC 50 Hz |
| Inrush power in VA | 2970 VA |
| Average consumption | 212 VA 250 VA |
| Height | 5.5 in (140.5 mm) |
| Width | 4.0 in (101.2 mm) |
| Depth | 1.8 in (45.3 mm) |
| Category | US1CP1018079 |
|---|---|
| Discount Schedule | CP10 |
| GTIN | 785901326939 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.70 in (14.478 cm) |
| Package 1 Width | 4.10 in (10.414 cm) |
| Package 1 Length | 6.50 in (16.51 cm) |
| Package 1 Weight | 2.630 lb(US) (1.193 kg) |
