Description
| Main | |
|---|---|
| Range | ComPacT |
| Range of Product | ComPacT NS630b...1600 new generationComPacT NS1600b...3200 new generationGalaxy VL |
| Device short name | MX |

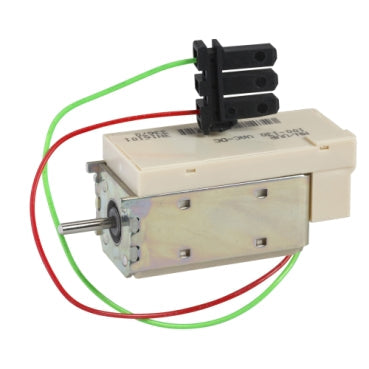

| Product or Component Type | Voltage release |
| Device Application | Control |
| Range Compatibility | Galaxy VL |
| Voltage release type | Opening coilInstantaneous voltage release |
| Control Type | Standard |
| [Uc] control circuit voltage | 24 V AC 50 Hz24...30 V DC |
| Circuit breaker mounting mode | Fixed |
| Range compatibility | ComPact ComPact NS630b...1600ComPact ComPact NS1600b...3200 |
| Complementary | |
| Operating threshold | 0.7...1.1 x Un opening |
| Response time | 50 ms +/- 10 % Compact NS630b...160050 ms +/- 10 % Compact NS1600b...320055 ms +/- 10 % MasterPact NT70 ms +/- 10 % MasterPact NW |
| Supply holding power | 4.5 VA |
| Accessory / separate part category | Spare part MasterPact NTSpare part MasterPact NWSpare part ComPacT NS630b...1600 new generationSpare part ComPacT NS1600b...3200 new generation |
| Ordering and shipping details | |
| Category | US10DE201250 |
| Discount Schedule | 0DE2 |
| GTIN | 3303430336594 |
| Returnability | Yes |
| Country of origin | CN |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.299 in (3.300 cm) |
| Package 1 Width | 2.362 in (6.000 cm) |
| Package 1 Length | 3.307 in (8.400 cm) |
| Package weight(Lbs) | 5.354 oz (151.800 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.543 in (9.000 cm) |
| Package 2 Width | 7.283 in (18.500 cm) |
| Package 2 Length | 5.197 in (13.200 cm) |
| Package 2 Weight | 3.461 lb(US) (1.570 kg) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 11.811 in (30.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 42.556 lb(US) (19.303 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
33659
