Description

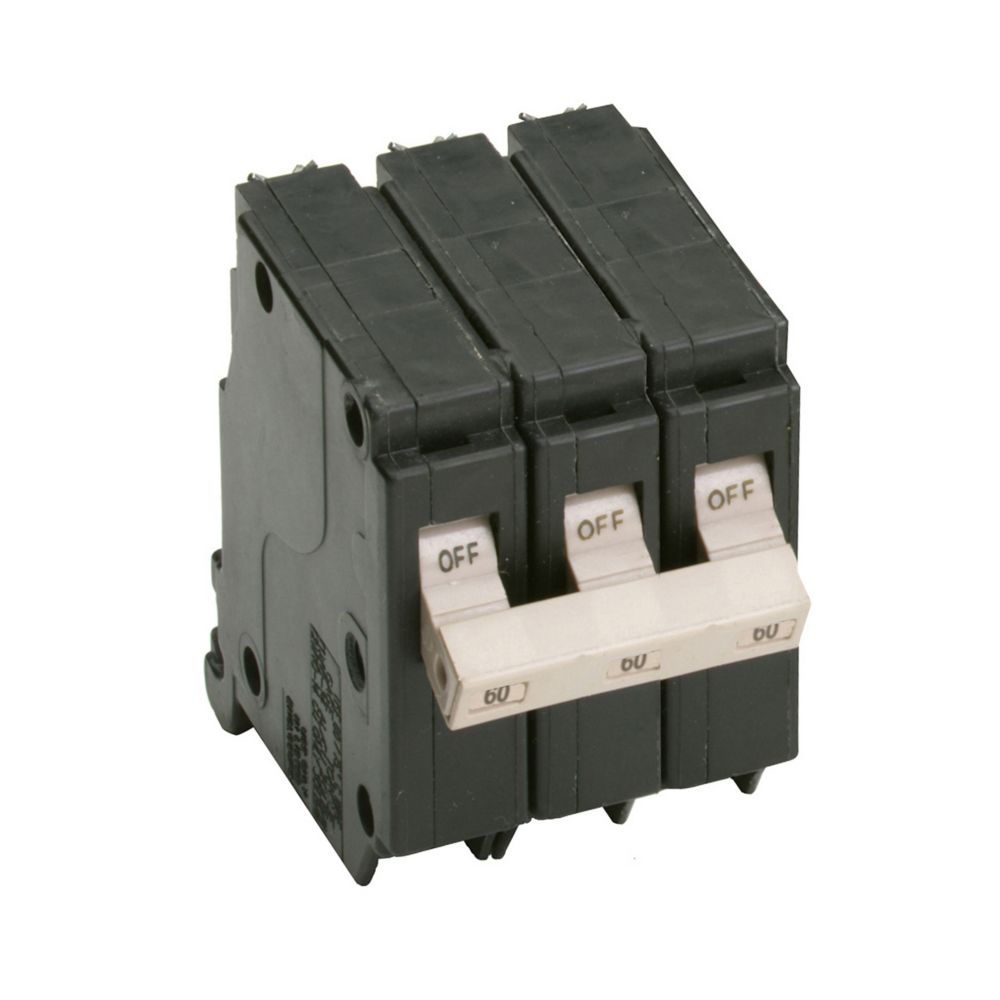

CH360 - Eaton Cutler Hammer - Crouse-Hinds Series Thermal Magnetic Circuit Breakers
Eaton CH thermal magnetic circuit breaker,Type CH 3/4-Inch standard circuit breaker,60 A,10 kAIC,Three-pole,240V,CH,Common breaker trip,#10-1/0 AWG Cu/Al,CH,Type CH Loadcenters.
GENERAL SPECIFICATIONS
| Product Name |
Eaton CH thermal magnetic circuit breaker
|
| Catalog Number |
CH360
|
| UPC |
782113102115
|
| Product Length/Depth |
2.2 in
|
| Product Height |
2.25 in
|
| Product Width |
3 in
|
| Product Weight |
0.9 lb
|
| Certifications |
UL 489
|
| Catalog Notes |
HACR rated, Three-Pole 240V Common Trip Requires Three 3/4-Inch Spaces
|
| Product Type |
Thermal magnetic circuit breakers
|
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters
|
| Amperage Rating |
60 A
|
| Voltage rating |
240 V - 240 V
|
| Trip Type |
Common breaker trip
|
| Circuit breaker type |
CH
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
CH
|
| Wire size |
#10-1/0 AWG Cu/Al
|
| Number of poles |
Three-pole
|
| Type |
Type CH 3/4-Inch standard circuit breaker
|
