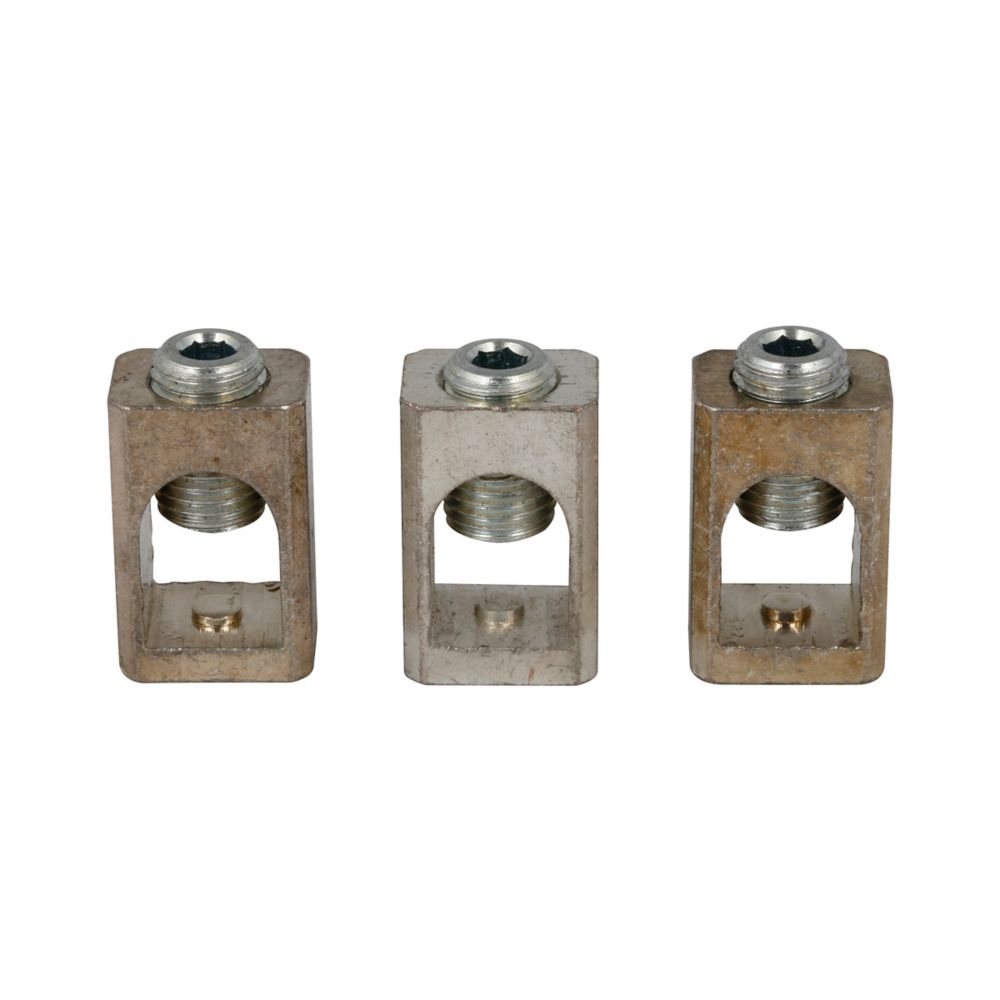

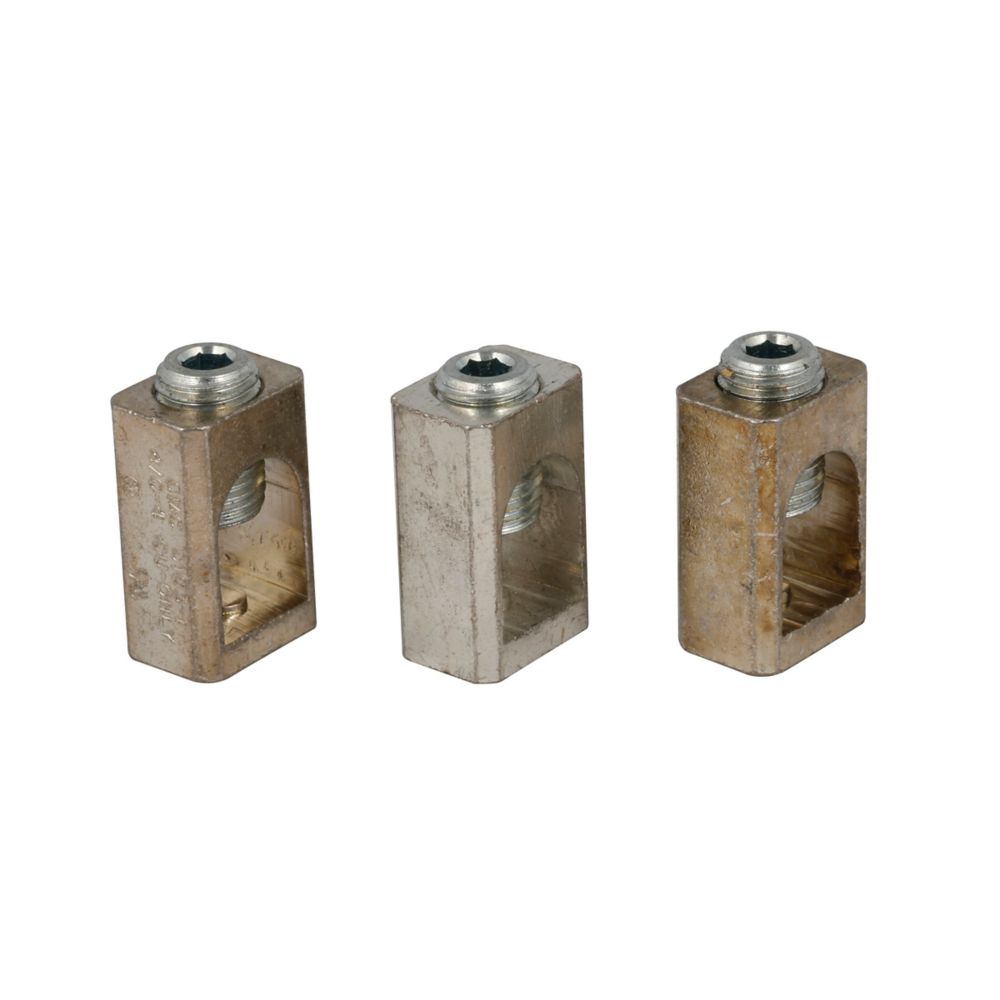

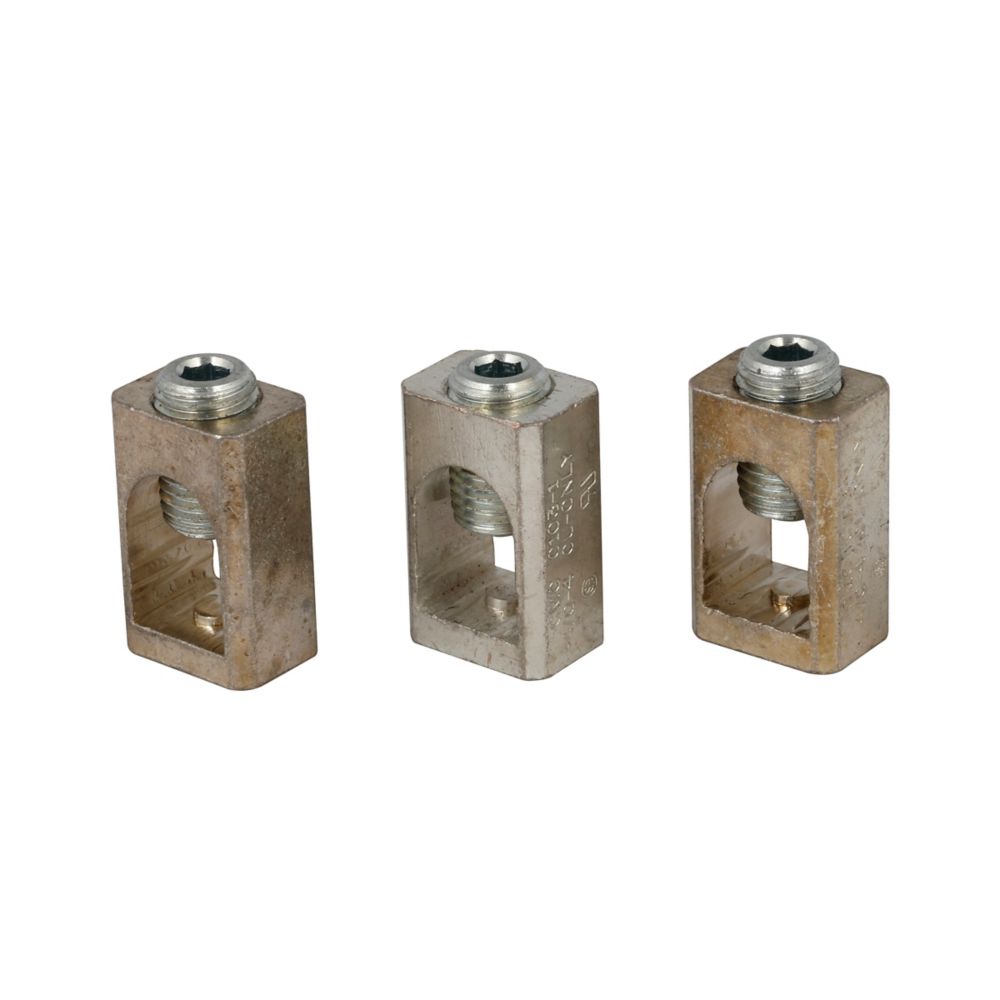

3TA100FD - Eaton Cutler Hammer - 100A Molded Case Circuit Breaker Accessory Line and Load Terminal
The Eaton 3TA100FD is a terminal lug kit for F-Frame circuit breakers rated up to 100 A, providing dependable connections for standard installations. It accommodates #14–1/0 AWG copper or aluminum conductors with pressure-type terminals, offering flexibility for different wiring needs. Compact and reliable, it ensures safe and efficient electrical performance.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory line and load terminal
|
| Catalog Number |
3TA100FD
|
| UPC |
786679420683
|
| Product Length/Depth |
2.2 in
|
| Product Height |
0.5 in
|
| Product Width |
1 in
|
| Product Weight |
0.06 lb
|
| Compliances |
Contact Manufacturer
|
| Certifications |
UL Listed
|
| Global Catalog |
3TA100FD
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
100 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type
|
| Wire size |
#14-1/0 AWG Cu/Al
|
| Quantity |
18
|
| Type |
Line and load terminals
|
