Description

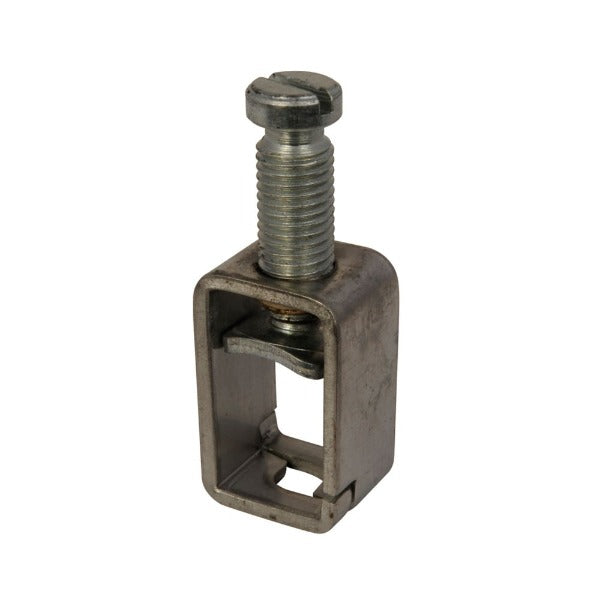

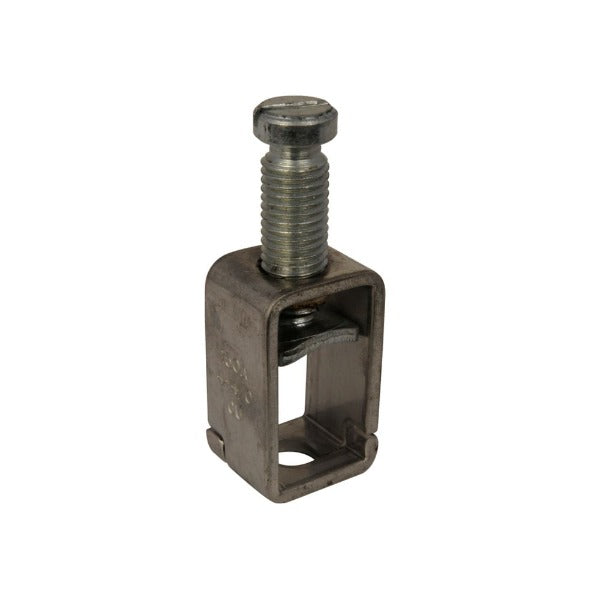

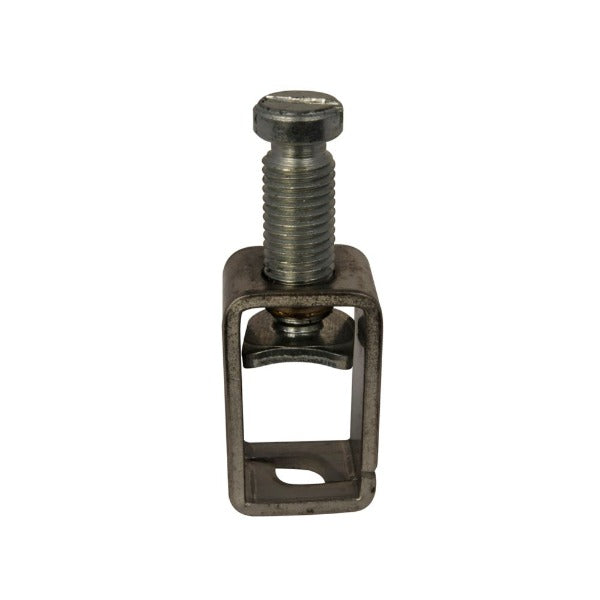

3TA150FB - Eaton Cutler-Hammer 150 Amp Terminal
Eaton molded case circuit breaker accessory line and load terminal, Line and load terminals, 150 A, #4-4/0 AWG Cu/Al, Q18, Frame J-K, Series C, Pressure type line and load
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton molded case circuit breaker accessory line and load terminal |
| CATALOG NUMBER | 3TA150FB |
| UPC | 786679970584 |
| PRODUCT LENGTH/DEPTH | 3.4 in |
| PRODUCT HEIGHT | 0.9 in |
| PRODUCT WIDTH | 1.3 in |
| PRODUCT WEIGHT | 0.07 lb |
| CERTIFICATIONS | UL Listed |
| GLOBAL CATALOG | 3TA150FB |
| PRODUCT TYPE | Molded case circuit breaker accessory |
PRODUCT SPECIFICATIONS
| Amperage Rating |
150 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type line and load
|
| Wire size |
#4-4/0 AWG Cu/Al
|
| Quantity |
18
|
| Type |
Line and load terminals
|
