Description

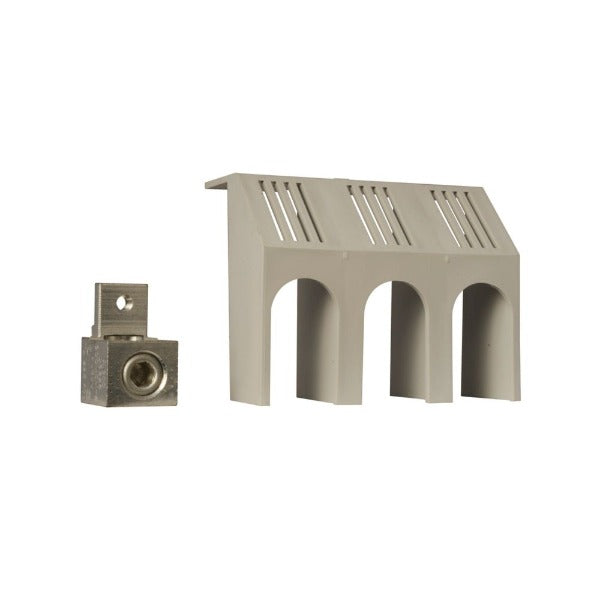

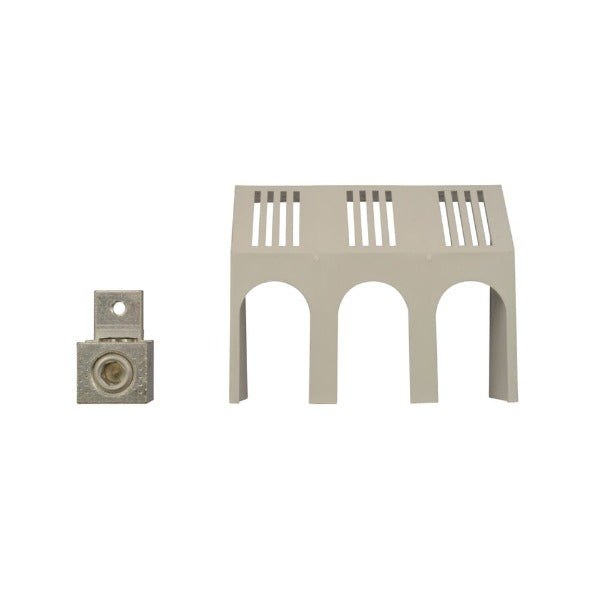

3TA225FDK - Cutler-Hammer 100 Amp 3 Pole Circuit Breaker Lug Terminal
Eaton molded case circuit breaker accessory line and load terminal, Line and load terminals, 225 A, #6 AWG-300 kcmil Cu/Al, Q18, Frame J-K, Series C, Pressure type
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton molded case circuit breaker accessory line and load terminal |
| CATALOG NUMBER | 3TA225FDK |
| UPC | 786679844250 |
| PRODUCT LENGTH/DEPTH | 6.4 in |
| PRODUCT HEIGHT | 4.8 in |
| PRODUCT WIDTH | 4.1 in |
| PRODUCT WEIGHT | 0.7 lb |
| COMPLIANCES | Contact Manufacturer |
| CERTIFICATIONS | UL Listed |
| Global Catalog |
3TA225FDK
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
225 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type
|
| Wire size |
#6 AWG-300 kcmil Cu/Al
|
| Quantity |
18
|
| Type |
Line and load terminals
|
PRODUCT DATASHEET
