Description

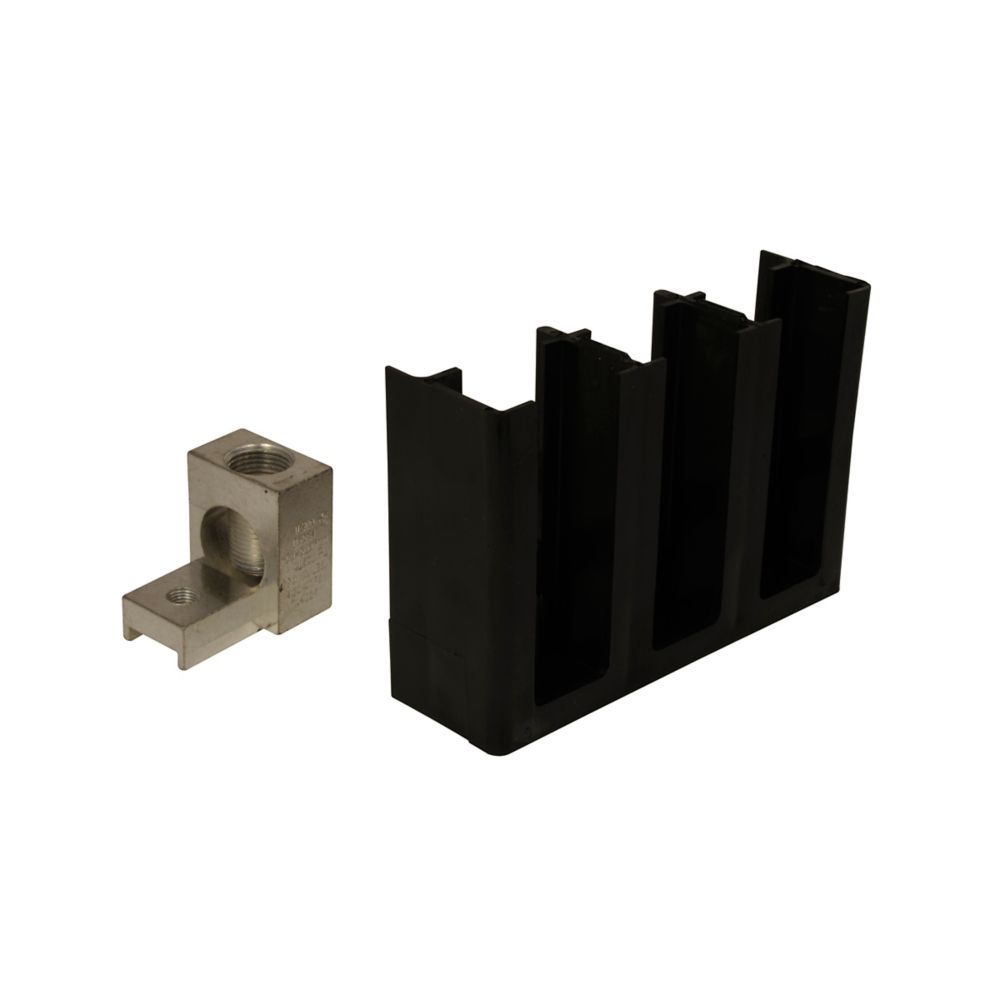

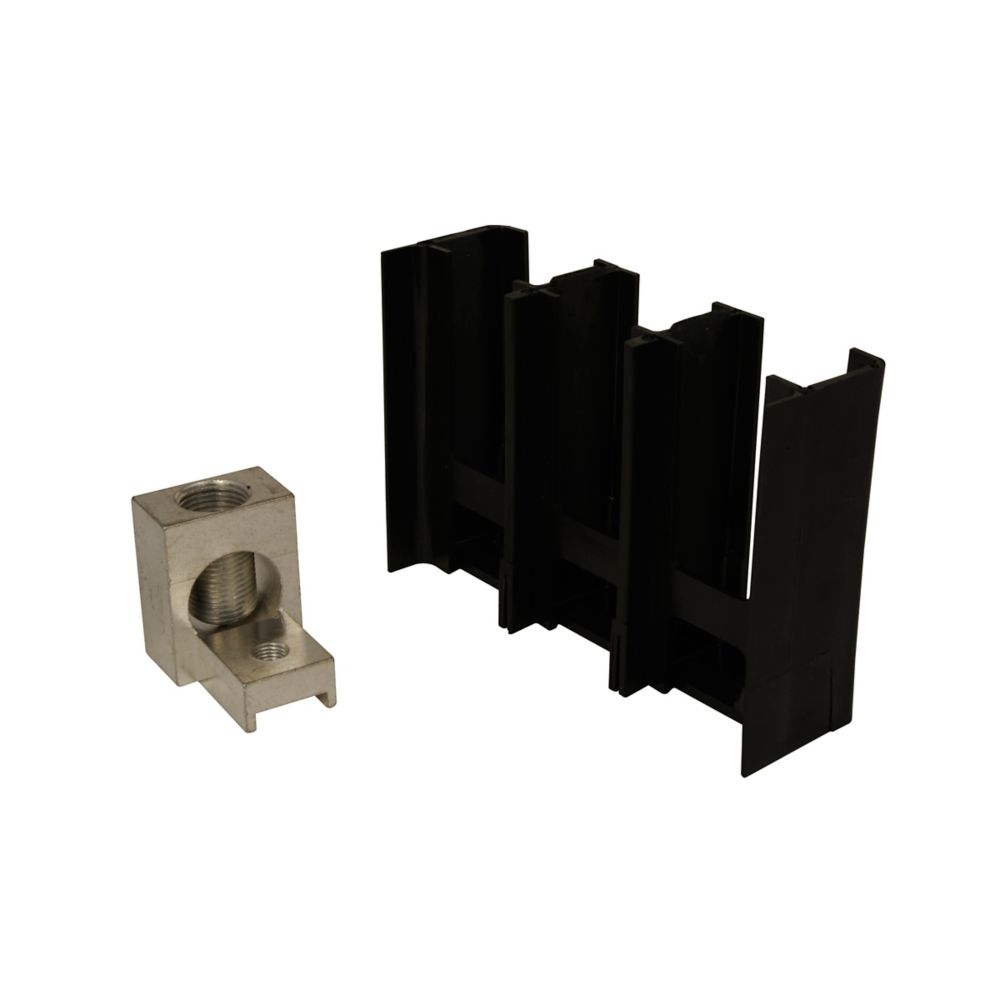

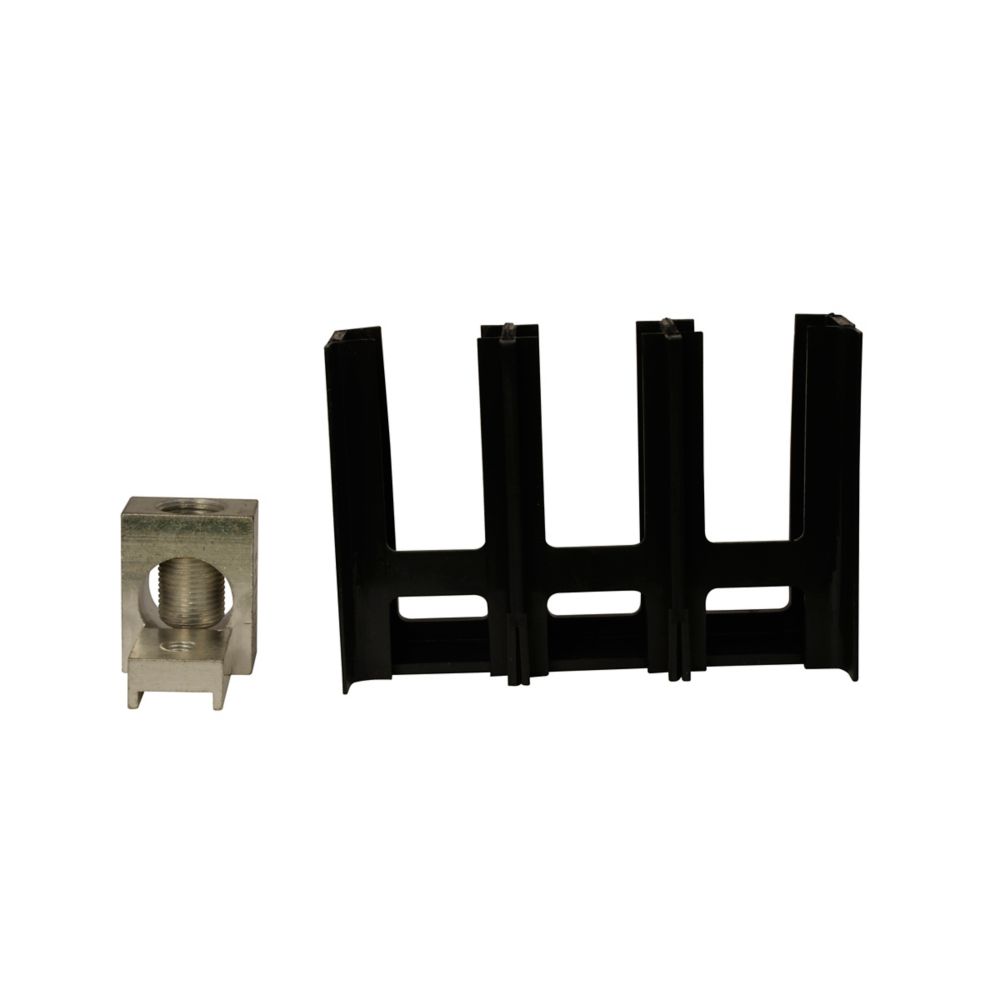

3TA401K - Eaton Cutler Hammer - 400A Molded Case Circuit Breaker Accessory Terminal
The Eaton 3TA401K is a heavy-duty lug kit designed for 400 A K-Frame molded-case circuit breakers. It can handle (2) 2/0-250 kcmil or (1) 2/0-500 kcmil copper/aluminum conductors, making it suitable for large-capacity installations. Constructed with durable aluminum and UL-listed, it ensures secure, high-performance power distribution.
GENERAL SPECIFICATIONS
| Product Name | Eaton molded case circuit breaker accessory terminal |
| Catalog Number | 3TA401K |
| UPC | 786679884010 |
| Product Length/Depth | 7 in |
| Product Height | 5 in |
| Product Width | 4 in |
| Product Weight | 1.05 lb |
| Compliances | Contact Manufacturer |
| Certifications | UL Listed |
| Global Catalog | 3TA401K |
| Product Type | Molded case circuit breaker accessory |
PRODUCT SPECIFICATIONS
| Amperage Rating | 400 A |
| Frame size | Frame J-K |
| Series | Series C |
| Terminals | Pressure type line and load |
| Wire size | (1) 2/0-500 kcmil Cu/Al (2) #2/0 AWG-250 kcmil |
| Number of poles | Three-pole |
| Type | Terminal |
