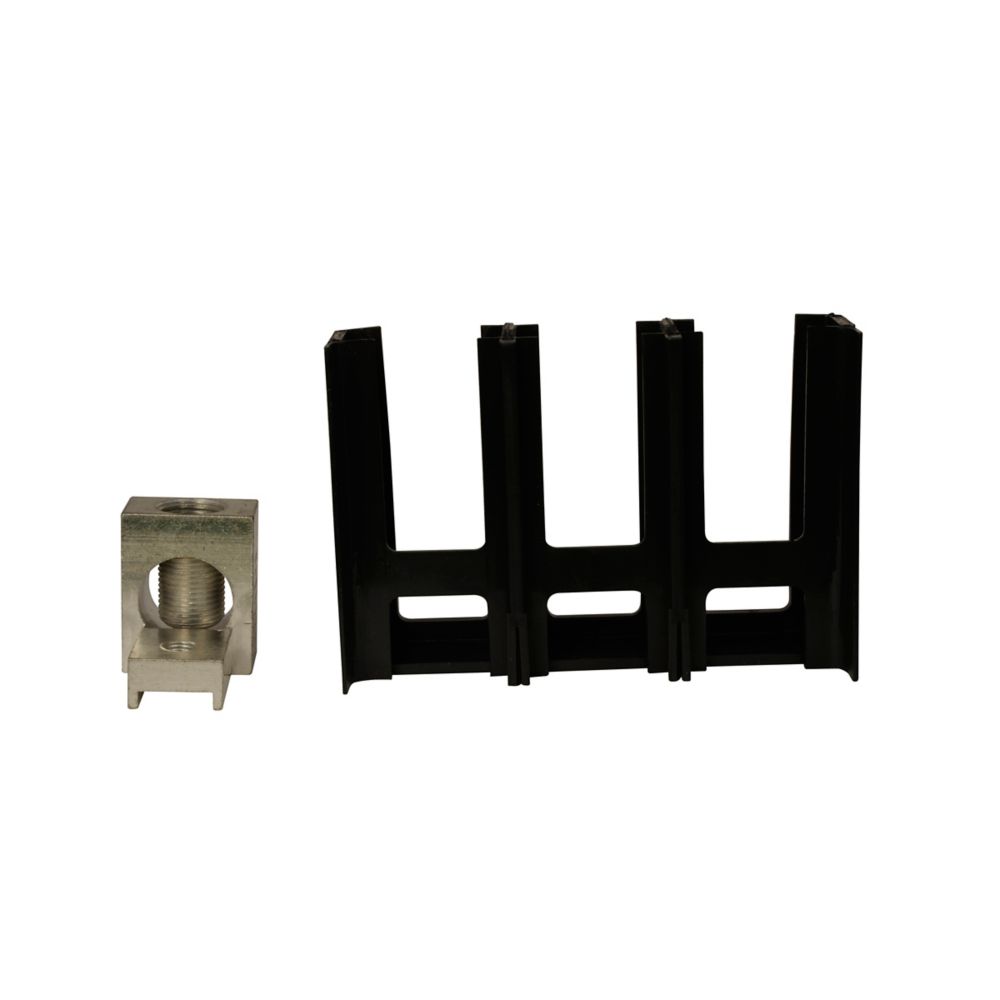

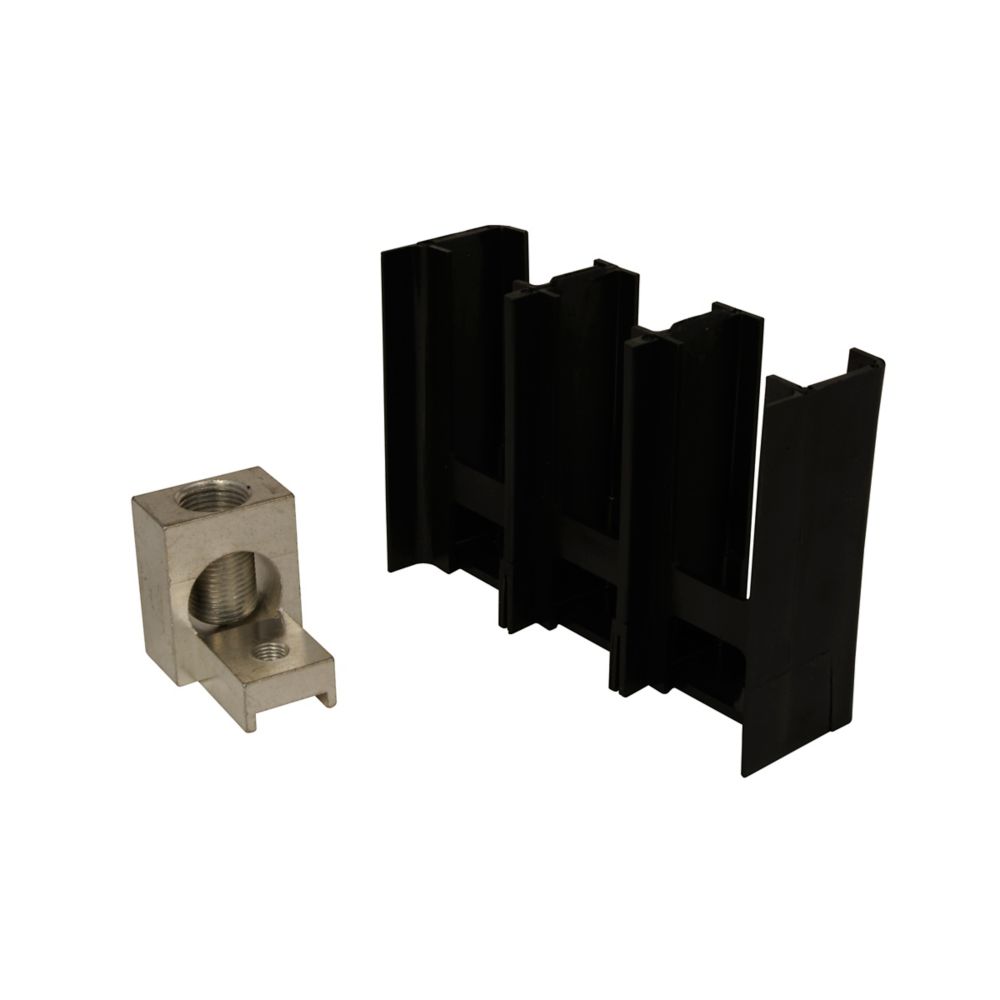

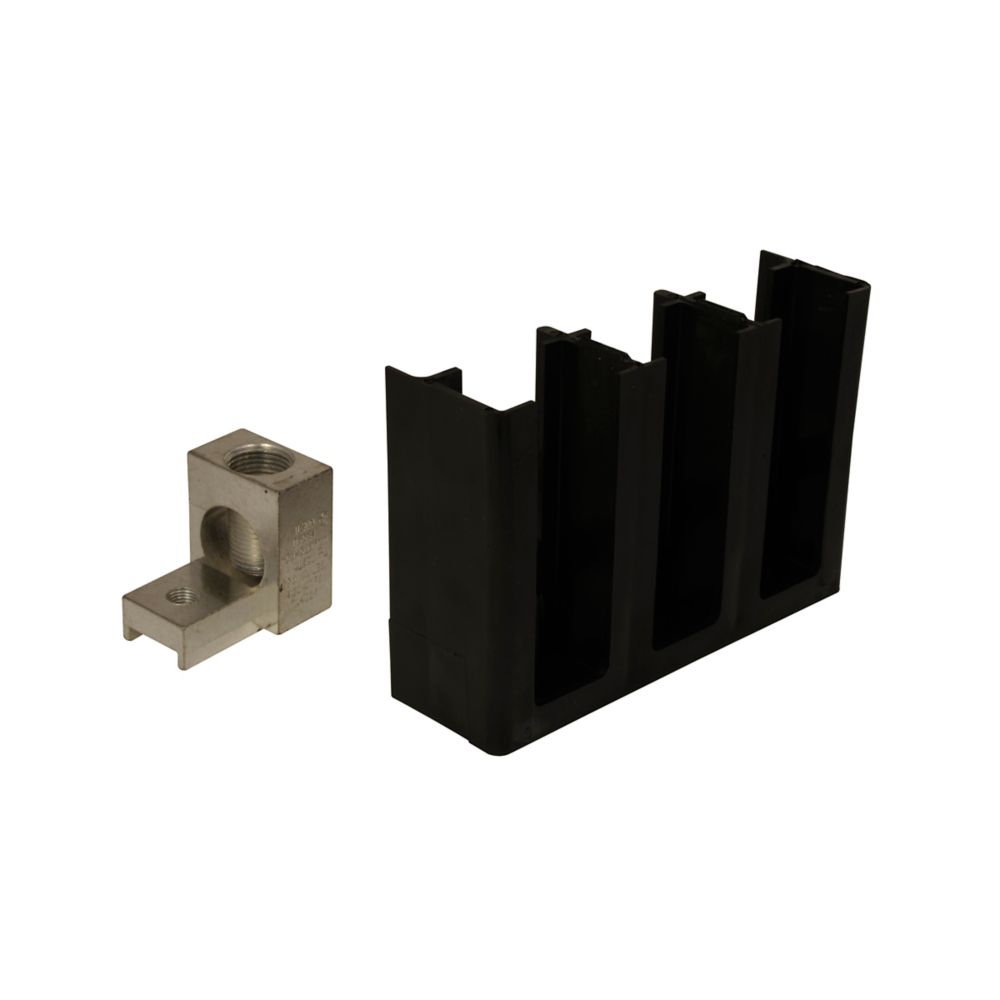

3TA402K - Eaton Cutler Hammer - 400A Molded Case Circuit Breaker Accessory Line and Load Terminal
The Eaton 3TA402K is a molded-case circuit breaker accessory—specifically a line and load terminal lug kit—designed for 400 A applications in Frame J-K, Series C breakers. It accommodates 500–750 kcmil copper or aluminum conductors using pressure-type connections and is UL listed for reliable performance.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory line and load terminal
|
| Catalog Number |
3TA402K
|
| UPC |
786679106792
|
| Product Length/Depth |
6.2 in
|
| Product Height |
4.6 in
|
| Product Width |
3.8 in
|
| Product Weight |
1.1 lb
|
| Compliances |
Contact Manufacturer
|
| Certifications |
UL Listed
|
| Global Catalog |
3TA402K
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
400 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type line and load
|
| Wire size |
500-750 kcmil Cu/Al
|
| Number of poles |
Three-pole
|
| Type |
Terminal
|
