Description

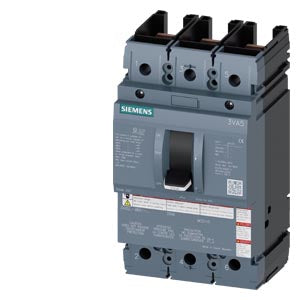

3VA52250BB310AA0 - Siemens 250A 3-Pole 480V 3VA UL Molded Case Circuit Breaker, 65kA, No Lugs
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE SWITCH WITH SELF-PROTECTING INSTANTANEOUS TRIP UNIT. 3VA52 FRAME. 250A 3-POLE (65KA AT 480V). SPECIAL FEATURES: WITHOUT LUGS. DIMENSIONS (W x H x D) IN: 4.1 x 7.3 x 4.2.
TECHNICAL SPECIFICATIONS
Product related
| Article number | 3VA52250BB310AA0 |
| EAN | 4042948868331 |
| UPC | 804766318498 |
| Commodity Code | 85362090 |
Pricing related
| Price Group | M1A |
| Metal Factor |
LOA----- |
Delivery related
| Export Control Regulations | AL : N / ECCN : 9N9999 |
| Standard delivery time | 10 Day/Days |
| Packaging dimensions (L x W x H) | 9.646 x 5.906 x 6.299 inch |
| Net weight | 4.392 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 01/01/2016 |
| SCIP Number | not available |
Siemens specific
| Product Group | 5385 |
| Catalog ID | LV10 |
| Group Code | P360 |
| Country of origin | Czech Republic |
| Returnable Status | Yes |
PRODUCT DATASHEET
3VA52250BB310AA0
