Description

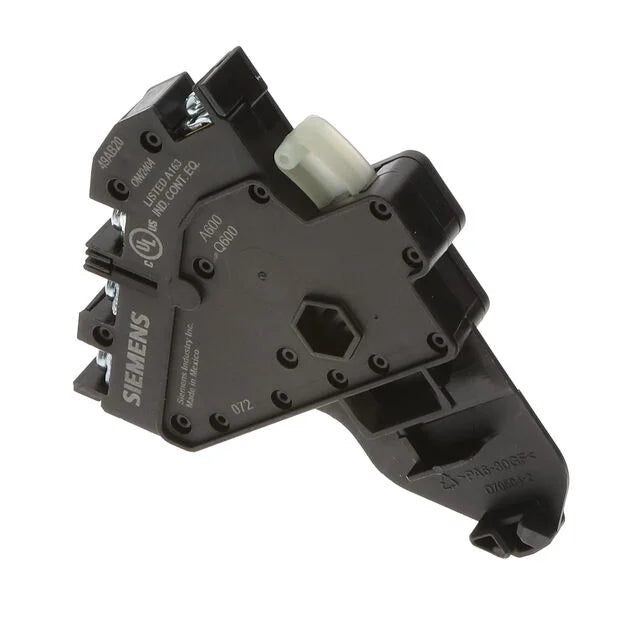

49AB20 - Siemens - Contactor and Motor Starter Auxiliary
The Siemens 49AB20 is an auxiliary contact with a current rating of 10 Amps and a voltage rating of 600VAC. It features with 49A frame type. The 49AB20 has a snap-on mounting type and it is used for class 14, 17, 18, 22, 25 26, 30, 32, 36, 37, 40, 43, 84,88, 87 size 00-4 motor starters and contactors.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2: 49AB20 |
| MFN | 49AB20 |
| UPC | 783087631144 |
| Commodity Code | 8538908080 |
Pricing related
| Price Group | UVP |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 18 Day/Days |
| Packaging dimensions (L x W x H) |
0.62 x 0.15 x 0.47 inch |
| Net weight | 0.088 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | No |
| Compliance with the substance restrictions according to RoHS directive | not available |
| SCIP Number | not available |
Siemens specific
| Product Group | 3559 |
| Catalog ID | CC-IC10 |
| Group Code | R711 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
