500BOD930 - Allen-Bradley - NEMA Three-Phase Contactor
Roll over image to zoom in Click on image to zoom
500BOD930 - Allen-Bradley - NEMA Three-Phase Contactor

500BOD930 - Allen-Bradley - NEMA Three-Phase Contactor

Allen-BradleySKU: AB500BOD930
Price:
$3,906.00
Stock:
Sold out

Description

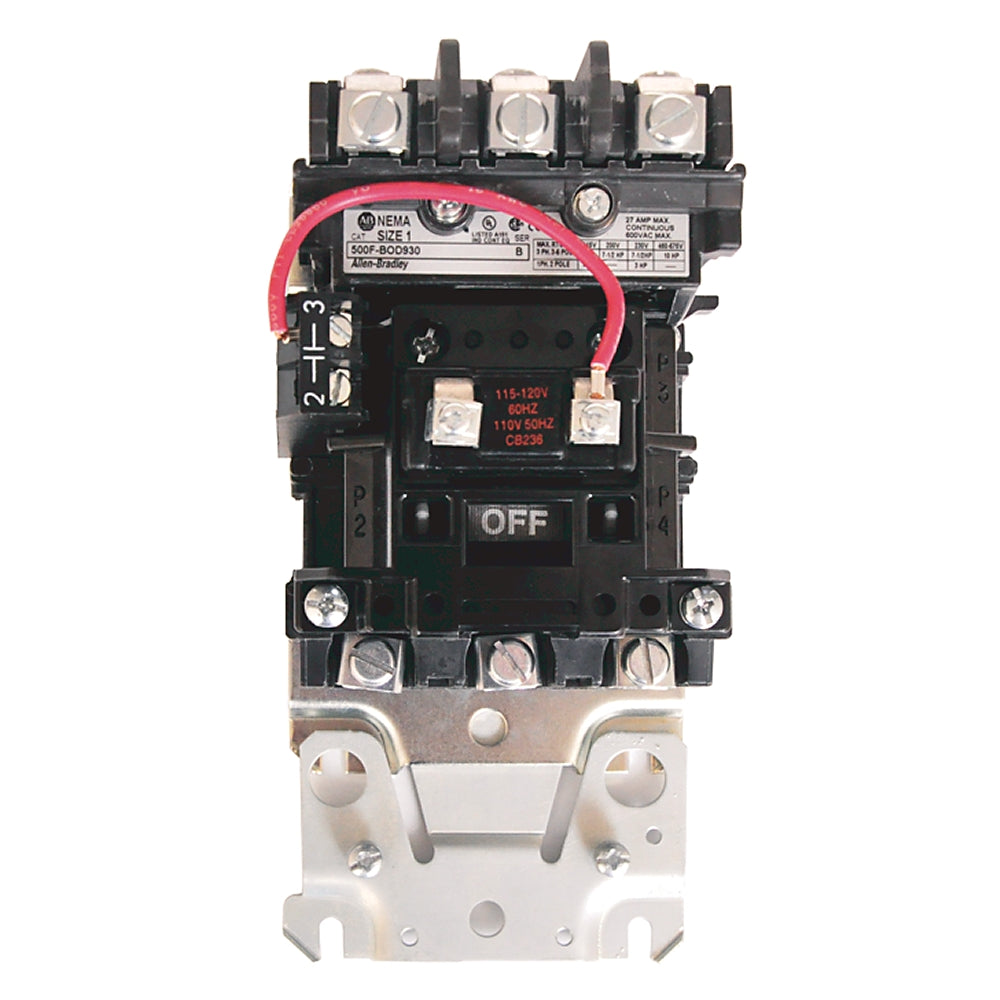

500BOD930 - Allen-Bradley - NEMA Three-Phase Contactor

500-BOD930 – NEMA motor contactor used for switching and controlling motor loads.

TECHNICAL SPECIFICATIONS

Electrical

Voltage type for actuating
AC
Rated control supply voltage at AC 50 Hz
110 V
Rated control supply voltage at AC 60 Hz
120 V
Type of electrical connection of main circuit
Screw connection
Service limit current rating
32 A
Continuous current
27 A
Heat dissipation
5.9 W
Circuit closing inrush current peak including offset, max
288 A
NEMA size
Size 1
Capacitor switching kVAR
6 kVAR @ 230V load voltage, 3-phase
Pole configuration
3 power poles with 1 NO auxiliary contact
Operating volt amperes burden
Sealed: 29VA, 60 Hz coils
Hp rating, max
7.5Hp @ 230V load voltage, 3-phase (non-plugging and non-jogging duty)
Transformer primary switching kVA rating
8.5 kVA @ 460V load voltage, 3-phase (inrush current ≤20 times continuous current)
Modular version
True
Coil operating limits
85 %



Mechanical

Number of auxiliary contacts, max
8
Mechanical life operations
1.0E7
Average operating time, pick-up
22 ms
Average operating time, drop-out
14 ms

Construction

Required torque on power terminal wire clamps and pressure connectors or lugs
20 in-lb
Type of power terminal
Saddle or wire clA
Wire size
For power terminals: 14...8 AWG
Enclosure
Open Type
Power contact material
Silver Alloy
Auxiliary contact material
Silver
Requirements for sizing of wire
All wire rated 167 °F (75 °C) or higher must be sized per the local electrical code for 167 °F (75 °C) wire



Environmental

Operating position
Vertical
Altitude
10000 ft before derating
Operating temperature
-13 to 149 °F (-25 to 65 °C) @ starters with eutectic alloy overload relay, -13 to 131 °F (-25 to 55 °C) @ starters with electronic overload relay, (provided condensation is prevented)
Corrosion-resistance
All metal parts are treated for corrosion-resistance



PRODUCT DATASHEET

500BOD930
