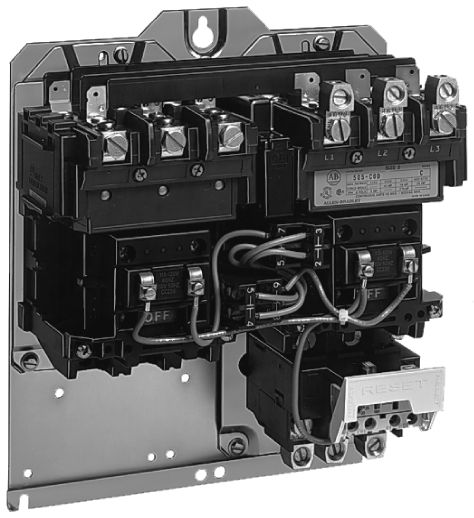

505COD - Allen-Bradley - NEMA Size 2 Reversing Starter
Roll over image to zoom in Click on image to zoom
505COD - Allen-Bradley - NEMA Size 2 Reversing Starter

505COD - Allen-Bradley - NEMA Size 2 Reversing Starter

Allen-BradleySKU: AB505COD
Price:
$2,240.00
Stock:
Sold out

Description

505COD - Allen-Bradley - NEMA Size 2 Reversing Starter

505-COD – Reversing motor starter designed to control forward and reverse motor operation.

General

Sub Brand
NEMA



Electrical

Voltage type for actuating
AC
Suitable for emergency stop
True
External reset possible
True
With short-circuit release
True
Rated control supply voltage at AC 60 Hz
115 V
Type of motor starter
Reversing starter
Service limit current rating
52 A
Continuous current
45 A
Circuit closing inrush current peak including offset, max
483 A
Heat dissipation
5.9 W (4...5 poles)
Coil operating limits
85...110% (4...5 poles)
Operating volt amperes burden
Sealed: 58VA, 60 Hz coils (4...5 poles)
Hp rating, max
7.5Hp @ 230V load voltage, 1-phase (non-plugging and non-jogging duty)
Transformer primary switching kVA rating
8.9 kVA @ 575V load voltage, 3-phase (inrush current = 20...40 times continuous current)
Capacitor switching kVAR
31 kVAR @ 575V, 3-phase (If maximum available current (at capacitor terminals) is greater than 3000 A, contact your local Rockwell Automation sales office, Allen‑Bradley distributor, or NEMA ICS-2 standard)
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection



Mechanical

Number of auxiliary contacts, max
8
Mechanical life operations
5000000
Operating time, drop-out
20 ms
Operating time, pick-up
27 ms
Enclosure type
Open



Construction

Required torque on power terminal wire clamps and pressure connectors or lugs
275 in-lb
Auxiliary contact material
Silver
Type of power terminal
Pressure terminals
Wire size
For power terminals: 6...4 AWG
Power contact material
Silver alloy
Requirements for sizing of wire
All wire rated 167 °F (75 °C) or higher must be sized per the local electrical code for 167 °F (75 °C) wire



Environmental

NEMA size
Size 2
Operating position
Vertical
Altitude
10000 ft before derating
Operating temperature
Starters with eutectic alloy overload relay (provided condensation is prevented): -13...149 °F (-25...65 °C)
Overload relay
Eutectic alloy overload relay
Corrosion-resistance
All metal parts are treated for corrosion-resistance

PRODUCT DATASHEET

505-COD
