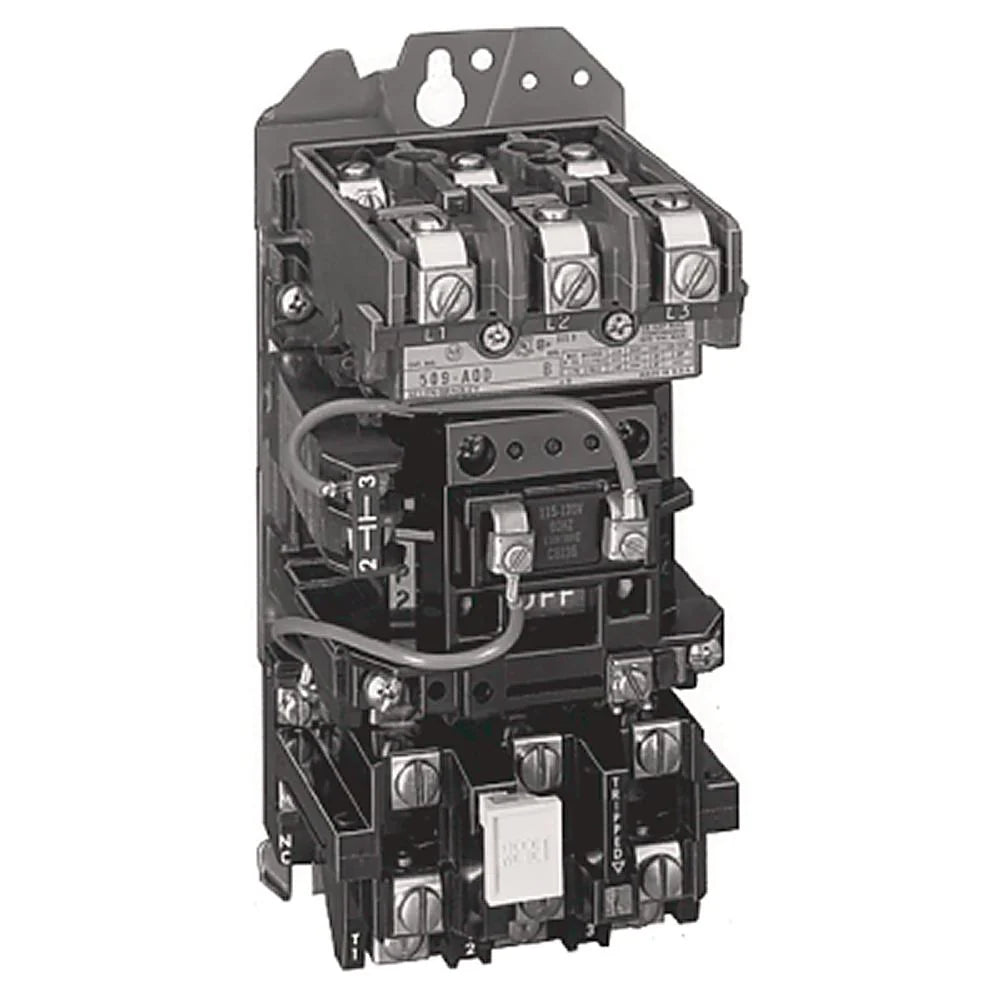

509COD - Allen-Bradley - NEMA Non-Reversing Starter
This NEMA Size 1 non-reversing starter is rated for up to 27A at 600V AC. It provides dependable motor control with a 3-pole design and open enclosure. The 509COD includes a 120V AC coil, ideal for industrial starters.
TECHNICAL SPECIFICATIONS
Electrical
| Number of indicator lights | 0 |
|---|---|
| Voltage type for actuating | AC |
| With transformer | False |
| Suitable for emergency stop | True |
| External reset possible | True |
| With short-circuit release | True |
| With fuse | False |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Release class | CLASS 30 |
| Type of motor starter | Direct online starter (DOL) |
| Service limit current rating | 52 A |
| Continuous current | 45 A |
| Circuit closing inrush current peak including offset, max | 483 A |
| Heat dissipation | 5.9 W (4...5 poles) |
| Coil operating limits | 85...110% (4...5 poles) |
| Operating volt amperes burden | Sealed: 38VA, 60 Hz coils (4...5 poles) |
| Hp rating, max | 7.5Hp @ 230V load voltage, 1-phase (non-plugging and non-jogging duty) |
| Transformer primary switching kVA rating | 8.9 kVA @ 575V load voltage, 3-phase (inrush current = 20...40 times continuous current) |
| Capacitor switching kVAR | 31 kVAR @ 575V, 3-phase (If maximum available current (at capacitor terminals) is greater than 3000 A, contact your local Rockwell Automation sales office, Allen-Bradley distributor, or NEMA ICS-2 standard) |
| Temperature compensated overload protection | True |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
Mechanical
| Rail mounting possible | True |
|---|---|
| Number of auxiliary contacts, max | 8 |
| Mechanical life operations | 1.0E7 |
| Average operating time, pick-up | 27 ms |
| Average operating time, drop-out | 13 ms |
Construction
| Required torque on power terminal wire clamps and pressure connectors or lugs | 45 in-lb |
|---|---|
| Auxiliary contact material | Silver |
| Type of power terminal | Pressure terminals |
| Wire size | For power terminals: 14...4 AWG |
| Enclosure | Open type |
| Power contact material | Silver Alloy |
| Requirements for sizing of wire | All wire rated 167 degF (75 degC) or higher must be sized per the local electrical code for 167 degF (75 degC) wire |
Environmental
| NEMA size | Size 2 |
|---|---|
| Operating temperature | 65 degC |
| Operating position | Vertical |
| Altitude | 10000 ft before derating |
| Overload relay | Eutectic alloy overload relay |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
