509FOD - Allen-Bradley - NEMA 3 Phase Non-Reversing Starter
Roll over image to zoom in Click on image to zoom

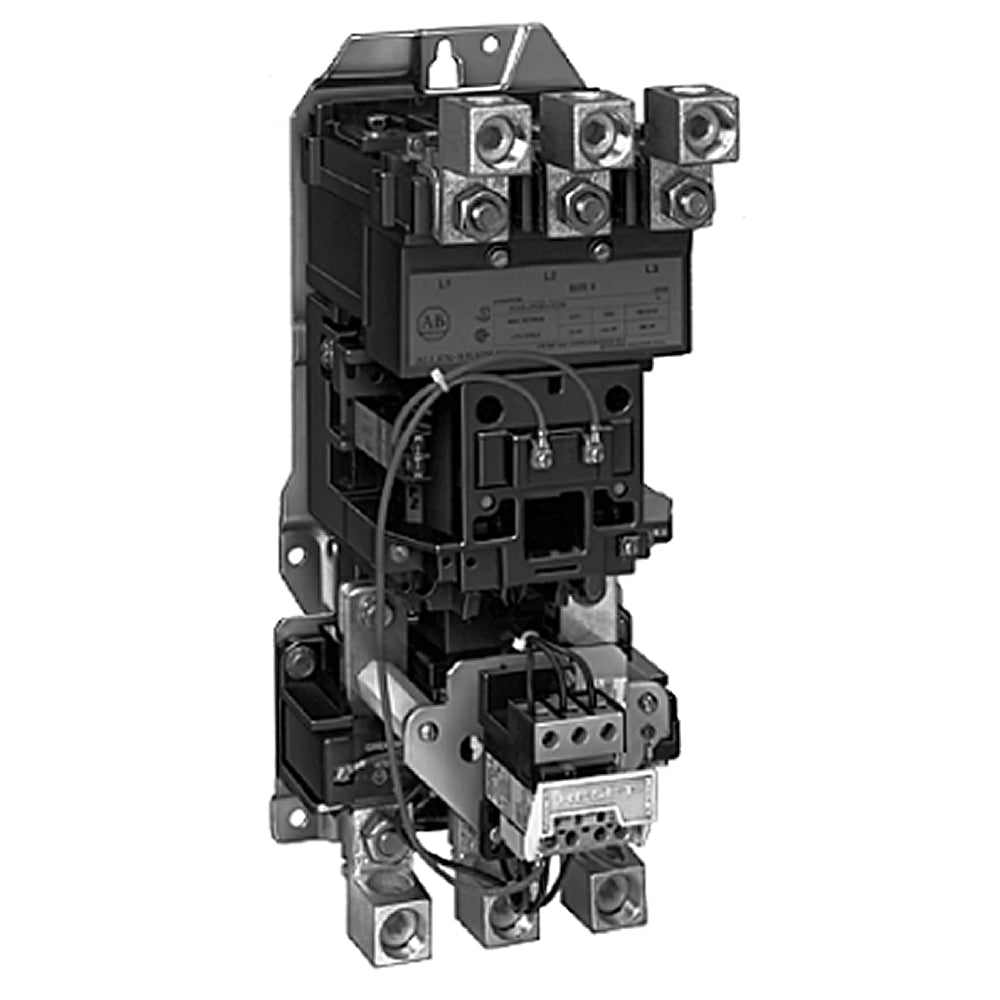

509FOD - Allen-Bradley - NEMA 3 Phase Non-Reversing Starter

509FOD - Allen-Bradley - NEMA 3 Phase Non-Reversing Starter

Allen-BradleySKU: AB509FOD
Price:
$7,073.00
Stock:
Sold out

Description

509FOD - Allen-Bradley - NEMA 3 Phase Non-Reversing Starter

509-FOD – A NEMA 3-phase non-reversing motor starter used for direct on-line starting of motors with built-in overload protection and auxiliary contacts for control circuits.

TECHNICAL SPECIFICATIONS

Electrical

Number of indicator lights
0
Voltage type for actuating
AC
With transformer
False
Suitable for emergency stop
True
External reset possible
True
With short-circuit release
True
With fuse
False
Rated control supply voltage at AC 50 Hz
110 V
Rated control supply voltage at AC 60 Hz
120 V
Release class
CLASS 30
Type of motor starter
Direct online starter (DOL)
Service limit current rating
312 A
Continuous current
270 A
Circuit closing inrush current peak including offset, max
3163 A
Heat dissipation
19.8 W (series L)
Coil operating limits
85...110% (series L)
Operating volt amperes burden
Sealed: 96VA, 60 Hz coils (series L)
Hp rating, max
75Hp @ 230V load voltage, 3-phase (plugging and jogging duty)
Transformer primary switching kVA rating
94 kVA @ 460V load voltage, 3-phase (inrush current ≤20 times continuous current)
Capacitor switching kVAR
80 kVAR @ 230V, 3-phase (If maximum available current (at capacitor terminals) is greater than 3000 A, contact your local Rockwell Automation sales office, Allen‑Bradley distributor, or NEMA ICS-2 standard)
Temperature compensated overload protection
True
Coordination class according to IEC 60947-4-3
Class 2
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection


Mechanical

Rail mounting possible
True
Number of auxiliary contacts, max
8
Mechanical life operations
5000000
Average operating time, pick-up
25 ms
Average operating time, drop-out
18 ms


Construction

Required torque on power terminal wire clamps and pressure connectors or lugs
375 in-lb
Auxiliary contact material
Silver
Type of power terminal
Pressure terminals
Wire size
For power terminals: 4 AWG...500 MCM
Enclosure
Open type
Power contact material
Silver Alloy
Requirements for sizing of wire
All wire rated 167 °F (75 °C) or higher must be sized per the local electrical code for 167 °F (75 °C) wire


Environmental

NEMA size
Size 5
Operating temperature
65 °C
Operating position
Vertical
Altitude
10000 ft before derating
Overload relay
Eutectic alloy overload relay
Corrosion-resistance
All metal parts are treated for corrosion-resistance



PRODUCT DATASHEET

509FOD
