Description

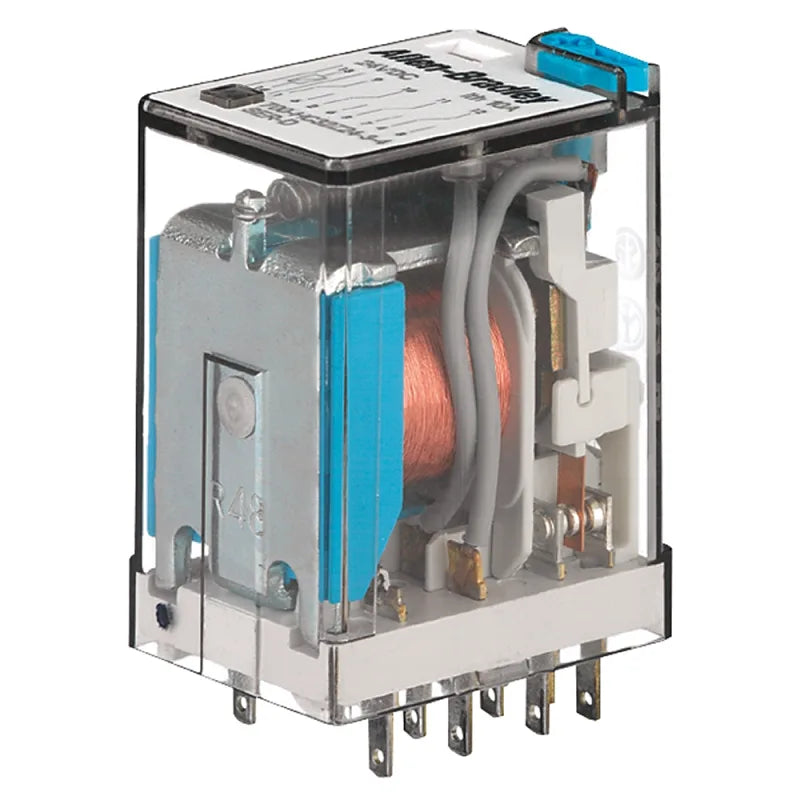

700HC24A1 - Allen-Bradley - 120V 50/60Hz GP Ice Cube Relay
The 700-HC24A1 is a control relay with a 120 VAC coil and 4-pole switching capability. It supports high switching cycles and is suited for various control and indication tasks. The relay provides stable operation in a compact housing.
TECHNICAL SPECIFICATIONS
Electrical
| Number of contacts as change-over contact | 4 |
|---|---|
| Nominal current | 7 A |
| Complete with socket | False |
| With LED indication | False |
| Voltage type for actuating | AC |
| Rated control supply voltage at AC 50 Hz | 120 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated control supply voltage at DC | 0 V |
| Type of electric connection | Plug-in Connection |
| Rated thermal current (Ith) | 0.291666666666667 |
| Electrical life cycle | 100000 minimum |
Mechanical
| With detachable clamps | False |
|---|---|
| With forced-guided contacts | False |
| Degree of protection (IP) | IP20 |
| Mechanical life operations | DC: 50000000 |
| List of degrees of protection (IP) | IP20 with guarded terminal socket |
Construction
| Width | 27.7 mm |
|---|---|
| Height | 37.2 mm |
| Depth | 20.7 mm |
| Contact material | AgNi |
| Material of contact surface | Other |
Environmental
| Operating temperature | -30 °C |
|---|---|
| Storage temperature | -55 °C |
