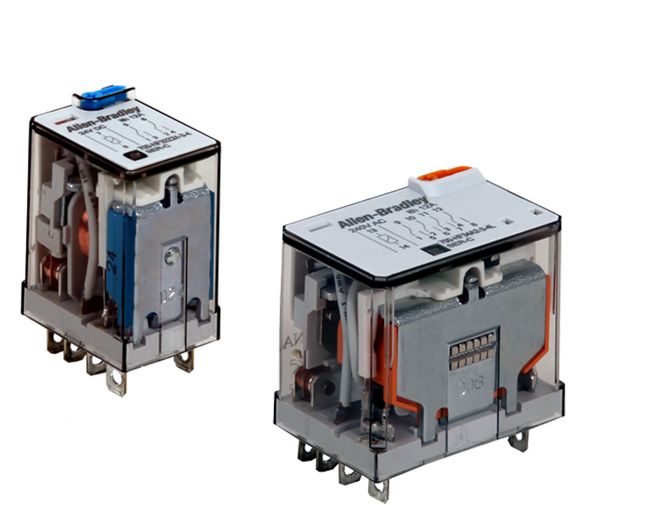

700HF34A1 - Allen-Bradley - GP Short Square Base Relay
Roll over image to zoom in Click on image to zoom
700HF34A1 - Allen-Bradley - GP Short Square Base Relay

700HF34A1 - Allen-Bradley - GP Short Square Base Relay

Allen-BradleySKU: AB700HF34A1
Price:
$0.00
Stock:
Sold out

Description

700HF34A1 - Allen-Bradley - GP Short Square Base Relay

700-HF34A1 – A general-purpose square-base relay in the Bulletin 700 family used for control and switching applications with multiple change-over contacts. (inferred from similar HF34 series relays)

TECHNICAL SPECIFICATIONS

Electrical

Number of contacts as change-over contact
4
Nominal current
12 A
Complete with socket
False
With LED indication
False
Voltage type for actuating
AC
Rated control supply voltage at AC 50 Hz
120 V
Rated control supply voltage at AC 60 Hz
120 V
Type of electric connection
Plug-in connection
Contact rating
12 A standard contact

Mechanical

With detachable clamps
False
With forced-guided contacts
False
Degree of protection (IP)
Other
Shock
15 G
Vibration
15 G
List of degrees of protection (IP)
IP20 with guarded terminal socket

Construction

Width
40.8 mm
Height
44.1 mm
Depth
27.7 mm
Contact material
AgCdO
Material of contact surface
Other

Environmental

Operating temperature
-40 °C
Storage temperature
-50 °C



PRODUCT DATASHEET

700HF34A1
