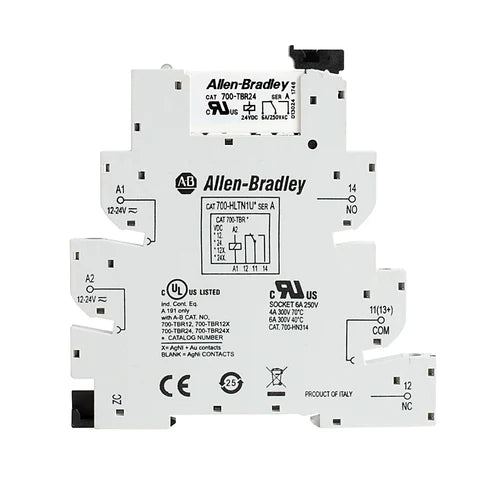

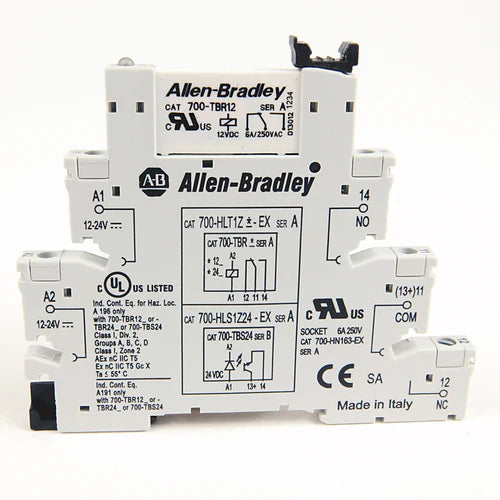

700HLT1Z24 - Allen-Bradley - 24V DC GP Terminal Block Relay
The 700-HLT1Z24 is a terminal block relay with a 24 V DC coil and single SPDT contact configuration. It includes an LED indicator and screw terminals for quick installation. This relay is ideal for low-voltage control and signal switching applications.
TECHNICAL SPECIFICATIONS
General
| Contact Type | Standard Silver Contacts |
|---|
Electrical
| Number of contacts as change-over contact | 1 |
|---|---|
| Nominal current | 6 A |
| Complete with socket | True |
| With LED indication | True |
| Voltage type for actuating | DC |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Rated control supply voltage at DC | 24 V |
| Type of electric connection | Screw connection |
| Rated thermal current (Ith) | 0.25 |
| Power consumption | 0.5 W @ DC, 2-poles |
| Electrical life cycle | 6 A resistive: 100000 minimum, 1 A inductive: 200000 minimum @ 24V DC @ 1A inductive: 300000 minimum @ 120V AC |
Mechanical
| With detachable clamps | True |
|---|---|
| With forced-guided contacts | False |
| Degree of protection (IP) | IP20 |
Environmental
| Operating temperature | -40 °C |
|---|---|
| Storage temperature | -40 °C |
Construction
| Contact material | Silver tin Ox, AgSnO2 (SPDT) & AgNi 90/10 (DPDT) |
|---|---|
| Material of contact surface | Other |
PRODUCT DATASHEET
