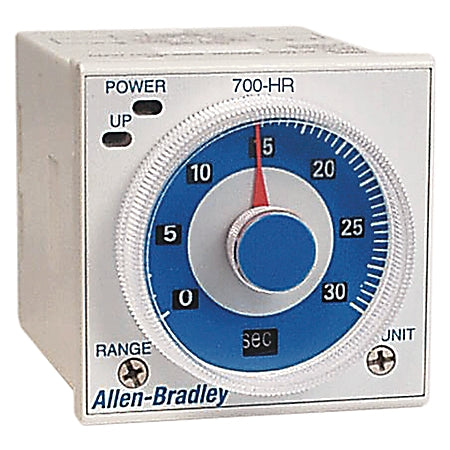

700HR52TA17 - Allen-Bradley - Tube Base Dial Timing Relay
The 700-HR52TA17 is a heavy-duty control relay designed for high-load switching applications. It features multiple contact poles and high current capacity. This relay is used in power distribution and motor control panels.
TECHNICAL SPECIFICATIONS
General
| Timing Range | 0.05 s to 300 hr |
|---|
Mechanical
| Nominal current | 5 A |
|---|---|
| Suitable for DIN rail (top hat rail) mounting | False |
| Degree of protection | IP40 (panel surface) |
| Shock resistance | Malfunction: 100 m/s² (approximate 10 G) |
| Vibration resistance | Malfunction: 10...55 Hz with 0.5 mm double Alitude each in three directions for ten minutes each |
| Dielectric strength | Pole-to-pole: 2000V AC @ 50/60Hz for 1 min |
| Suitable for front mounting | False |
| With plug-in socket | False |
Construction
| Width | 48 mm |
|---|---|
| Height | 48 l/s |
| Depth | 81.5 mm |
Electrical
| Voltage type for actuating | AC/DC |
|---|---|
| Rated control supply voltage at AC 50 Hz | 100 V |
| Rated control supply voltage at AC 60 Hz | 100 V |
| Rated control supply voltage at DC | 100 V |
| Type of electric connection | Plug-in connection |
| Rated thermal current (Ith) | 0.208333333333333 |
| Power consumption | Output ON: 2.1VA @ 240V AC |
| Electrical life cycle | Minimum 100000 ops (5A @ 250V AC, resistive load at 1800 ops/hr) |
Environmental
| Operating temperature | -10 °C |
|---|---|
| Storage temperature | -25 °C |
PRODUCT DATASHEET
