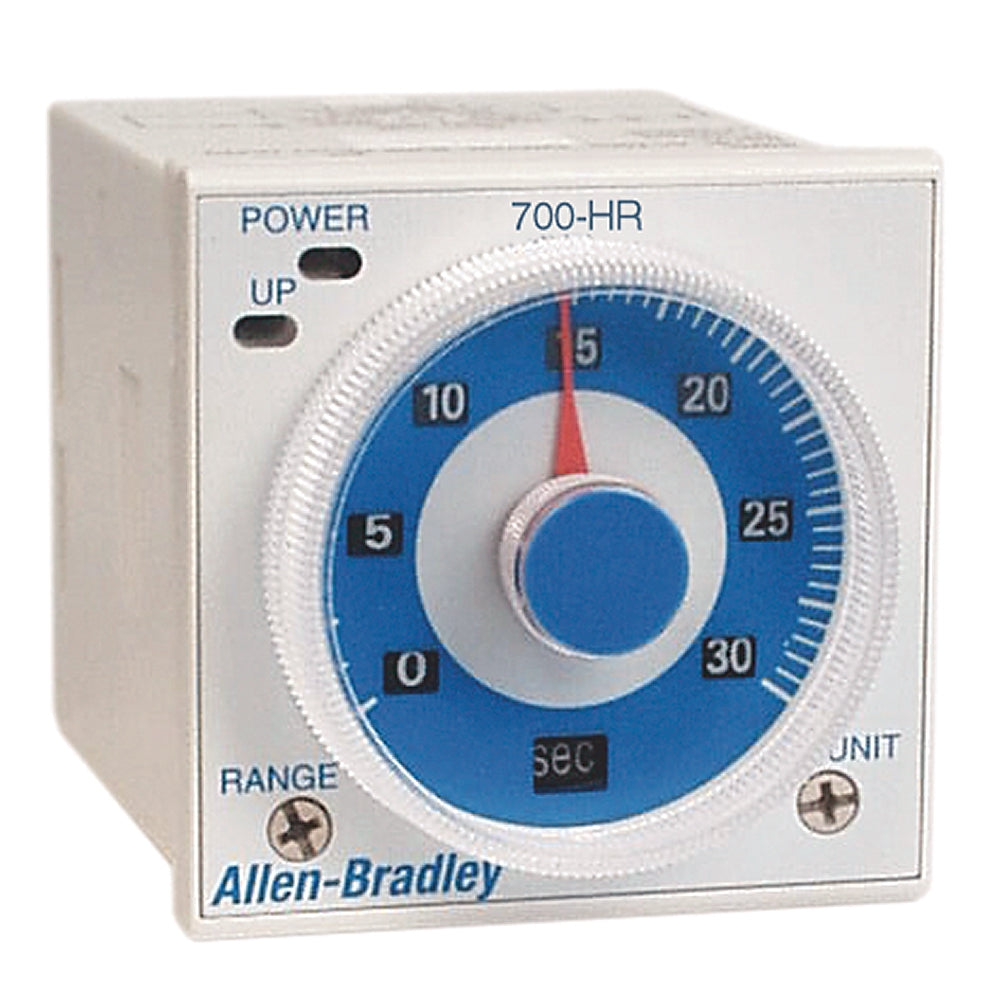

700HRM12TA17 - Allen-Bradley - Tube Base Dial Timing Relay
The 700-HRM12TA17 is a relay module offering multiple pole contact switching and reliable coil performance. It is built to withstand high switching frequencies in demanding industrial environments. Ideal for use in machinery and automation systems.
TECHNICAL SPECIFICATIONS
General
| Timing Range | 0.05 s to 300 hr |
|---|
Mechanical
| Nominal current | 5 A |
|---|---|
| Suitable for DIN rail (top hat rail) mounting | False |
| Degree of protection | IP40 (panel surface) |
| Shock resistance | Malfunction: 100 m/s² (approximate 10 G) |
| Vibration resistance | Malfunction: 10...55 Hz with 0.5 mm double Alitude each in three directions for ten minutes each |
| Dielectric strength | Pole-to-pole: 2000V AC @ 50/60Hz for 1 min |
| Suitable for front mounting | False |
| With plug-in socket | False |
| Function delay-on energization | True |
Construction
| Width | 48 mm |
|---|---|
| Height | 48 l/s |
| Depth | 81.5 mm |
Electrical
| Voltage type for actuating | AC/DC |
|---|---|
| Rated control supply voltage at AC 50 Hz | 100 V |
| Rated control supply voltage at AC 60 Hz | 100 V |
| Rated control supply voltage at DC | 100 V |
| Type of electric connection | Plug-in connection |
| Rated thermal current (Ith) | 0.208333333333333 |
| Power consumption | Output ON: 2.1VA @ 240V AC |
| Electrical life cycle | Minimum 100000 ops (5A @ 250V AC, resistive load at 1800 ops/hr) |
Environmental
| Operating temperature | -10 °C |
|---|---|
| Storage temperature | -25 °C |
PRODUCT DATASHEET
