Description

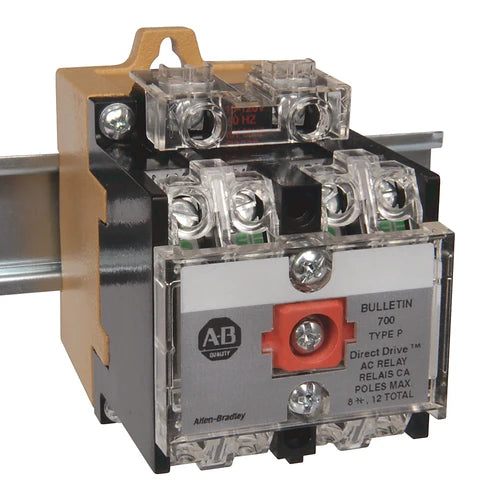

700P400A1 - Allen-Bradley - 600v Industrial Relay
The 700-P400A1 is a plug-in relay module used for signal isolation and interface control. It is compact and supports fast response times. Commonly used in PLC input/output connections.
TECHNICAL SPECIFICATIONS
Electrical
| Voltage type for actuating | AC |
|---|---|
| Interface | False |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 115 V |
| Mounting method | DIN-rail/screw |
| Contact rating, continuous | 10A @ 600V AC |
| Mounting | Panel, strip mount, or DIN rail horizontal mounting recommended |
| With LED indication | False |
Environmental
| Operating temperature | -20 °C |
|---|---|
| Storage temperature | -40 °C |
Mechanical
| Contact material | Silver Nickel |
|---|---|
| Wire size | #18 AWG...(2) #12 AWG per UL/CSA |
| Suitable for manual operation | False |
