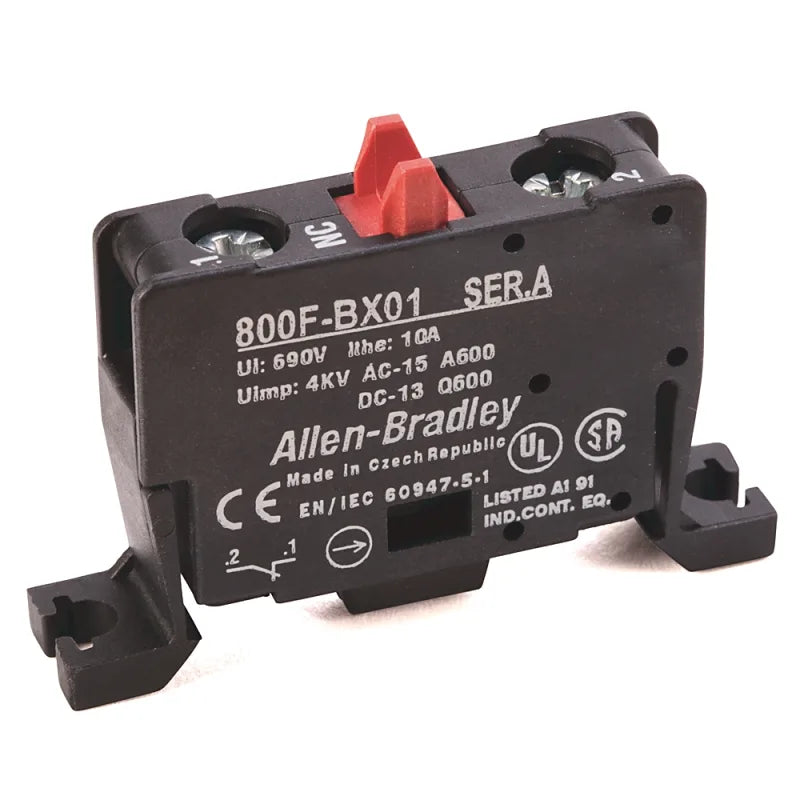

800FBX01 - Allen-Bradley - 22mm Contact Block 800F PB
The 800F-BX01 is a contact block extender used with push buttons and selector switches. It provides additional contact positions without expanding the mounting footprint. Ideal for applications requiring extra auxiliary contacts.
TECHNICAL SPECIFICATIONS
General
| Type | 22mm Contact Block |
|---|
Electrical
| Number of contacts as normally closed contact | 1 |
|---|---|
| Contact block configuration | 1 NC |
| Contact block type | Standard |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block thermal current rating | 10 A |
Construction
| Contact block mounting style | Base |
|---|---|
| Termination style | Screw |
| Packaging | Standard pack (1 per package) |
Mechanical
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
|---|---|
| Vibration | 10 g |
| Shock | 100 g |
| Operator mounting hole dimension | 22.5 mm |
| Contact block durability | 1.0E7 |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
PRODUCT DATASHEET
