800HFPX6D4 - Allen-Bradley - Type 7&9 Push-Pull Unit 800H PB
Roll over image to zoom in Click on image to zoom
800HFPX6D4 - Allen-Bradley - Type 7&9 Push-Pull Unit 800H PB

800HFPX6D4 - Allen-Bradley - Type 7&9 Push-Pull Unit 800H PB

Allen-BradleySKU: AB800HFPX6D4
Price:
$699.00
Stock:
Sold out

Description

800HFPX6D4 - Allen-Bradley - Type 7&9 Push-Pull Unit 800H PB

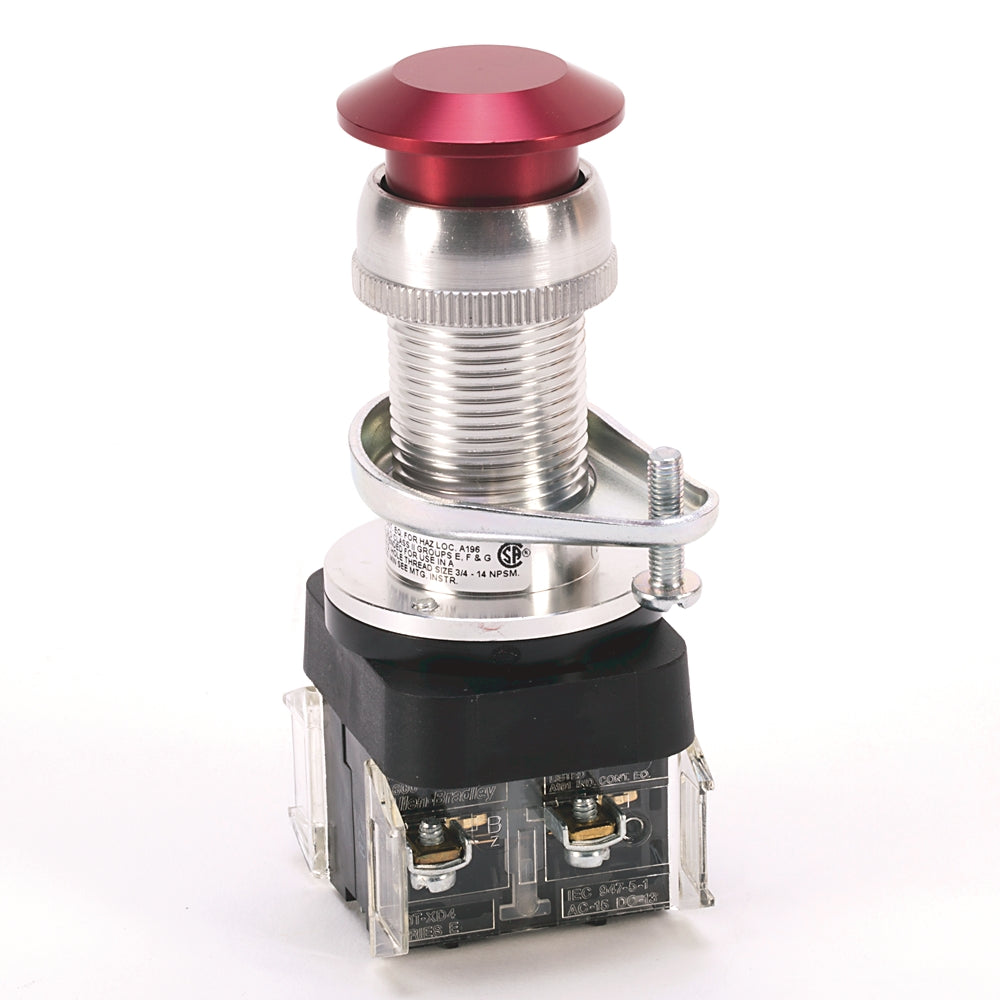

800H-FPX6D4 – A rugged two-position push-pull switch operator in the 800H Series with a mushroom-style head, used for maintained control actions in industrial applications.

TECHNICAL SPECIFICATIONS

General

Bull Number Modifier
No Guards - on Terminals
Button Color
Red
Position 4 Contact Block
No Block This Position

Construction

Number of command positions
2
Material front ring
Plastic
Color cap
Red
Head type
Mushroom head
Finger-safe guards
No guards on terminals
Contact block
1 NCLB, standard contact block (800T-XD4)
With front ring
True

Electrical

Suitable for illumination
False
Rated operational current
69VA @ 28...600V DC
Rated operational current, break
720VA @ 72...120V AC
Rated operational current, make
7200VA @ 120...600V AC
Operational voltage (Ue), max
600V AC @ 600V DC
Thermal continuous current (Ith), max
10A AC @ 2.5A DC
Utilization category
AC-15 per IEC, DC-13 per IEC
Contact operation
Slow, double make and break
Dielectric strength
2200V @ 1min, 1300V @ 1min (Logic Reed)
Electrical life cycle
1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)

Mechanical

Spring-return
False
Hole diameter
30.5 mm
Type of electric connection
Screw connection
Mechanical life operations
250000 minimum
Operator type
2 pos. push-pull push-button, non-illuminated
Number of positions
2-position maintained
Typical operating force for 2-position push-pull
9 lb maximum push or pull
Typical operating forces operator without contact blocks
Standard mushroom: 2.9 lb maximum
Shock
1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
Degree of protection
Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)
Vibration
10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed)
Terminal screw torque
6 in-lb
Wire gauge
18 AWG

Environmental

Operating temperature
-20 °C
Humidity
50% @ 104°F (40 °C)
Storage temperature
-40 °C


PRODUCT DATASHEET

800HFPX6D4
