Description

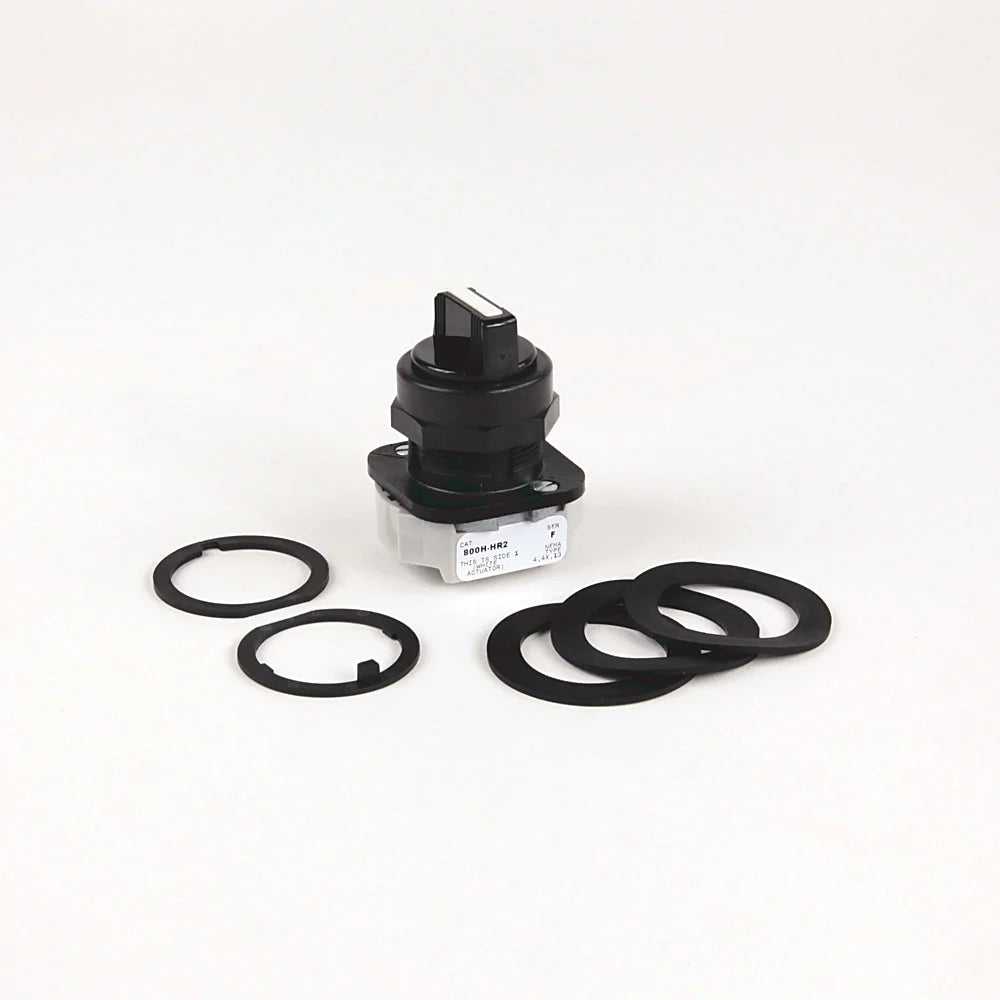

800HHR2 - Allen-Bradley - 30mm Selector Switch 800H PB
This two‑position maintained selector switch features a standard plastic knob for 30.5 mm panel mounting, with no contact blocks included. It is rated for a minimum of 1,000,000 mechanical cycles and is compatible with NEMA 1, 4, 4X, 12, and 13 environments. The switch uses screw‑terminal wiring and is designed with solid resistance to shock and vibration
TECHNICAL SPECIFICATIONS
Mechanical
| Number of switch positions | 2 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Selector switch |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
Electrical
| Suitable for illumination | False |
|---|---|
| Contact block configuration | No contacts |
Construction
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator cap type | Standard knob |
| Operator cam code | -- (standard cam) |
| Operator cap color | Black with white Insert |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
PRODUCT DATASHEET
