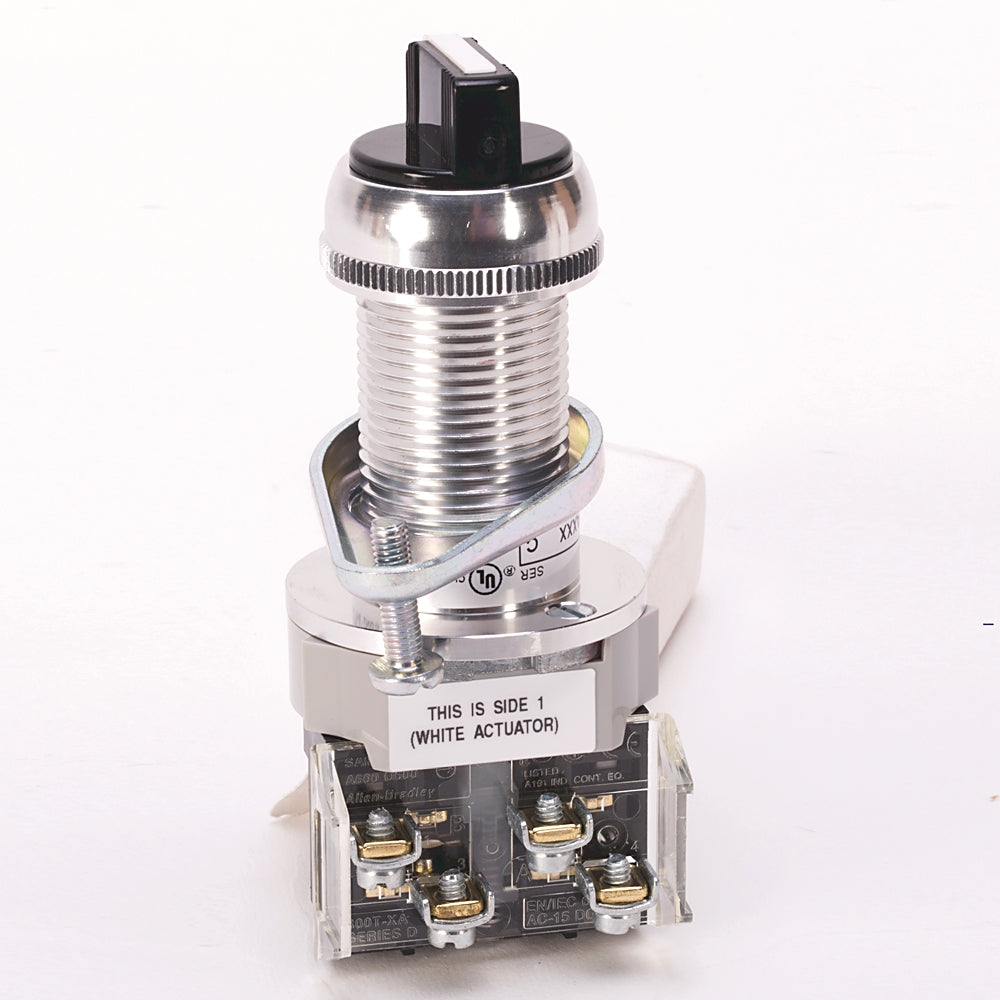

800HJP2KB7AXXX - Allen-Bradley - Type 7&9 Selector Switch 800H PB
Roll over image to zoom in Click on image to zoom
800HJP2KB7AXXX - Allen-Bradley - Type 7&9 Selector Switch 800H PB

800HJP2KB7AXXX - Allen-Bradley - Type 7&9 Selector Switch 800H PB

Allen-BradleySKU: AB800HJP2KB7AXXX
Price:
$0.00
Stock:
Sold out

Description

800HJP2KB7AXXX - Allen-Bradley - Type 7&9 Selector Switch 800H PB

800H-JP2KB7AXXX – A Type 7 & 9 selector switch with maintained knob and standard contact configuration for industrial control panels, allowing selection among multiple control positions.

TECHNICAL SPECIFICATIONS

General

3-Position Cam Options
KB7 Cam
Bull Number Modifier
No Guards - on Terminals
Insert or Wing Lever Color
Standard
Operator Type & Function
Standard Knob Maintained
Position 2 Contact Block
No Block This Position
Position 4 Contact Block
No Block This Position
Type
Type 7&9 Selector Switch

Mechanical

Number of switch positions
3
Spring-return
False
With light source
False
Switching function latching
True
Hole diameter
30.5 mm
Type of electric connection
Screw connection
Typical operating forces with contact blocks
800T-XA: 1 lb
Mechanical life operations
200000 minimum
Shock
1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
Vibration
10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed)
Terminal screw torque
6 in-lb
Typical operating force for spring return selector switches
5 in-lb to stop, 0.2 in-lb to return
Typical operating forces operator without contact blocks
Maintained selector switch: 4 in-lb maximum
Degree of protection
Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)

Electrical

Suitable for illumination
False
Operational voltage (Ue), max
600V AC @ 600V DC
Thermal continuous current (Ith), max
10A AC @ 2.5A DC
Rated operational current
69VA @ 28...600V DC
Rated operational current, break
720VA @ 72...120V AC
Rated operational current, make
7200VA @ 120...600V AC
Contact operation
Slow, double make and break
Utilization category
AC-15 per IEC, DC-13 per IEC
Position 2 contact block
No block this position
Position 1 contact block
1 NO, 1 NC, standard contact block (800T-XA)
Position 3 contact block
No block this position
Position 4 contact block
No block this position
Wire gauge
18 AWG
Dielectric strength
2200V @ 1min, 1300V @ 1min (Logic Reed)
Electrical life cycle
1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)

Construction

Material front ring
Plastic
Type of control element
Key
2-position cam options
Not applicable
3-position cam options
KB7 cam
4-position cam options
Not applicable
Position 5 contact block
Not applicable
Finger-safe guards
No guards on terminals
Operator type & function
Standard knob, maintained
Insert lever color
White insert with standard or knob lever or grey color with metal winglever
With front ring
True

Environmental

Operating temperature
-20 °C
Humidity
50% @ 104°F (40 °C)
Storage temperature
-40 °C

PRODUCT DATASHEET

800HJP2KB7AXXX
