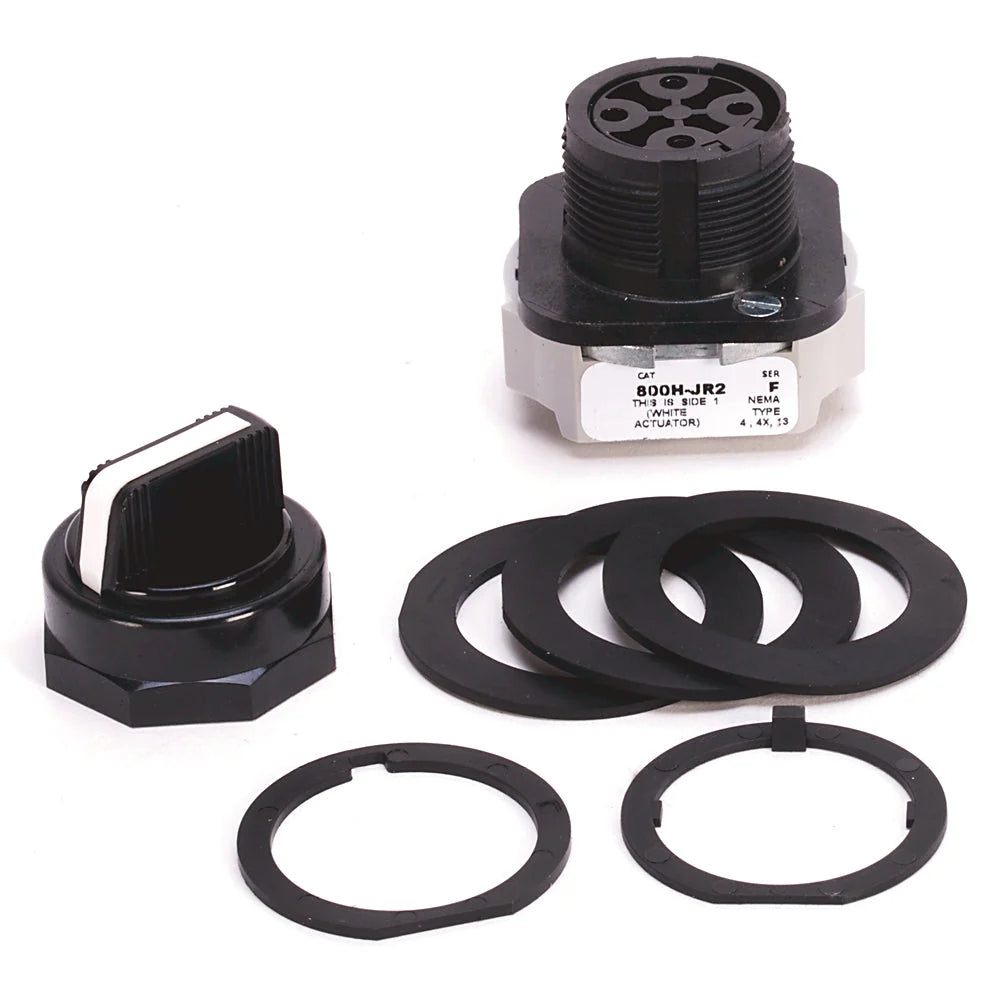

800HJR2 - Allen-Bradley - 30mm Selector Switch 800H PB
This three‑position maintained selector switch allows selection of three logic states (such as OFF‑ON‑OFF) and accepts modular cam and contact block installation. It is compatible with 30.5 mm panel mounting, features screw‑terminal connections, and is constructed for heavy-duty industrial use. The switch is designed for long lifecycle performance in sealed, harsh environments with NEMA 4X/13 compatibility
TECHNICAL SPECIFICATIONS
Mechanical
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Selector switch |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
Electrical
| Suitable for illumination | False |
|---|---|
| Contact block configuration | No contacts |
Construction
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator cap type | Standard knob |
| Operator cap color | Black with white Insert |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
