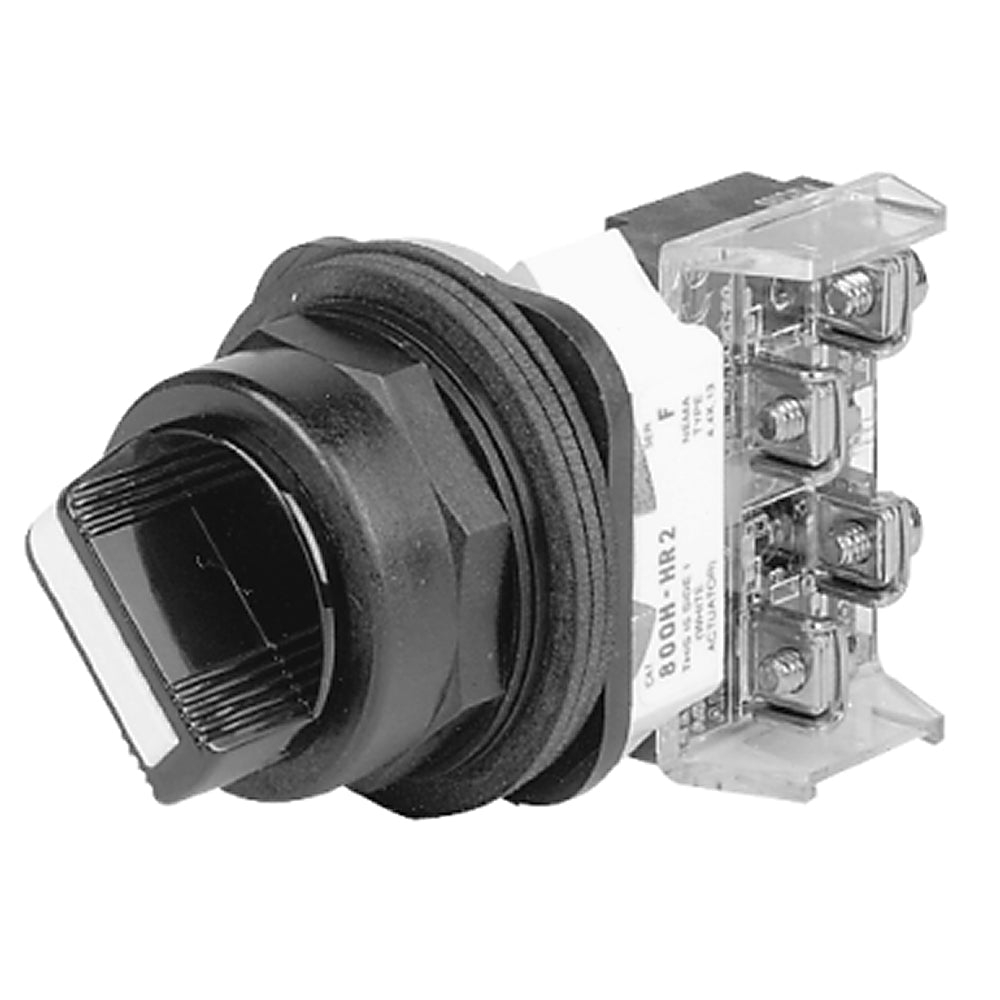

800HNR2KP4B - Allen-Bradley - 30mm Selector Switch 800H PB
30 mm selector switch assembly designed for industrial control panels, maintained operator function with multiple switch positions, screw terminations, suitable for enclosures Type 1/4/4X/12/13, long mechanical life, plastic operator construction.
TECHNICAL SPECIFICATIONS
General
| Type |
30 mm Selector Switch
|
|---|
Mechanical
| Number of switch positions |
4
|
|---|---|
| Hole diameter |
30.5 mm
|
| Type of electric connection |
Screw connection
|
| Operator mechanical design life (cycles, min.) |
1000000
|
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13
|
| Operator type |
Selector switch
|
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m
|
| Contact block electrical design life (cycles, at max. load) |
1000000
|
| Operator function |
Maintained
|
| Shock |
25 G (contact fragility)/100 G (no damage)
|
| Vibration |
10 G maximum
|
| Contact block termination wire range |
14 - 18 AWG (x2)
|
Electrical
| Suitable for illumination |
False
|
|---|---|
| Contact block configuration |
2-NO 2-NC standard contacts
|
| Contact block thermal current rating |
10 A
|
| Contact block utilization category (AC) |
A600, AC-15
|
| Contact block utilization category (DC) |
Q600, DC-13
|
| Contact block operational voltage, max |
600V AC @ 600V DC
|
Construction
| Terminations with finger safe covers |
False
|
|---|---|
| Operator cap/button material |
Plastic
|
| Operator construction/material |
Plastic
|
| Operator cap type |
Standard knob
|
| Operator cam code |
KP4
|
| Operator cap color |
Black with white Insert
|
Environmental
| Operating temperature |
-25 °C
|
|---|---|
| Hazardous location rating |
False
|
| Humidity |
50 %
|
| Storage temperature |
-40 °C
|
PRODUCT DATASHEET
