800HQPH2M - Allen-Bradley - Type 7_9 Pilot Light 800H PB

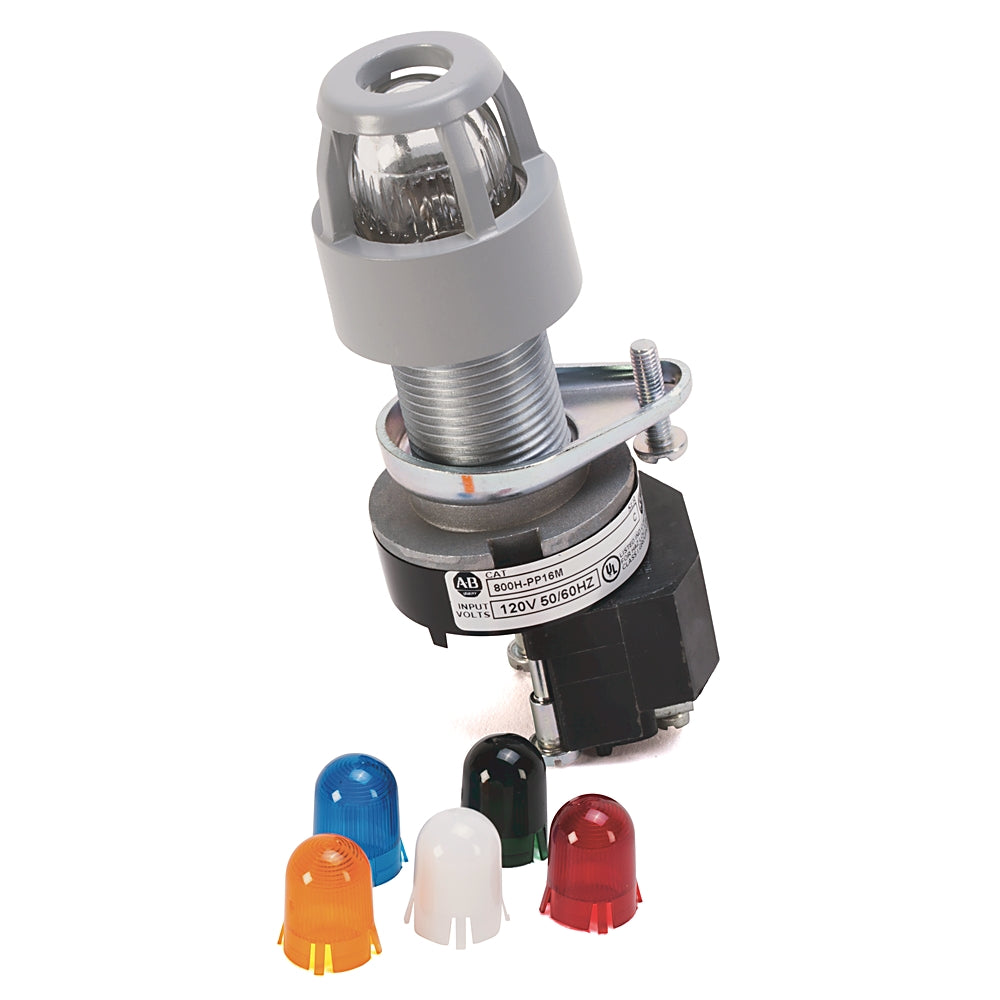

Hazardous-location pilot light with LED illumination in a multi-color insert packet, designed for use in corrosive/watertight environments, operates over 12–130 V AC/DC, mounts in 30.5 mm hole, no integrated contact blocks.
TECHNICAL SPECIFICATIONS
General
| Bull Number Modifier |
No Guards - on Terminals
|
|---|---|
| Illumination Option Selection |
Pilot Light with LED LA
|
| Type |
Type 7_9 Pilot Light
|
Electrical
| Number of indicator lights |
1
|
|---|---|
| With light source |
True
|
| Type of lamp socket |
LED
|
| Rated supply voltage |
12...130V AC/DC
|
| Power module type |
Full voltage or universal
|
| Lamp test type |
Pilot light with LED lA
|
| Dielectric strength |
2200V @ 1min, 1300V @ 1min (Logic Reed)
|
Construction
| With front ring |
False
|
|---|---|
| Construction type lens |
Round
|
| Lens color |
Multi-color insert packet (amber, blue, green, red, white)
|
| Type of lens |
High
|
| Finger-safe guards |
No guards on terminals
|
Mechanical
| Type of electric connection |
Screw connection
|
|---|---|
| Vibration |
10...2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
|
| Shock |
1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
|
| Terminal screw torque |
6 in-lb
|
| Wire gauge |
18 AWG
|
| Mechanical life operations |
250000 minimum
|
| Degree of protection |
Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)
|
Environmental
| Operating temperature |
-20 °C
|
|---|---|
| Humidity |
50% @ 104°F (40 °C)
|
| Storage temperature |
-40 °C
|
PRODUCT DATASHEET
