Description

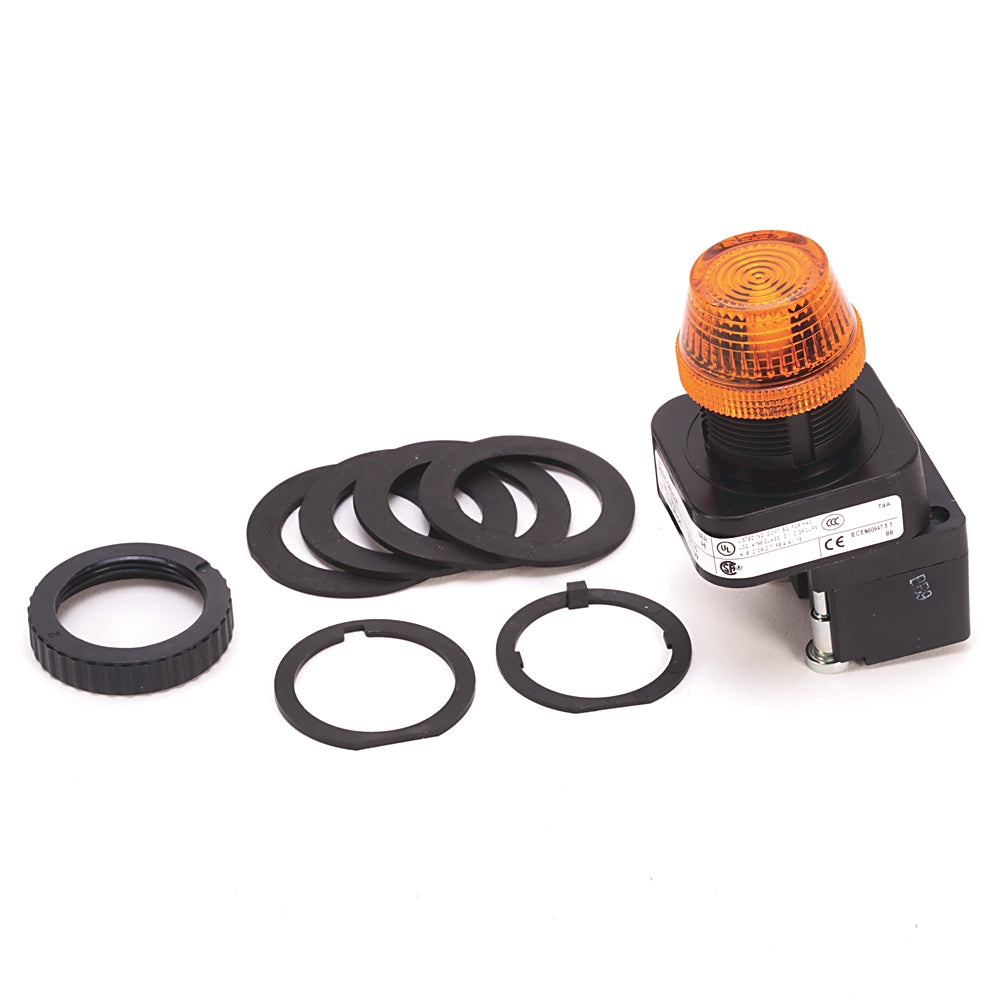

800HQRH2A - Allen-Bradley - 30mm Pilot Light 800H PB
30.5 mm pilot light with full-voltage LED illumination in amber color, Type 4/4X/13 rated for industrial panels, no contact blocks included, built for rugged environments.
TECHNICAL SPECIFICATIONS
General
| Type |
30mm Pilot Light
|
|---|
Electrical
| Number of indicator lights |
1
|
|---|---|
| Illumination lamp type |
LED
|
| Operator construction/material |
Plastic
|
| Illumination module type |
Full voltage
|
| Illumination module input voltage |
12...130V AC/DC
|
| Operator illuminated |
True
|
Mechanical
| Hole diameter |
30.5 mm
|
|---|---|
| Type of electric connection |
Screw connection
|
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13
|
| Operator type |
Pilot light
|
| Vibration |
10 G maximum
|
| Shock |
100 G (no damage)
|
| Illumination module termination wire range |
14 - 18 AWG (x2)
|
| Illumination module termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m
|
Construction
| Terminations with finger safe covers |
False
|
|---|---|
| Operator cap/button shape |
Round
|
| Operator cap type |
Fresnal
|
| Operator cap color |
Amber
|
| Operator cap/button material |
Plastic
|
Environmental
| Operating temperature |
-25 °C
|
|---|---|
| Hazardous location rating |
Class I, div. 2
|
| Humidity |
50 %
|
| Storage temperature |
-40 °C
|
