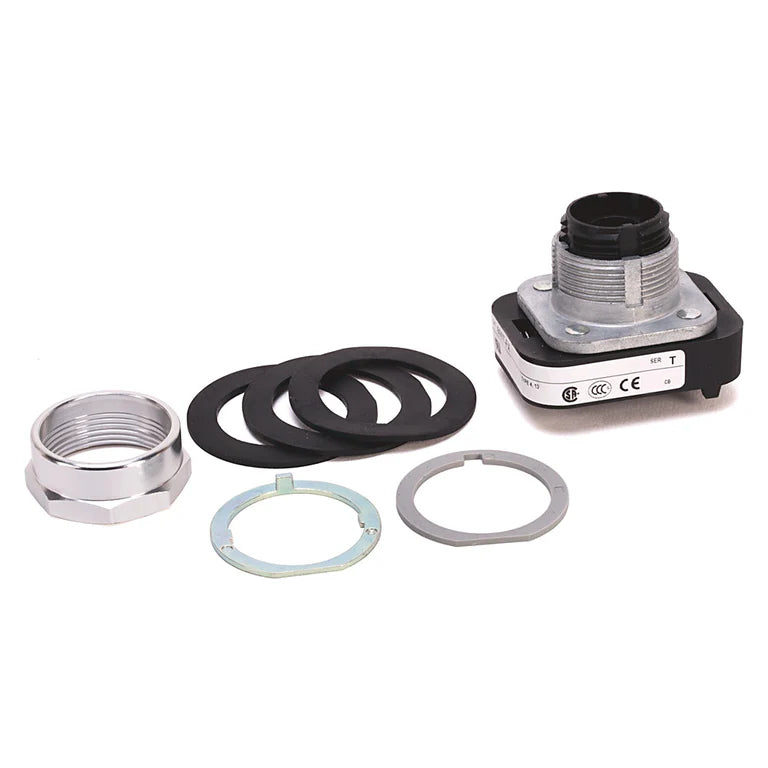

800TFX - Allen-Bradley - 30mm Push-Pull Device 800T PB
A two-position push‑pull operator available as a mushroom head, intended for latching control functions. Does not include contact blocks (operator-only), typically paired with separate wiring blocks. Designed to meet NEMA 4/13 conditions.
TECHNICAL SPECIFICATIONS
General
| Cap Selection |
Standard Mushroom Head |
| Type |
30mm Push-Pull Device |
Electrical
| Suitable for illumination |
False |
| Operator cap/button shape |
Round |
| Operator cap/button material |
Not applicable |
| Operator cap type |
No cap |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Terminations with finger safe covers |
False |
| Operator mechanical design life (cycles, min.) |
250000 |
| Operator cap color |
No cap |
| Operator cap/button size |
Not applicable |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator cap text/symbol |
No legend on cap |
| Operator function |
2-position |
| Operator type |
Push-Pull Unit |
| Operator special function |
Maintained |
| Contact block configuration |
No contacts |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
Environmental
| Humidity |
50 % |
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Storage temperature |
-40 °C |
Construction
| Operator construction/material |
Metal |
PRODUCT DATASHEET
800TFX
