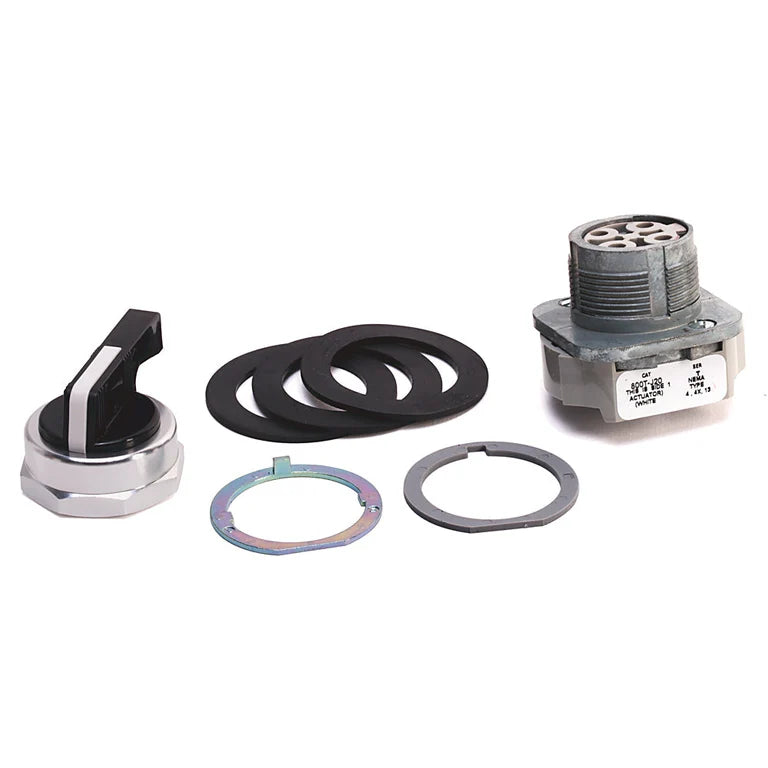

800TJ20 - Allen-Bradley - 30mm Selector Switch 800T PB
Variant of J2 with alternate knob design or contact arrangement. Three‑position, maintained selector switch. Built for 30 mm installations with industrial sealing and longevity.
TECHNICAL SPECIFICATIONS
Mechanical
| Number of switch positions |
3 |
| Hole diameter |
30.5 mm |
| Operator mechanical design life (cycles, min.) |
1000000 |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator type |
Selector switch |
| Operator function |
Spring return from left and right |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
Electrical
| Suitable for illumination |
False |
| Contact block configuration |
No contacts |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button material |
Plastic |
| Operator construction/material |
Metal |
| Operator cap type |
Knob lever |
| Operator cam code |
Standard cam |
| Operator cap color |
Black with white insert |
Environmental
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800TJ20
