800TJ2A - Allen-Bradley - 30mm Selector Switch 800T PB

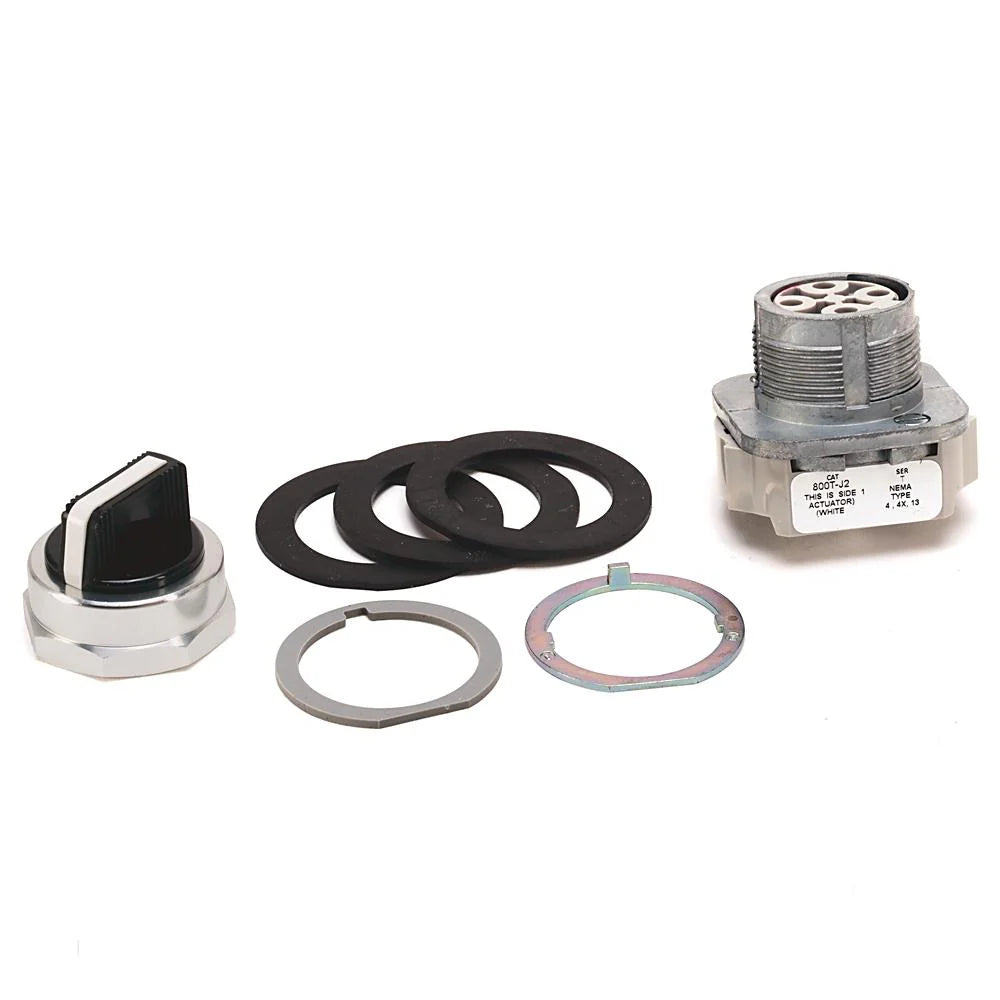

Three‑position maintained selector switch with a unique actuator style (e.g., extended lever or color-coded knob). Designed for control panels with a 30 mm panel cutout. Offers NEMA 4/13 protection.
TECHNICAL SPECIFICATIONS
General
| Type |
30mm Selector Switch |
Mechanical
| Number of switch positions |
3 |
| Hole diameter |
30.5 mm |
| Operator mechanical design life (cycles, min.) |
1000000 |
| Contact block electrical design life (cycles, at max. load) |
1000000 |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator type |
Selector switch |
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function |
Maintained |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
| Contact block termination wire range |
14 - 18 AWG (x2) |
Electrical
| Suitable for illumination |
False |
| Contact block configuration |
1-NO 1-NC standard contacts |
| Contact block thermal current rating |
10 A |
| Contact block utilization category (AC) |
A600, AC-15 |
| Contact block utilization category (DC) |
Q600, DC-13 |
| Contact block operational voltage, max |
600V AC @ 600V DC |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button material |
Plastic |
| Operator construction/material |
Metal |
| Operator cap type |
Standard knob |
| Operator cam code |
Standard cam |
| Operator cap color |
Black with white insert |
Environmental
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800TJ2A
