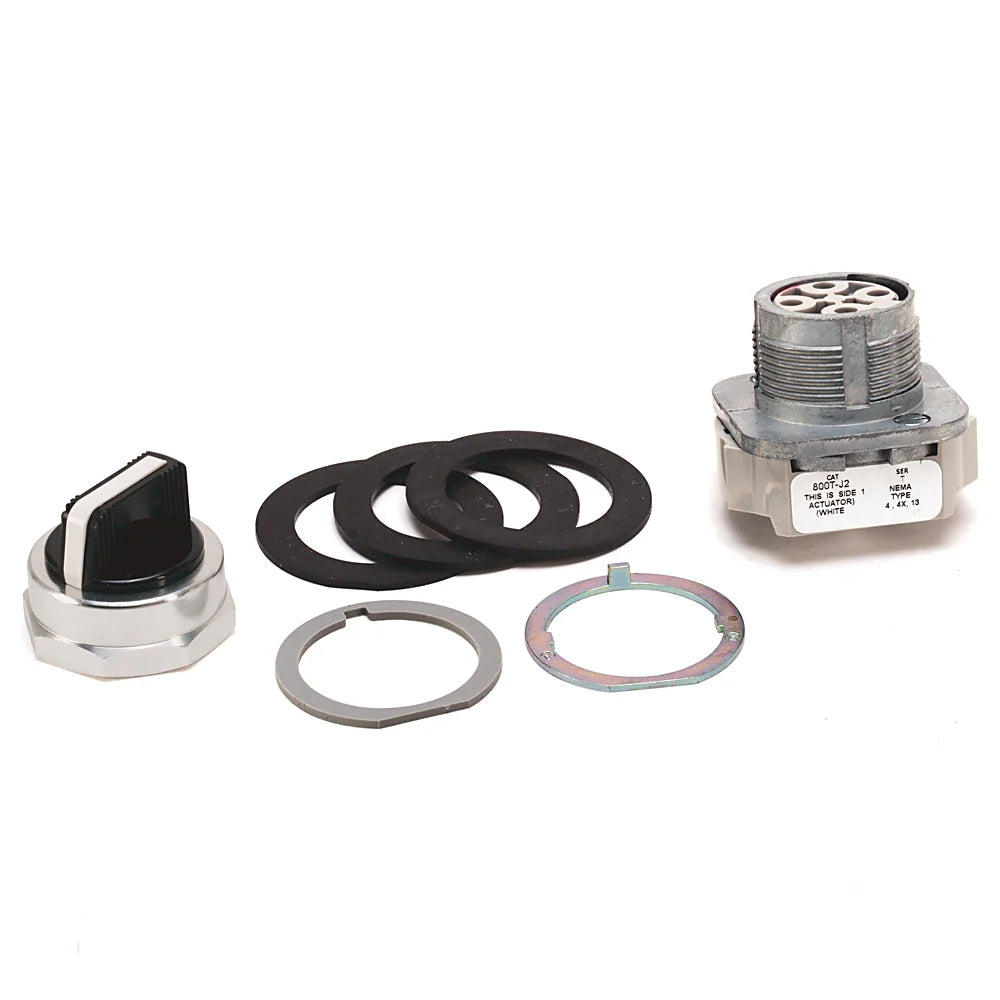

800TJ91A - Allen-Bradley - 30mm Selector Switch 800T PB
Alternate actuator or key configuration of J91. Maintained, lockable selector switch for secure control mode selection. Suitable for 30 mm mounting and rugged panel use.
TECHNICAL SPECIFICATIONS
General
| Type |
30mm Selector Switch |
Mechanical
| Number of switch positions |
3 |
| Hole diameter |
30.5 mm |
| Operator mechanical design life (cycles, min.) |
1000000 |
| Contact block electrical design life (cycles, at max. load) |
1000000 |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator type |
Selector switch |
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function |
Spring return from left and right |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
| Contact block termination wire range |
14 - 18 AWG (x2) |
Electrical
| Suitable for illumination |
False |
| Contact block configuration |
1-NO 1-NC standard contacts |
| Contact block thermal current rating |
10 A |
| Contact block utilization category (AC) |
A600, AC-15 |
| Contact block utilization category (DC) |
Q600, DC-13 |
| Contact block operational voltage, max |
600V AC @ 600V DC |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button material |
Plastic |
| Operator construction/material |
Metal |
| Operator cap type |
Standard knob |
| Operator cam code |
Standard cam |
| Operator cap color |
Black with white insert |
Environmental
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800TJ91A
