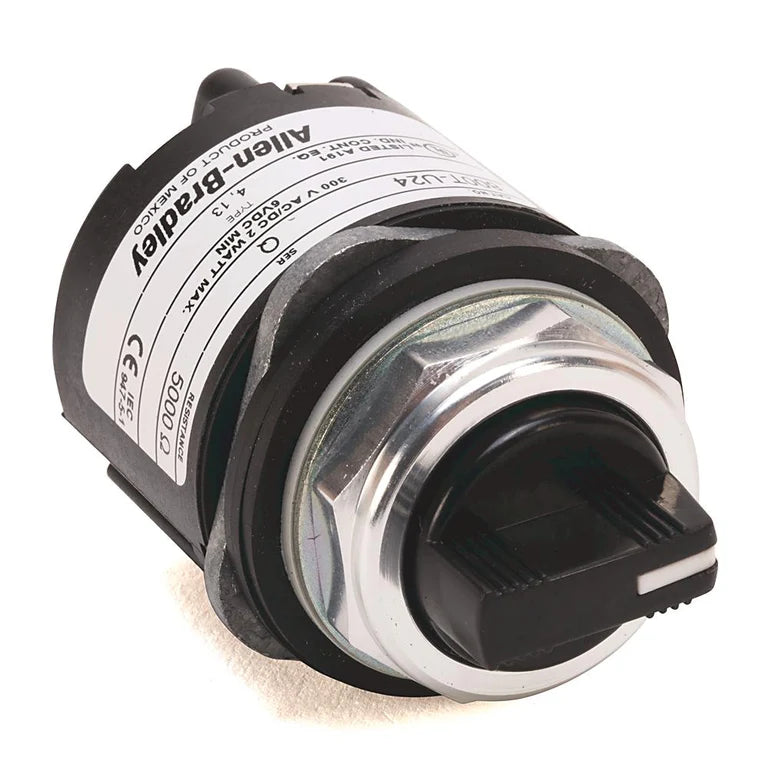

800TU29 - Allen-Bradley - 30mm Potentiometer 800T PB
Contact block accessories or adapters used with 800T operator units (e.g., logic interface or auxiliary contacts). Enable expansion of switching logic or auxiliary wiring. Compatible with standard 30 mm push-button or selector operators.
TECHNICAL SPECIFICATION
General
Mechanical
| Terminations with finger safe covers |
False |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Hole diameter |
30.5 mm |
| Suitable for illumination |
False |
| Operator mechanical design life (cycles, min.) |
25000 |
| Operator function |
Single turn |
| Vibration |
10 G maximum |
| Potentiometer module termination wire range |
14 - 18 AWG (x2) |
| Shock |
100 G (no damage) |
| Potentiometer module termination tightening torque |
6 - 7 in-lb / 0.7 - 0.8 N-m |
Electrical
| Potentiometer module power rating |
2 W |
| Potentiometer module input voltage |
300V AC/DC (6V DC min) |
| Potentiometer module resistance rating |
10K |
| Type of electric connection |
Screw connection |
Construction
| Operator construction/material |
Metal |
| Operator cap/button shape |
Round |
| Operator cap color |
Black |
| Operator cap/button material |
Plastic |
| Operator cap type |
Standard knob |
| Operator type |
Potentiom unit |
Environmental
| Hazardous location rating |
False |
| Humidity |
50 % |
| Operating temperature |
-25 degC |
| Storage temperature |
-40 degC |
PRODUCT DATASHEET
800TU29
