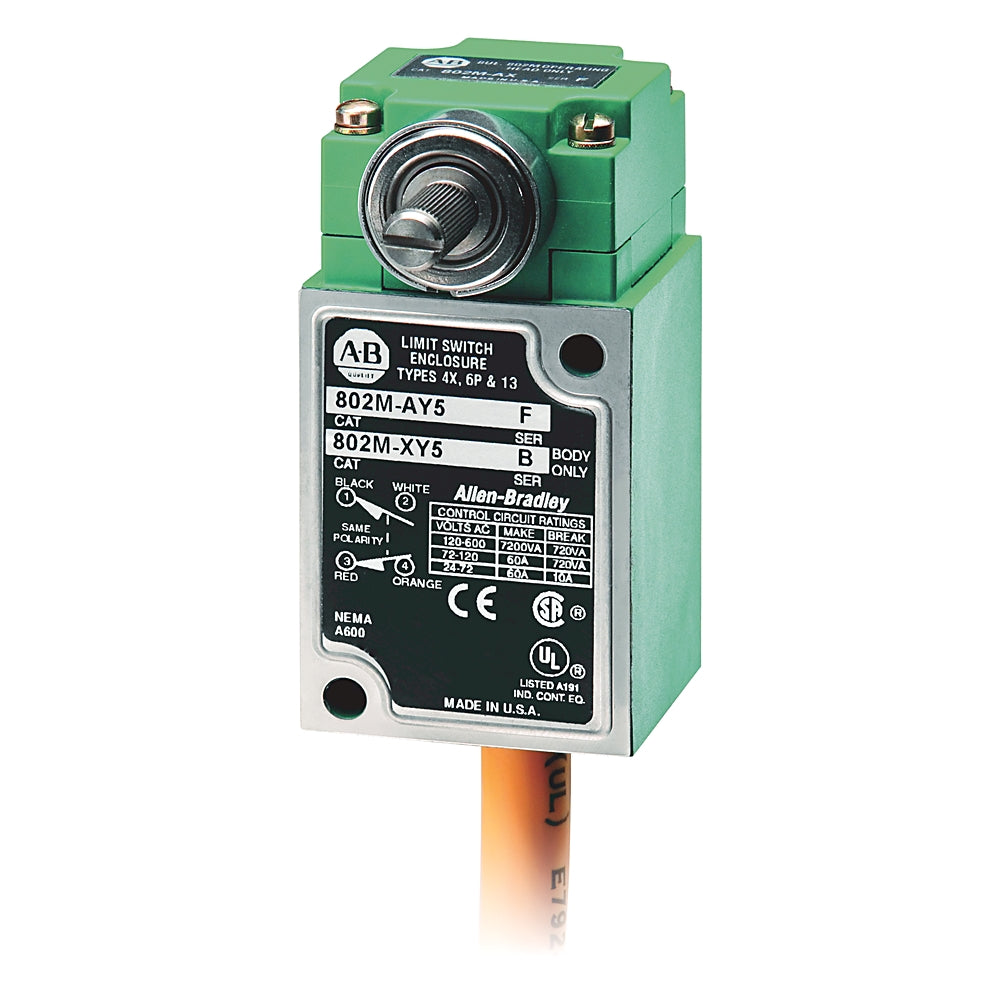

802MAY8 - Allen-Bradley - Factory Sealed Limit Switch
Description not found in public listings; the 802M series is used for micro limit switches and similar control devices requiring small mechanical actuation.
TECHNICAL SPECIFICATIONS
General
| Indicating Lights |
Not Applicable
|
|---|
Mechanical
| Suitable for safety functions |
False
|
|---|---|
| Degree of protection (NEMA) |
13
|
| Degree of protection (IP) |
IP67
|
| List of degrees of protection (NEMA) |
1, 4, 6P, 13
|
| Special feature |
Complete switch
|
| Torque to operate contacts, max |
0.34 Nm
|
| Mode of operation |
CW and CCW ops
|
| Travel to operate contacts, max |
15°
|
| Travel to reset contacts, max |
6°
|
| Travel, max |
86°
|
| Actuation type |
Lever type, spring return, standard trip
|
| Connection type |
8 ft cable
|
| Switching function latching |
False
|
| Construction type housing |
Cuboid
|
Electrical
| With status indication |
False
|
|---|---|
| Number of circuits |
2 circuit
|
| Indicating lights |
No indication light
|
| Continuous carrying current |
2 circuits same polarity: maximum 5 A per pole @ 24V DC
|
| Contact rating |
2 circuits same polarity: maximum 1.1 A per pole @ 24V DC
|
| Contact rating, break |
2 circuits same polarity: maximum 720VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
|
| Contact rating, make |
2 circuits same polarity: maximum 7200VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
|
| Output electronic |
False
|
Construction
| Width of sensor, approx |
2 Circuit: 41.3 mm
|
|---|---|
| Height of sensor, approx |
2 Circuit: 57.9 mm
|
| Length of sensor, approx |
2 Circuit: 119 mm
|
Environmental
| Ambient temperature during operating |
0 °C
|
|---|---|
| NEMA rating designation |
2 circuits same polarity: A600/AC-15
|
| Ambient temperature |
0...80° (32...176°), minimum temperature based on the absence of freezing moisture or water
|
