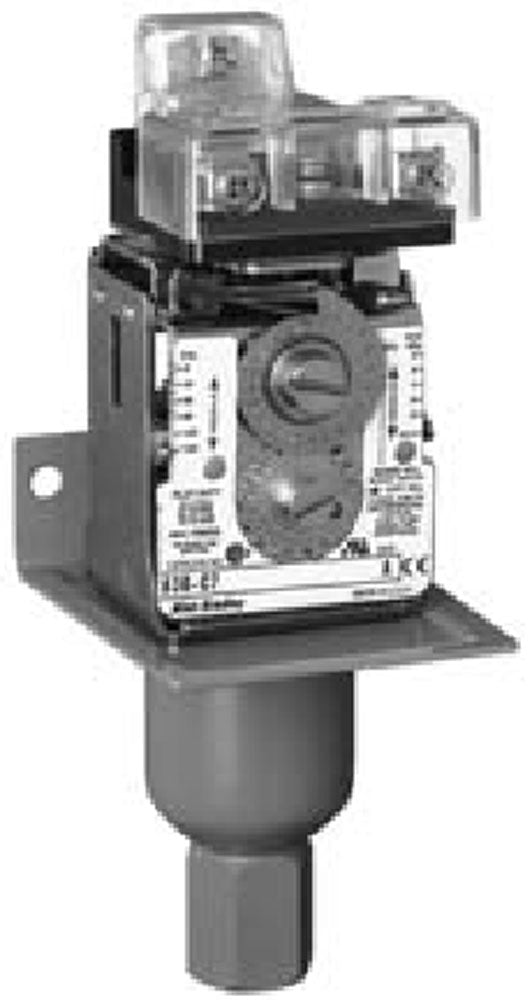

836C7 - Allen-Bradley - Electro-Mech Pres Cntrl Sw
Part of the 836 pressure control family used to sense pressure in hydraulic or pneumatic systems, electromechanical switch output with adjustable settings and industrial enclosures.
TECHNICAL SPECIFICATIONS
General
| Custom Trip or Reset Setting |
Standard Trip/Reset Setting |
| Pilot Light Modifications |
No Pilot Light |
Construction
| Explosion-proof |
False |
| Housing material |
Other |
| Style |
Style C product |
| Actuator type |
External bellows: Copper Alloy, Stainless Steel Type 316 |
| Suitable for water |
True |
| Suitable for air |
True |
| Suitable for oil |
True |
Electrical
| Supply voltage |
600 V |
| Electrical connection |
Cable screw gland |
| Customization |
Standard trip/reset settings |
| Contact block modification |
2 circuit-SPST NC (non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC-57.5 VA, 115...230V note: minimum specified differential value approximately doubles) |
Mechanical
| Width |
63.5 mm |
| Depth |
75.7 mm |
| Height |
160 mm |
| Shipping weight, approx |
1.3 lb |
| Line pressure, max |
300 psi |
| Occasional surge pressures, max |
375 psi |
| Adjustable differential |
2.5 psi |
| Adjustable operating range |
4 to 150 psi |
| Pressure connection |
1/4 in N.P.T.F. internal pipe thread or 3/8 in N.P.S.F. internal pipe connection (836-C1 and 836-C1A only) |
| Ingress rating |
Open style device (without enclosure) |
Environmental
| Operating temperature |
-22 degF |
| Storage temperature |
-22 degF |
PRODUCT DATASHEET
836C7
