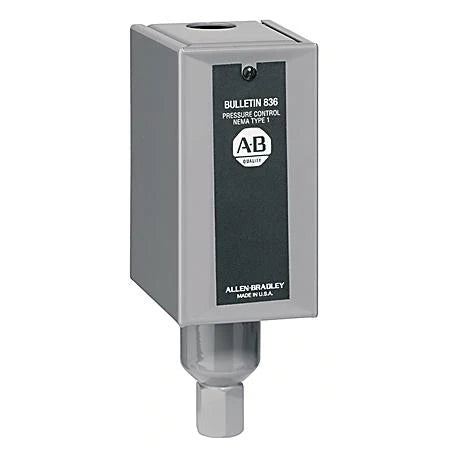

836C7A - Allen-Bradley - Electro-Mech Pres Cntrl Sw
Industrial pressure control switch with copper‑alloy bellows, Type 1 enclosure rated to 150 psi with 2 psi differential. Switches in snap‑action SPDT style, 5 A‑240 V or 3 A‑600 V, control circuit rated to 125 VA AC, 57.5 VA DC
TECHNICAL SPECIFICATIONS
General
| Custom Trip or Reset Setting |
Standard Trip/Reset Setting |
| Pilot Light Modifications |
No Pilot Light |
Construction
| Explosion-proof |
False |
| Housing material |
Other |
| Style |
Style C product |
| Actuator type |
External bellows: Copper Alloy, Stainless Steel Type 316 |
| Suitable for water |
True |
| Suitable for air |
True |
| Suitable for oil |
True |
Electrical
| Supply voltage |
600 V |
| Electrical connection |
Cable screw gland |
| Customization |
Standard trip/reset settings |
| Contact block modification |
2 circuit-SPST NC (non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC-57.5 VA, 115...230V note: minimum specified differential value approximately doubles) |
Mechanical
| Width |
65.1 mm |
| Depth |
62.6 mm |
| Height |
185.8 mm |
| Shipping weight, approx |
2 lb |
| Line pressure, max |
300 psi |
| Occasional surge pressures, max |
375 psi |
| Adjustable differential |
2.5 psi |
| Adjustable operating range |
4 to 150 psi |
| Pressure connection |
1/4 in N.P.T.F. internal pipe thread or 3/8 in N.P.S.F. internal pipe connection (836-C1 and 836-C1A only) |
| Ingress rating |
NEMA Type 1 (Type 1 industrial use) |
Environmental
| Operating temperature |
-22 °F |
| Storage temperature |
-22 °F |
