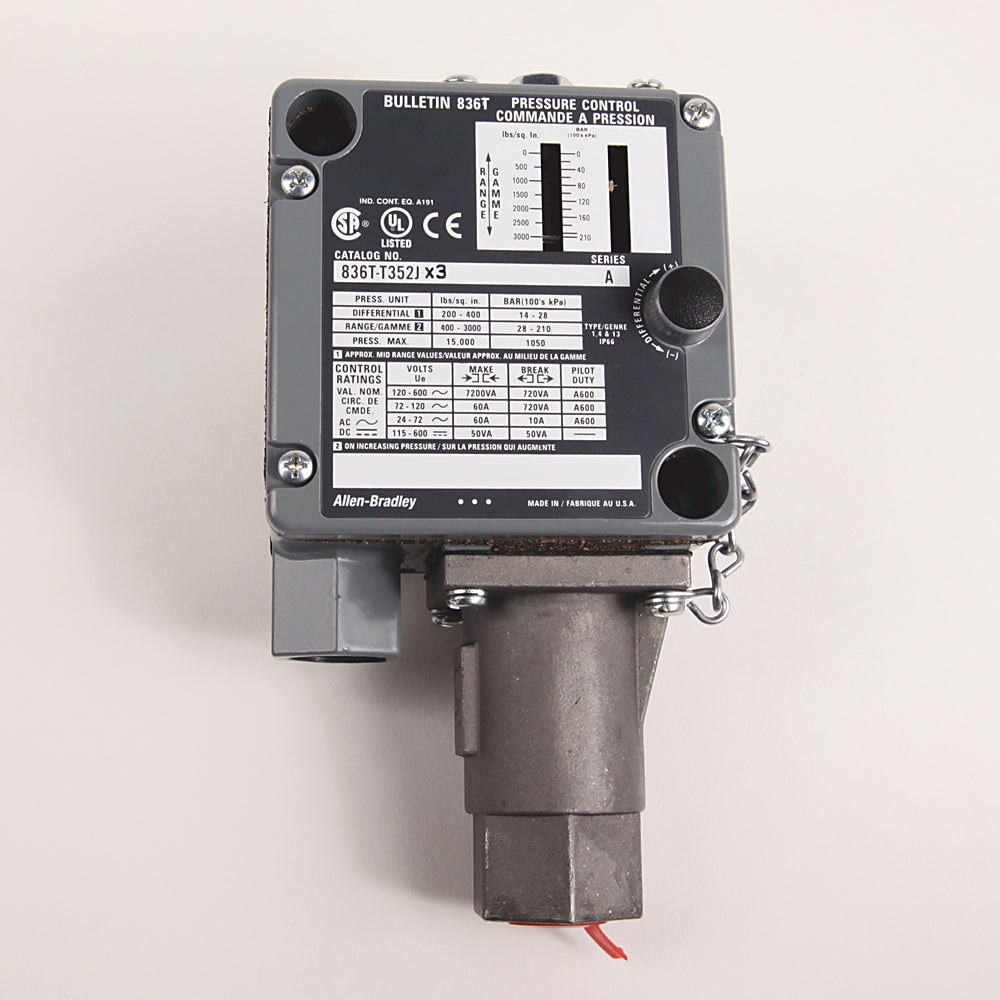

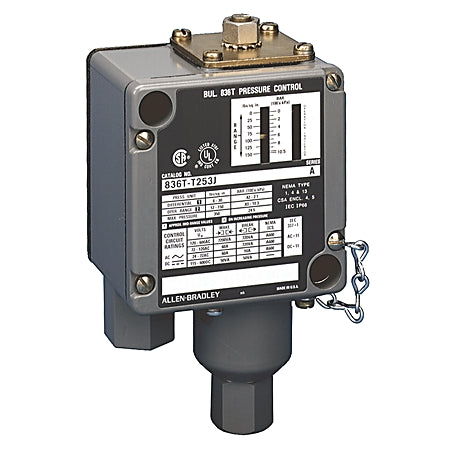

836TT352J - Allen-Bradley - Electro-Mech Pres Cntrl Sw
Electromechanical pressure switch from 836T series designed to monitor changing pressure conditions and actuate on setpoints in industrial fluid systems.
TECHNICAL SPECIFICATIONS
General
| Custom Trip or Reset Setting |
Standard Trip/Reset Setting |
Construction
| Explosion-proof |
False |
| Style |
Pressure control |
| Enclosure type |
Type 1, 4 & 13 industrial use |
| Operator type |
Piston with seal |
| Actuator type |
Piston with seal |
| Suitable for water |
True |
| Suitable for oil |
True |
Mechanical
| Degree of protection (IP) |
IP66 |
| Width |
88.9 mm |
| Depth |
76.7 mm |
| Height |
182 mm |
| Occasional surge pressures, max |
15000 psi |
| Adjustable differential |
300 psi |
| Adjustable operating range |
400 to 3000 psi |
| Pressure connection |
3/8 in. N.P.T.F. female pipe thread SAE 7/16-20 UNF-2B thread O-ring boss seal SAE 9/16-18 UNF-2B thread O-ring boss seal |
Electrical
| Electrical connection |
Plug |
| Rated operational current, break |
720VA @ 72...120V AC |
| Rated operational current, make |
7200VA @ 120...600V AC |
| Utilization category |
IEC: AC-15, DC-13, NEMA: A600 |
| Customization |
Standard trip/reset settings (the maximum operating range and minimum differential will be factory set for the pressure control switch.) |
| Contact block modification |
S.P.D.T. 2-circuit contact block-standard |
Environmental
| Operating temperature |
-22 degF |
| Storage temperature |
-22 degF |
PRODUCT DATASHEET
836TT352J
