Description

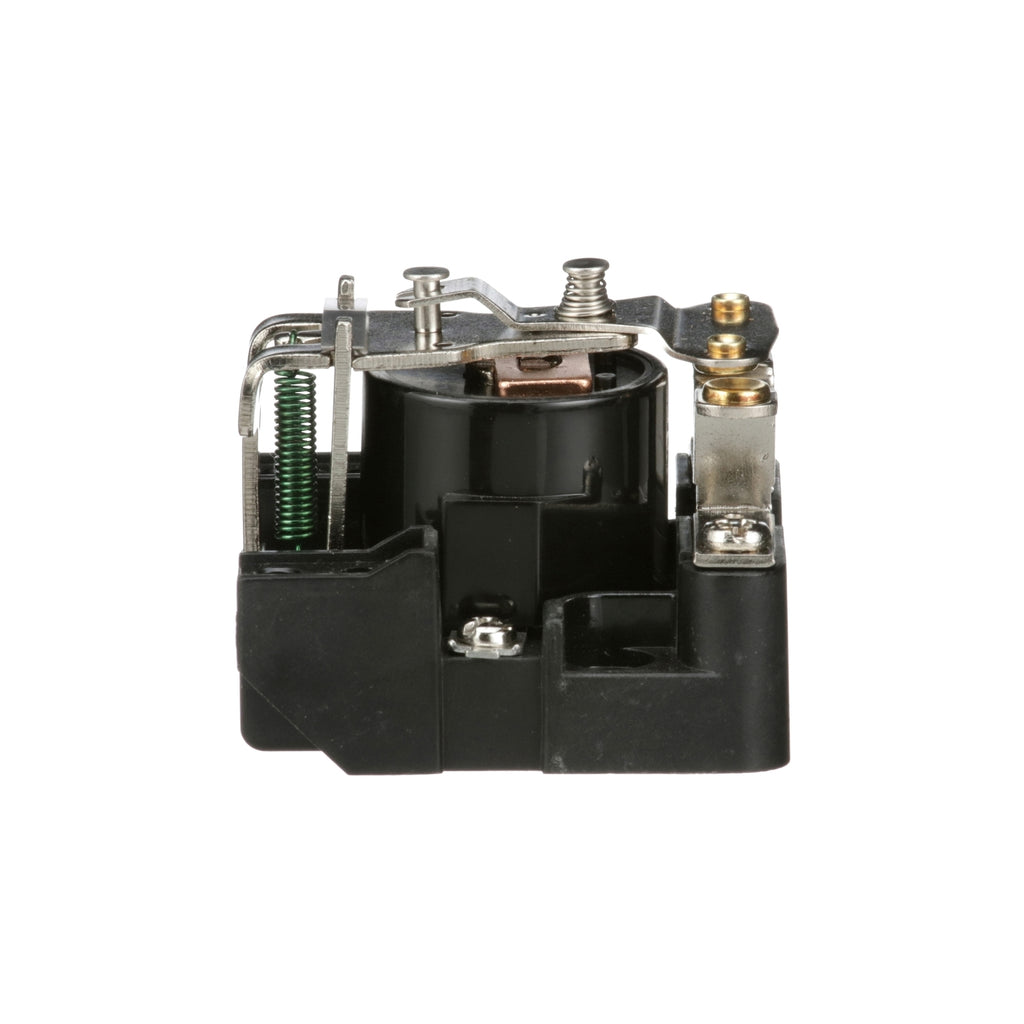

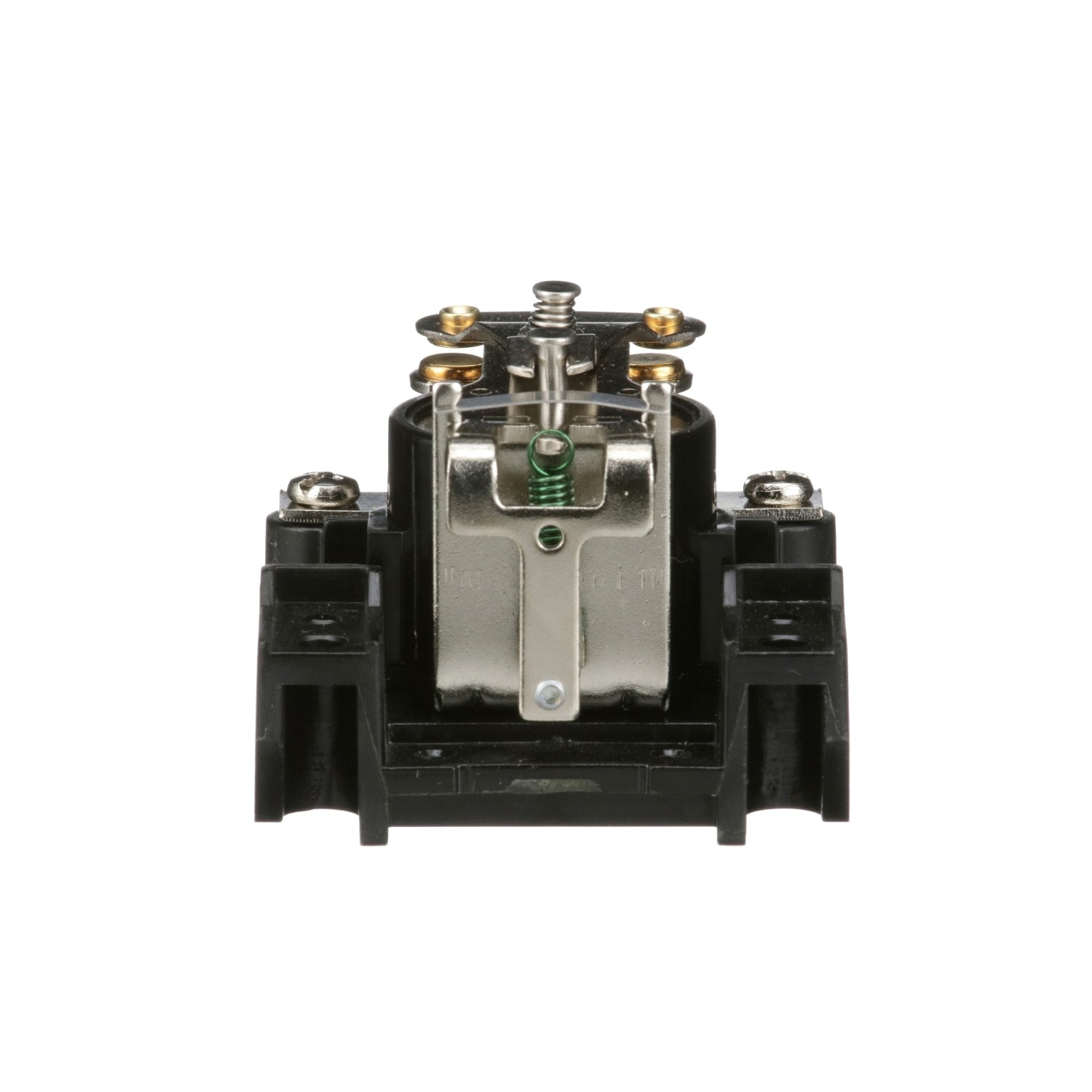

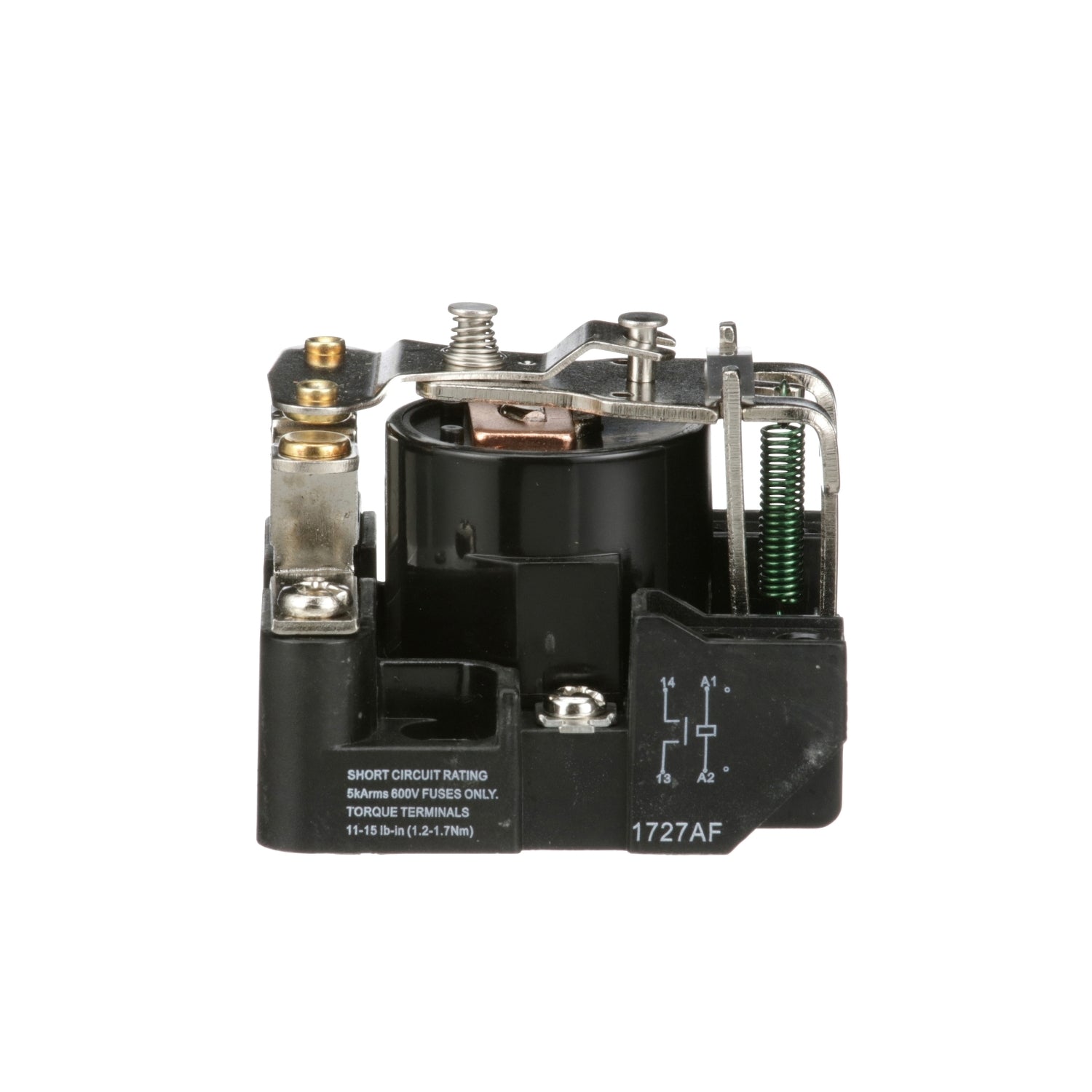

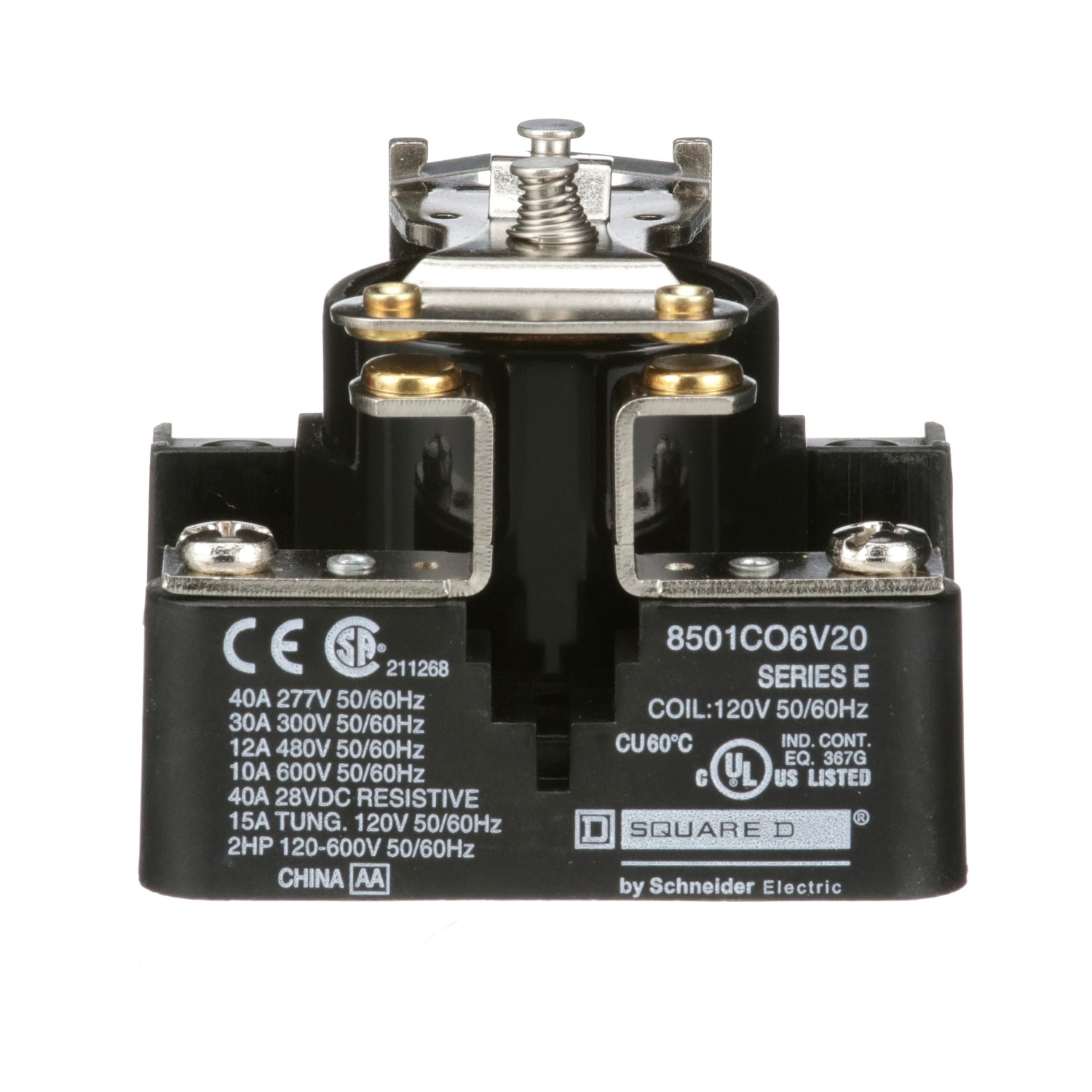

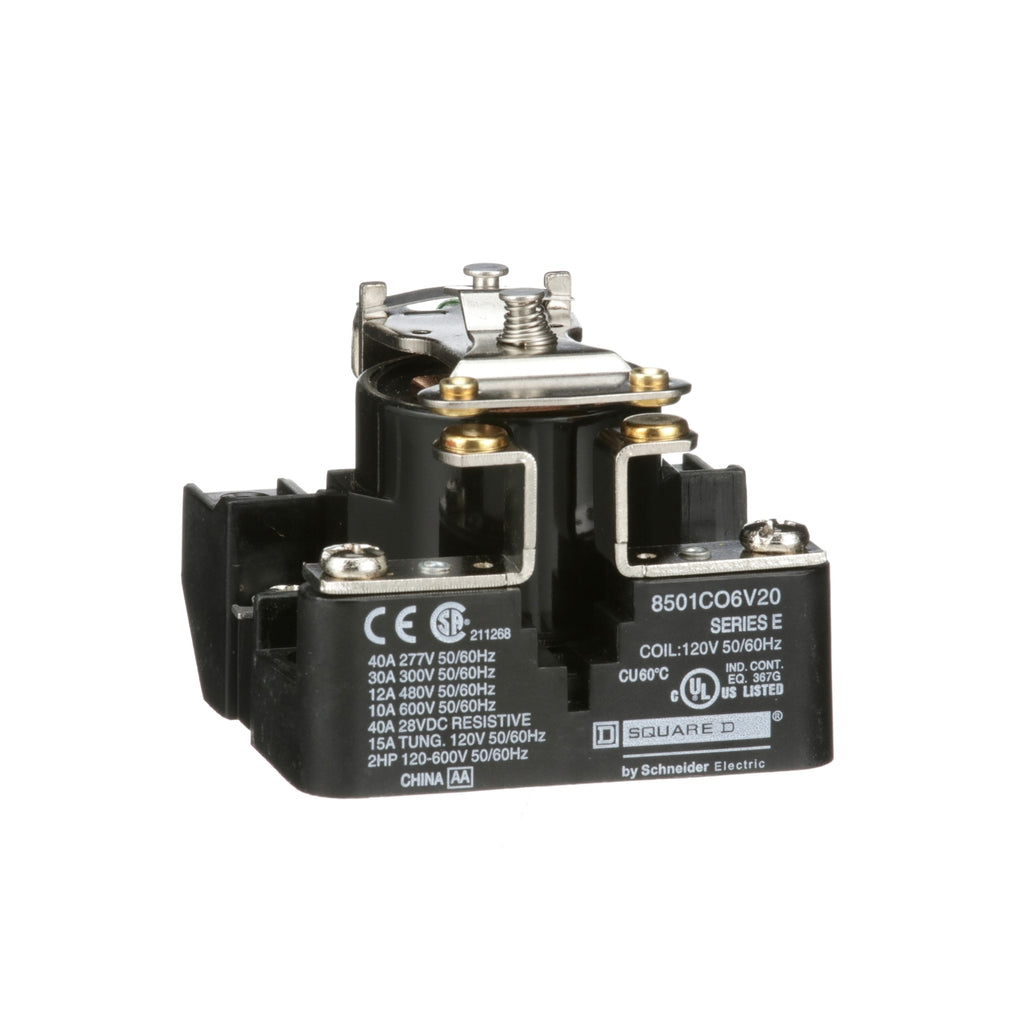

8501CO6V20 - Schneider Electric - Square D Motor Control Part And Accessory
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPST contact configuration with one normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 2 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 10 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
GENERAL SPECIFICATIONS
| product range | Power Relay 8501C |
|---|---|
| product type | Power relay |
| short name | type C |
| [In] rated line current | 30 A |
| device application | Suited for controlling small single phase motors and other light loads |
| switch function | SPST |
| contact composition | 1 NO |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| horsepower rating | 2 hp |
| maximum switching voltage | 600 V AC |
| class number | 8501 |
|---|---|
| phase | 1 phase |
| terminal connects | Screw clamp terminal |
| wire range | AWG 10 copper |
| terminal tightening torque | 11…15 lbf.in (1.2…1.7 N.m) |
| coil burden | 10 VA |
| mounting | Panel mounting |
| ambient temperature range - operational | -30…50 °C (-22…122 °F) |
|---|---|
| product certifications | UL listed file E78351 CCN NLDX CSA CE |
| height | 2.43 in (61.72 mm) |
| width | 2.5 in (63.5 mm) |
| depth | 2.25 in (57.15 mm) |
| Category | US10CP221131 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901052036 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.00 in (12.700 cm) |
| Package 1 Width | 15.00 in (38.100 cm) |
| Package 1 Length | 15.00 in (38.100 cm) |
| Package 1 Weight | 14.870 lb(US) (6.745 kg) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 5.00 in (12.700 cm) |
| Package 2 Width | 15.00 in (38.100 cm) |
| Package 2 Length | 15.00 in (38.100 cm) |
| Package 2 Weight | 14.870 lb(US) (6.745 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 40.00 in (101.600 cm) |
| Package 3 Width | 40.00 in (101.600 cm) |
| Package 3 Length | 48.00 in (121.920 cm) |
| Package 3 Weight | 476.0005 lb(US) (215.910 kg) |
PRODUCT DATASHEET
