8501CO7V20 - Schneider Electric - Square D Motor Control Parts

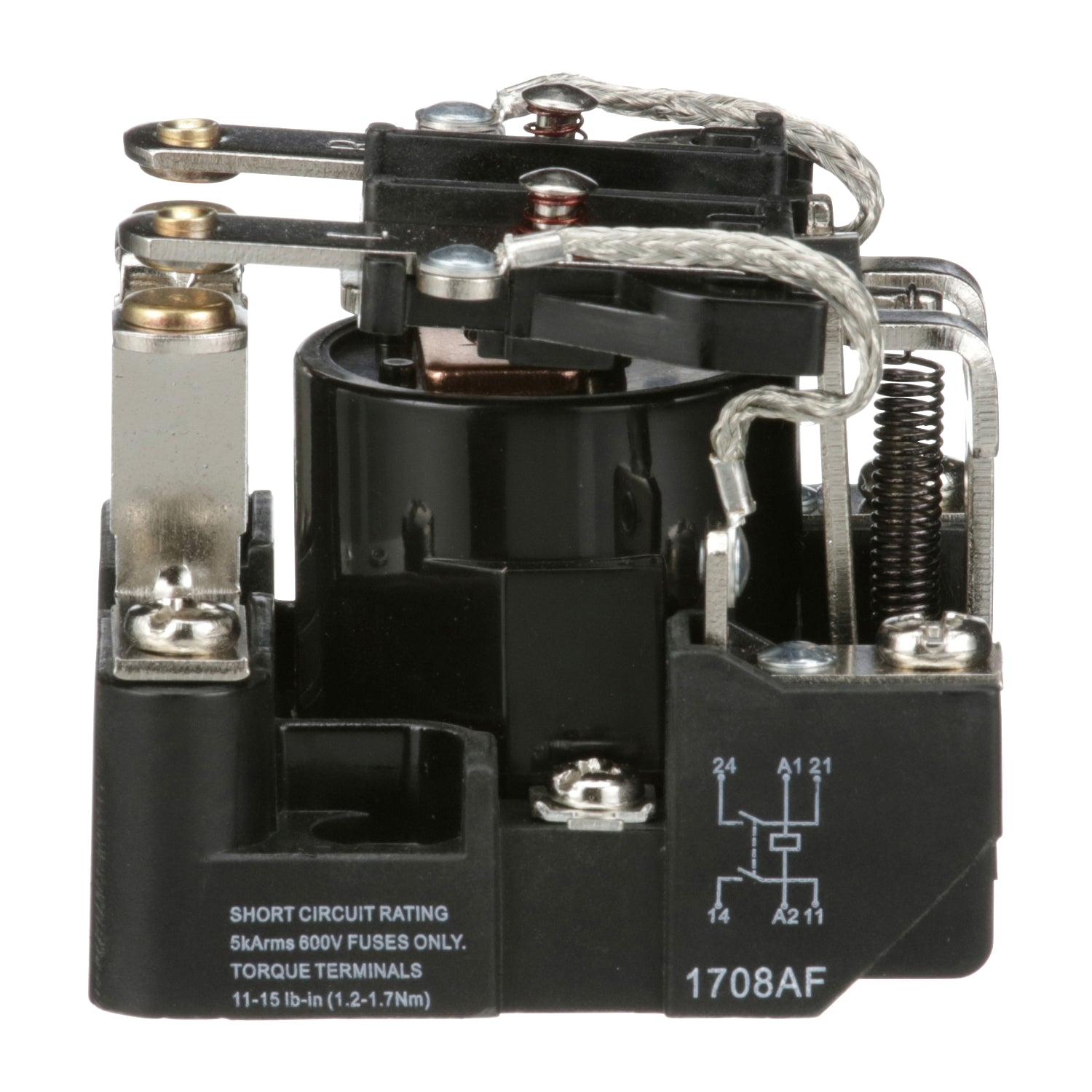

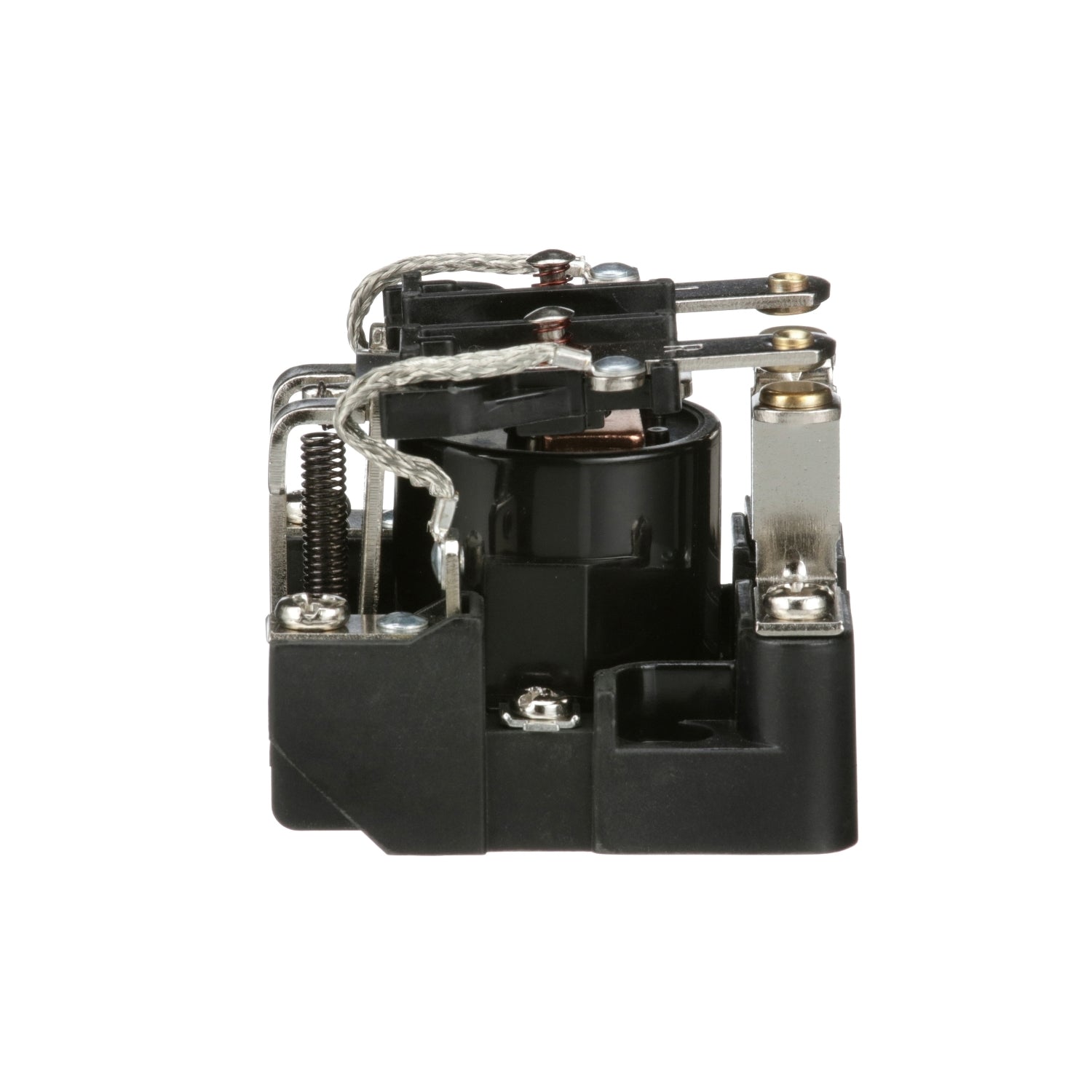

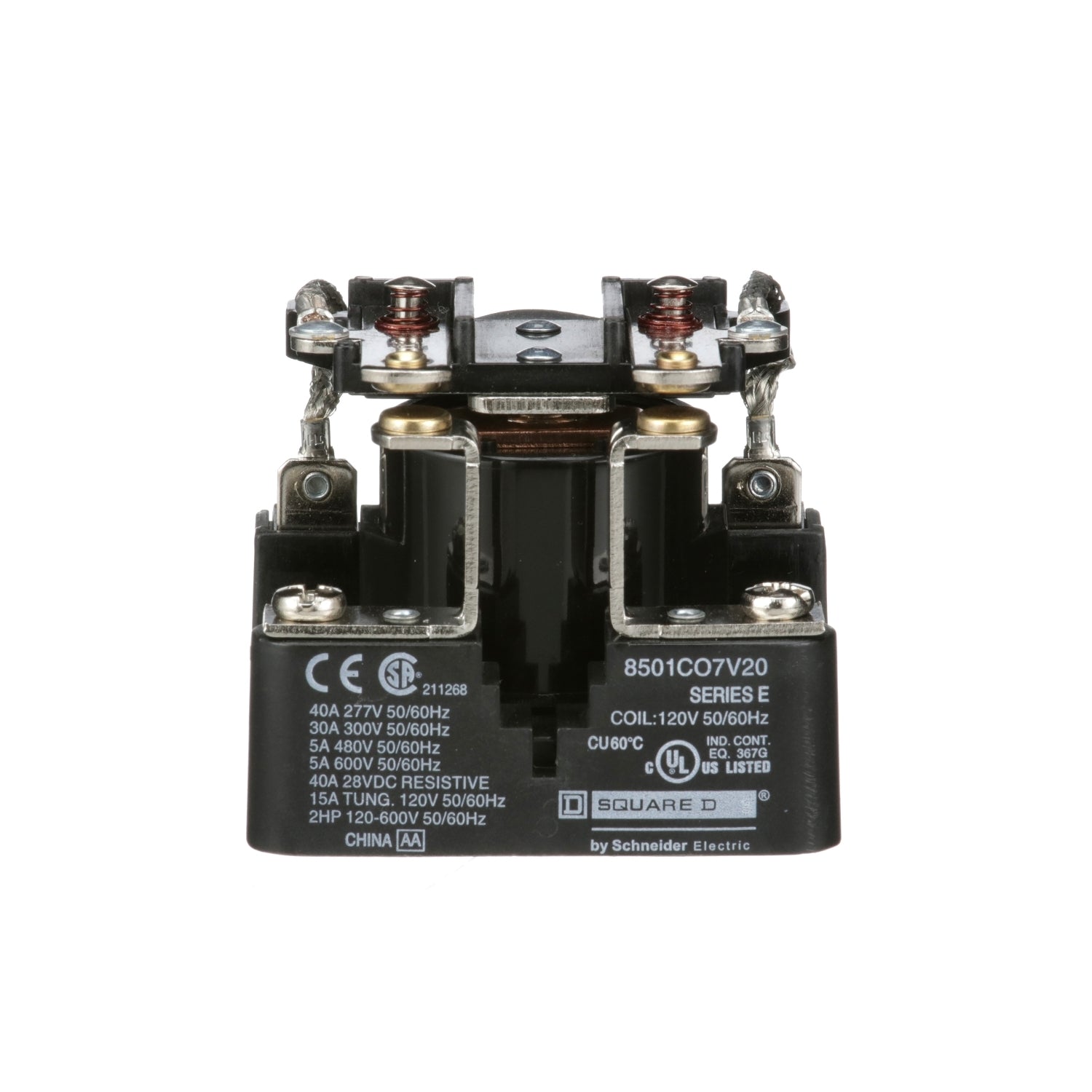

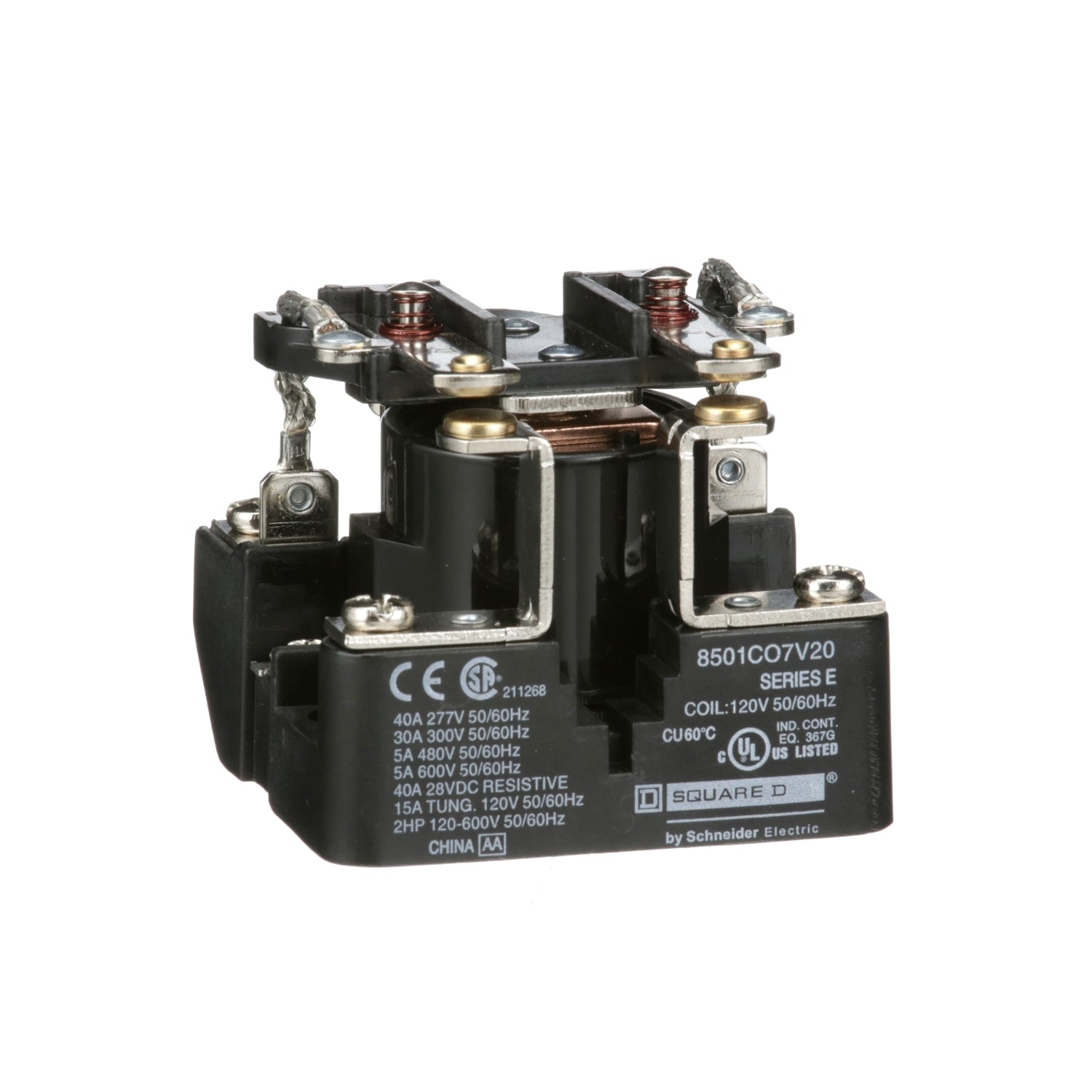

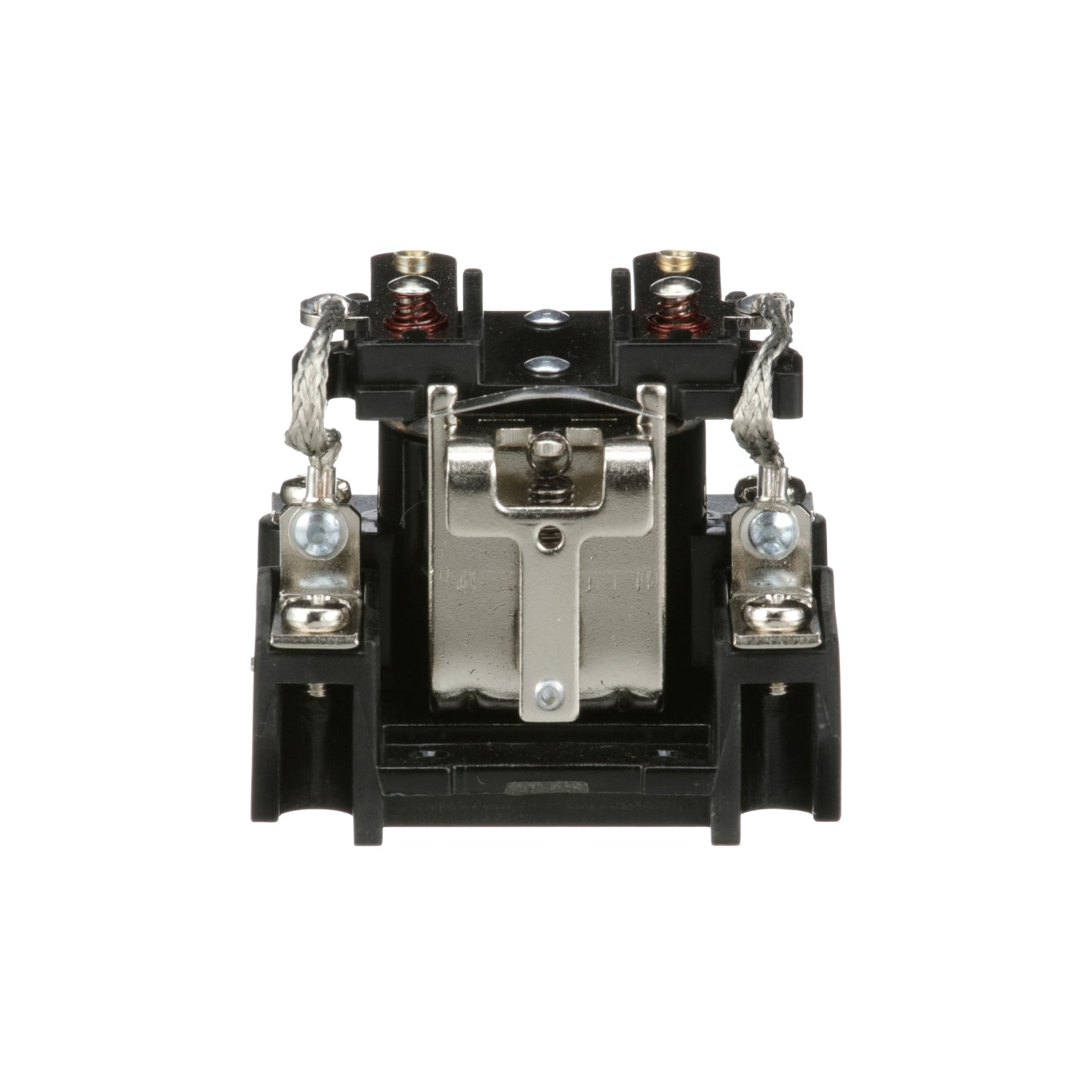

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
GENERAL SPECIFICATIONS
Main
| product range |
Power Relay 8501C |
| product type |
Power relay |
| short name |
type C |
| [In] rated line current |
30 A |
| device application |
Suited for controlling small single phase motors and other light loads |
| switch function |
DPST |
| contact composition |
2 NO |
| [Uc] control circuit voltage |
120 V AC 50/60 Hz |
| horsepower rating |
2.0 hp |
| maximum switching voltage |
600 V AC |
Complementary
| class number |
8501 |
| phase |
1 phase |
| terminal connects |
Screw clamp terminal |
| wire range |
AWG 10 copper |
| terminal tightening torque |
11…15 lbf.in (1.2…1.7 N.m) |
| coil burden |
10 VA |
| mounting |
Panel mounting |
Environment
| ambient temperature range - operational |
-22…122 °F (-30…50 °C) |
| product certifications |
UL listed file E78351 CCN NLDX
CSA
CE |
| height |
2.43 in (61.72 mm) |
| width |
2.5 in (63.5 mm) |
| depth |
2.25 in (57.15 mm) |
Ordering and shipping details
| Category |
US10CP221131 |
| Discount Schedule |
0CP2 |
| GTIN |
785901052258 |
| Returnability |
Yes |
| Country of origin |
CN |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
3.000 in (7.620 cm) |
| Package 1 Width |
2.500 in (6.350 cm) |
| Package 1 Length |
3.300 in (8.382 cm) |
| Package weight(Lbs) |
9.600 oz (272.155 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
25 |
| Package 2 Height |
4.000 in (10.160 cm) |
| Package 2 Width |
16.000 in (40.640 cm) |
| Package 2 Length |
17.000 in (43.180 cm) |
| Package 2 Weight |
17.880 lb(US) (8.110 kg) |
PRODUCT DATASHEET
8501CO7V20
