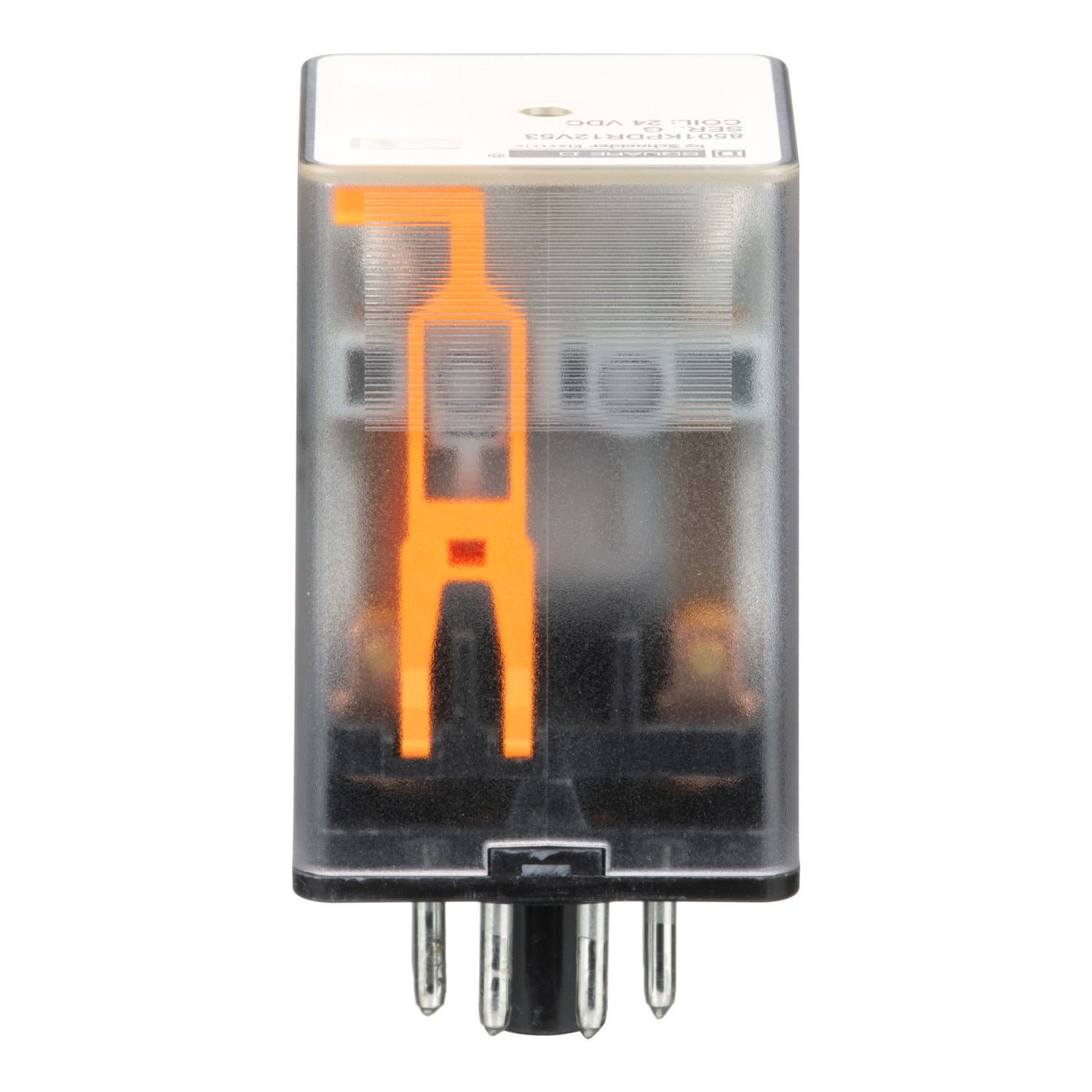

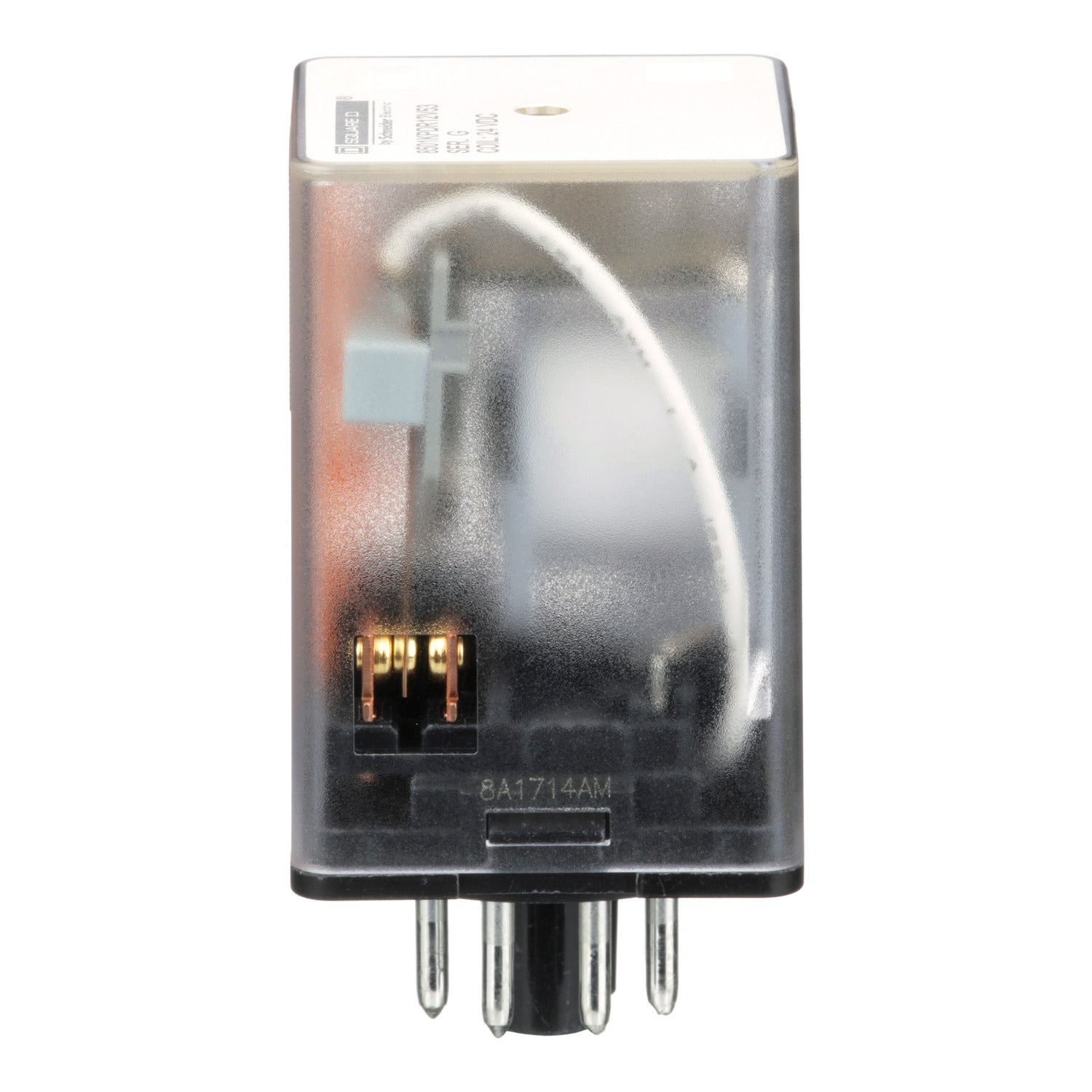

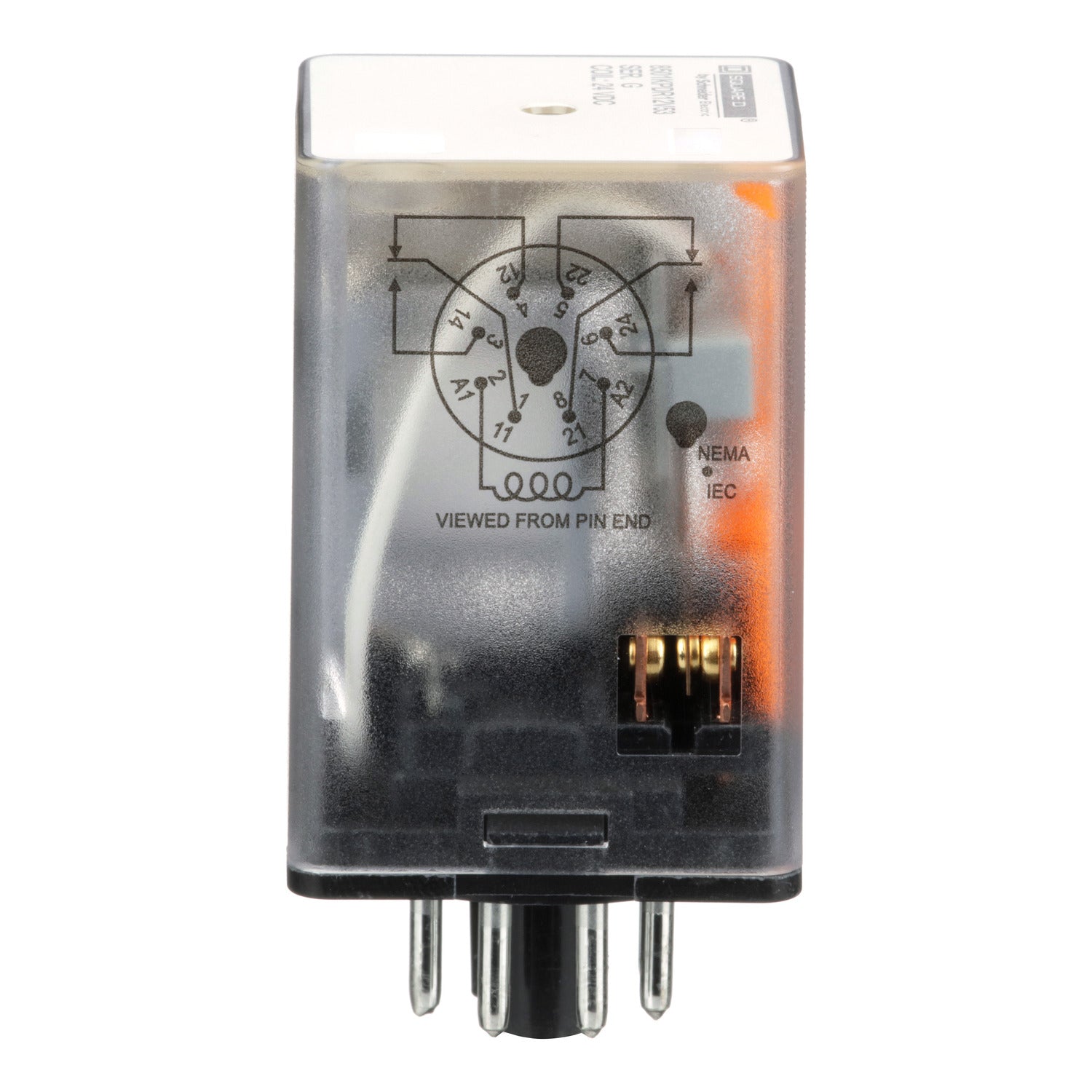

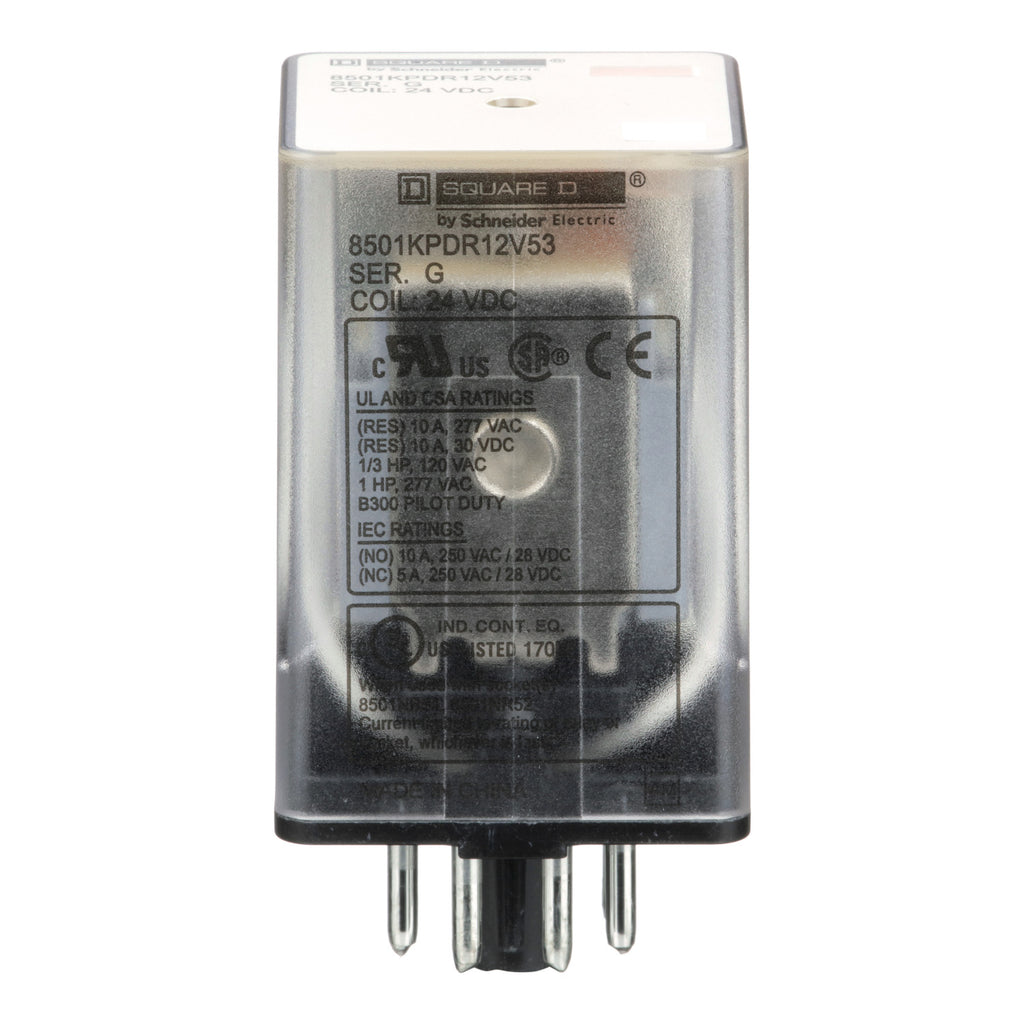

8501KPDR12V53 - Schneider Electric - Square D General purpose Relay
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| product range | 8501K |
|---|---|
| product type | Relay |
| Relay Type | General purpose |
| mounting type | Socket |
| contact composition | DPDT |
| [Uc] control circuit voltage | 24 V DC |
| pilot light | No indicator |
| manual operator | Without test button |
| horsepower rating | 1 hp 277 V AC 0.33 hp 120 V AC |
|---|---|
| breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 10 A 277 V AC resistive control circuit UL 508 10 A 30 V DC resistive control circuit UL 508 |
| maximum switching voltage | 300 V AC 30 V DC |
| contact material | Silver alloy (AgNi) |
| operating time | 20 ms - pick-up 20 ms - drop-out |
| shape of pins | Tubular |
| for use with | 8501NR52 8501NR51 |
| ambient temperature range - operational | -40…55 °C (-40…131 °F) |
|---|---|
| product certifications | UL Listed UL Recognized CSA CE |
| Height | 2.66 in (67.56 mm) |
| Width | 1.4 in (35.6 mm) |
| Depth | 1.4 in (35.6 mm) |
| Category | US10CP221141 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901278177 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.70 in (4.318 cm) |
| Package 1 Width | 1.70 in (4.318 cm) |
| Package 1 Length | 3.00 in (7.620 cm) |
| Package 1 Weight | 3.200 oz (90.718 g) |
