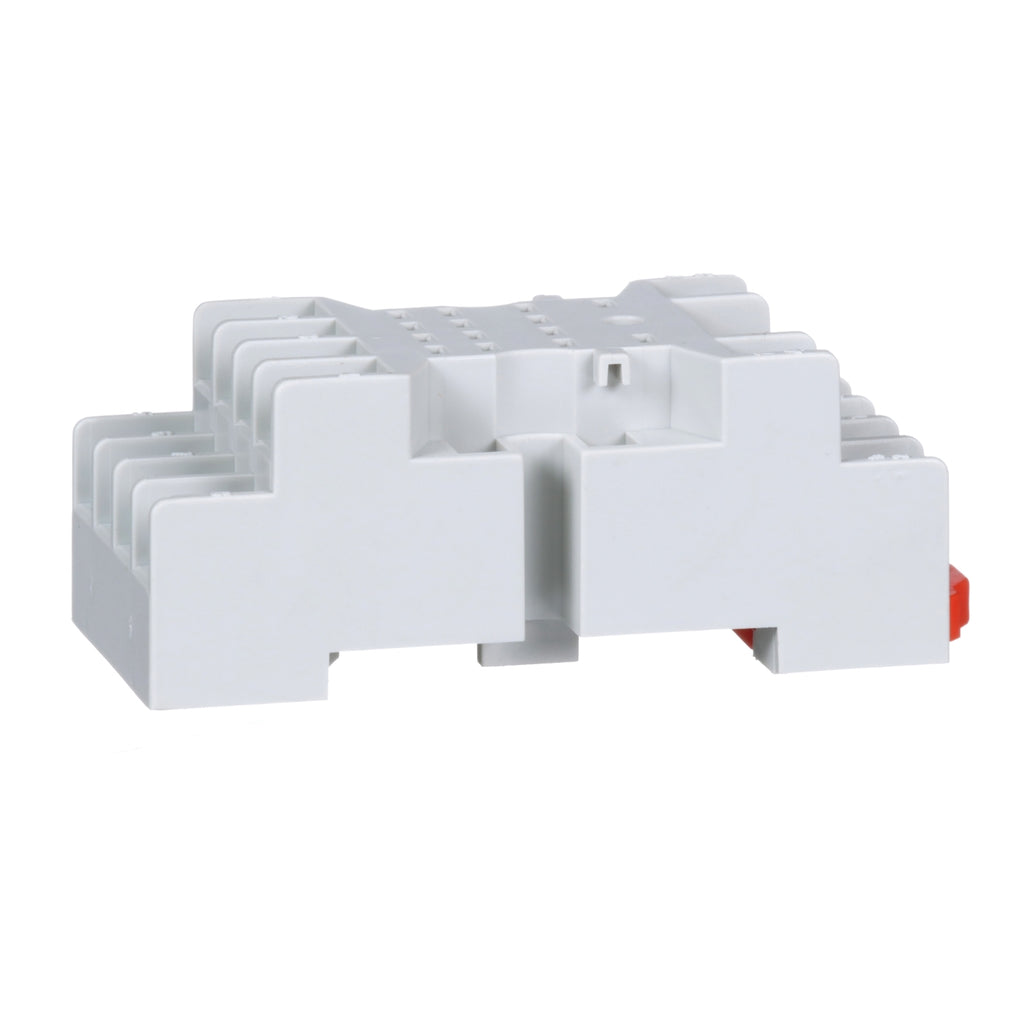

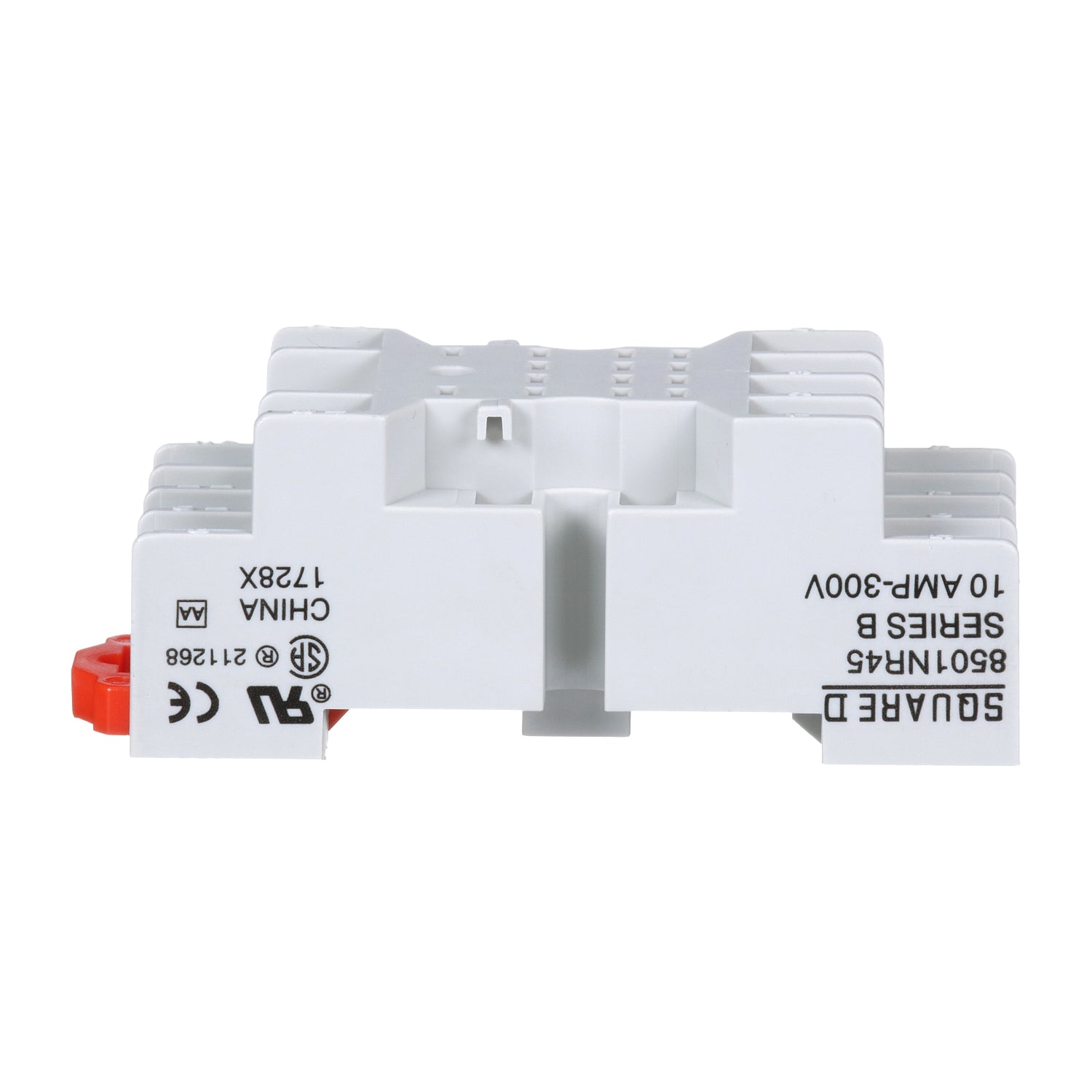

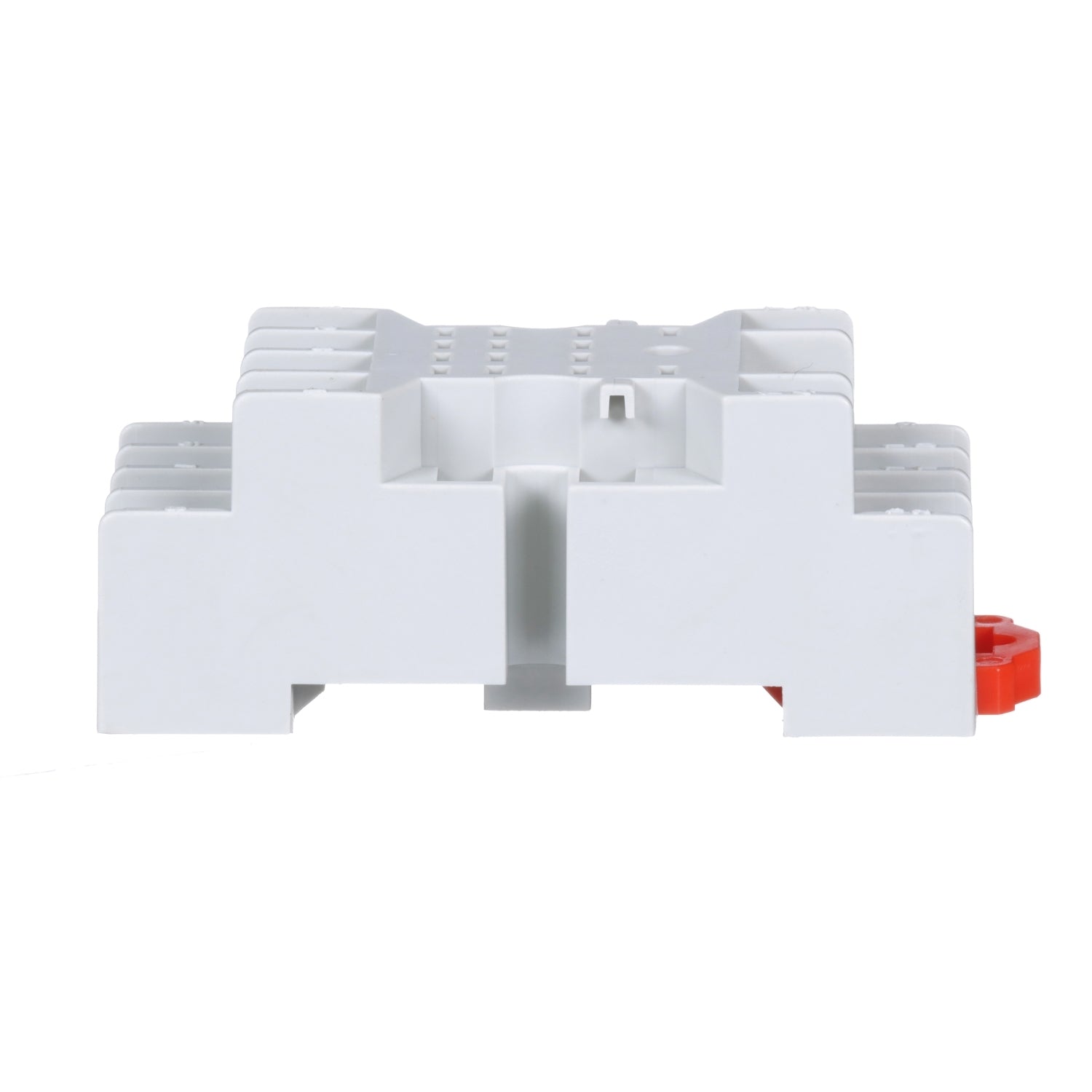

8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
Main
| [In] rated current |
10 A 300 V AC |
Complementary
| mounting type |
Panel
DIN rail |
| electrical connection |
Double tiered screw clamp terminals |
| package quantity |
1 |
| Width |
1.2 in (30.7 mm) |
| Height |
2.7 in (69 mm) |
| Depth |
1.0 in (25.4 mm) |
Ordering and shipping details
| Category |
US10CP221142 |
| Discount Schedule |
0CP2 |
| GTIN |
785901583660 |
| Returnability |
Yes |
| Country of origin |
CN |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.100 in (2.794 cm) |
| Package 1 Width |
1.300 in (3.302 cm) |
| Package 1 Length |
2.800 in (7.112 cm) |
| Package weight(Lbs) |
1.760 oz (49.895 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
3800 |
| Package 2 Height |
40.0 in (101.6 cm) |
| Package 2 Width |
40.0 in (101.6 cm) |
| Package 2 Length |
48.00 in (121.92 cm) |
| Package 2 Weight |
417.999 lb(US) (189.601 kg) |
PRODUCT DATASHEET
8501NR45
