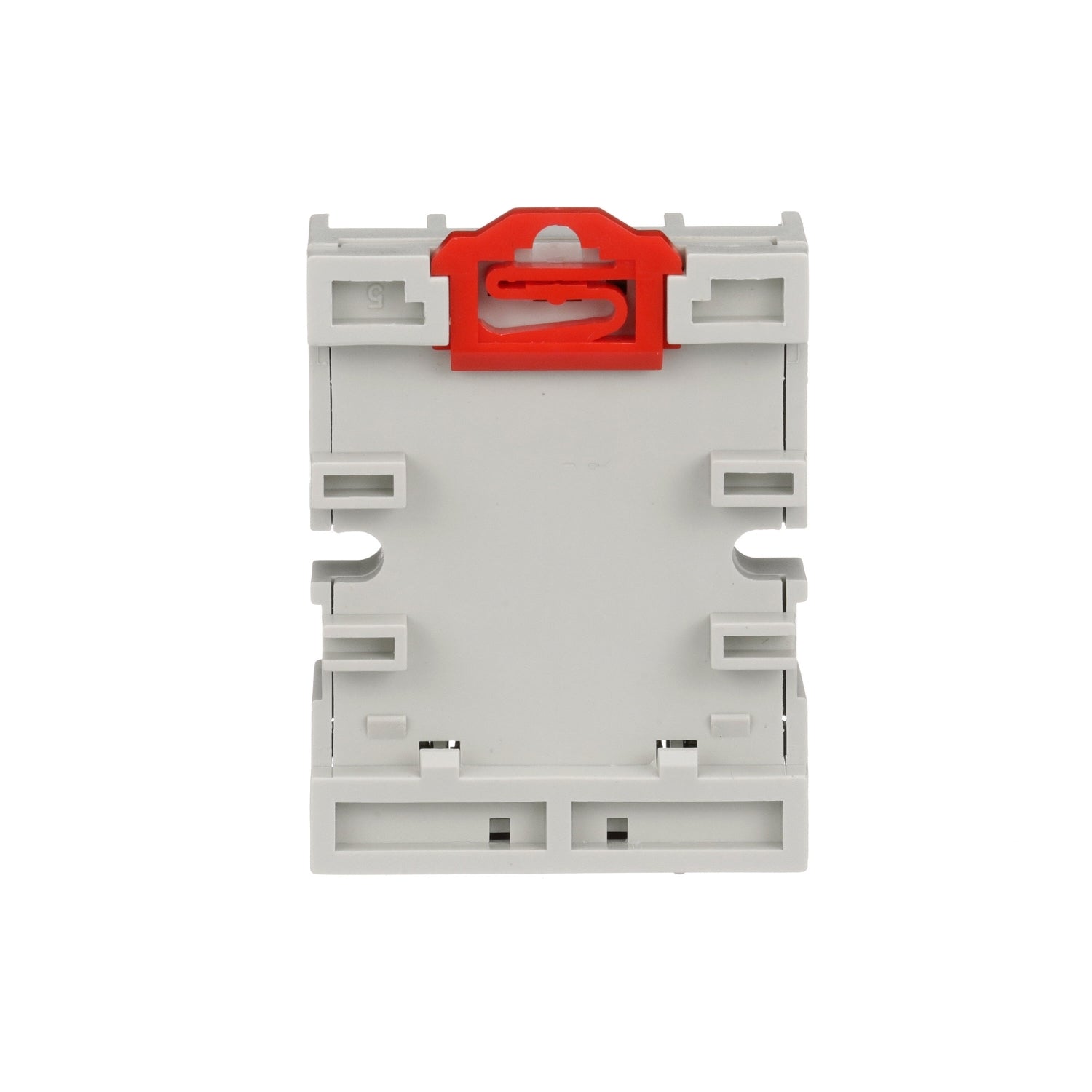

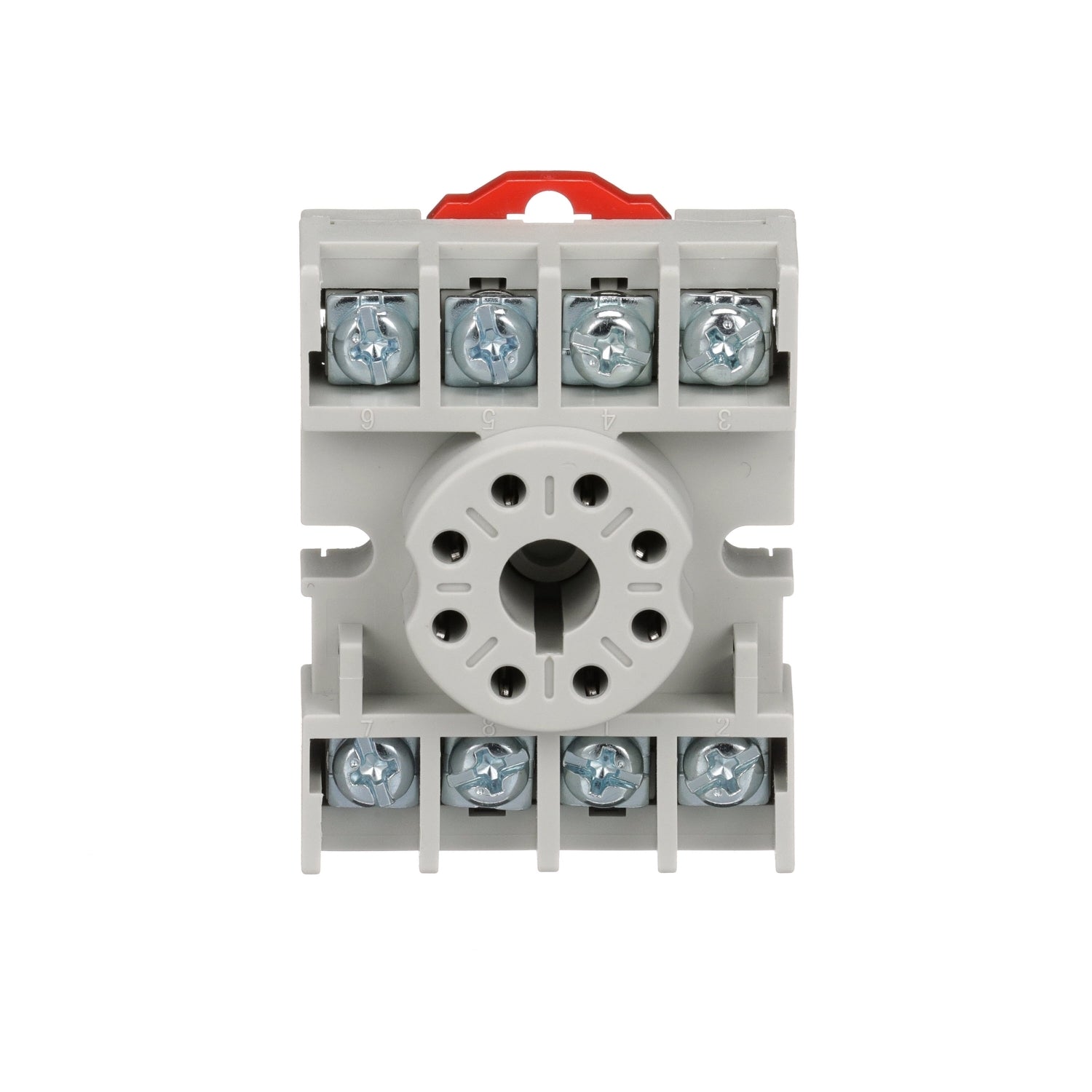

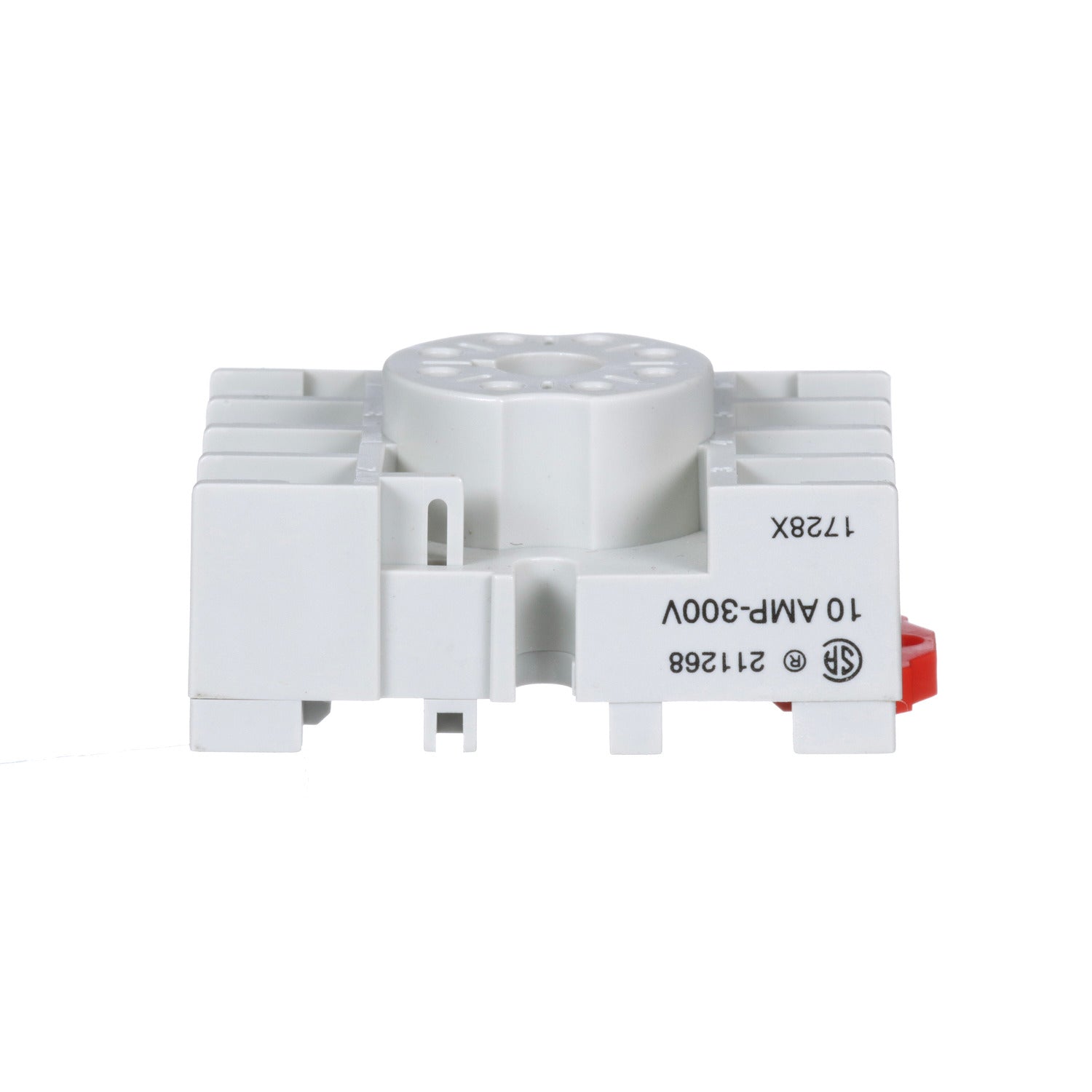

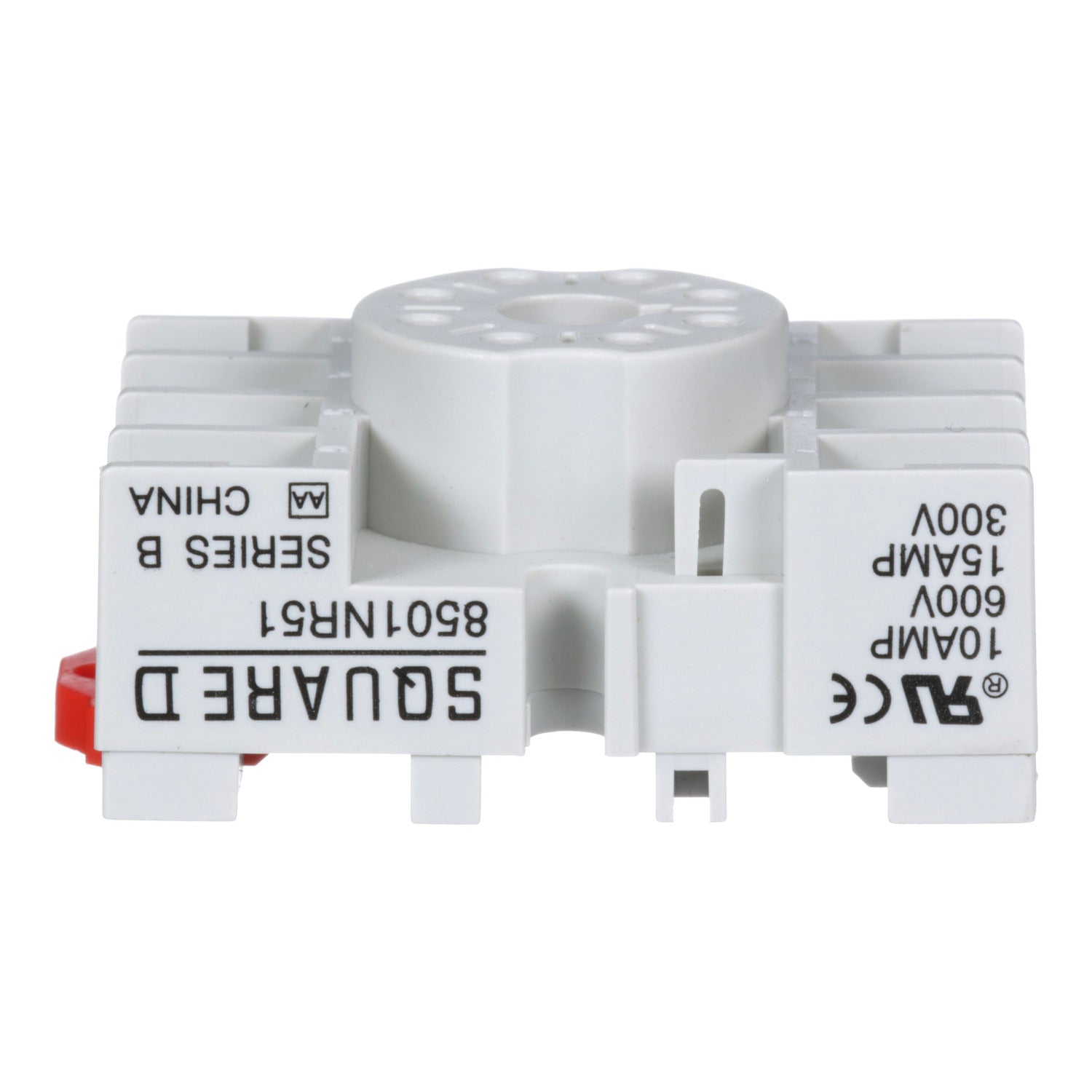

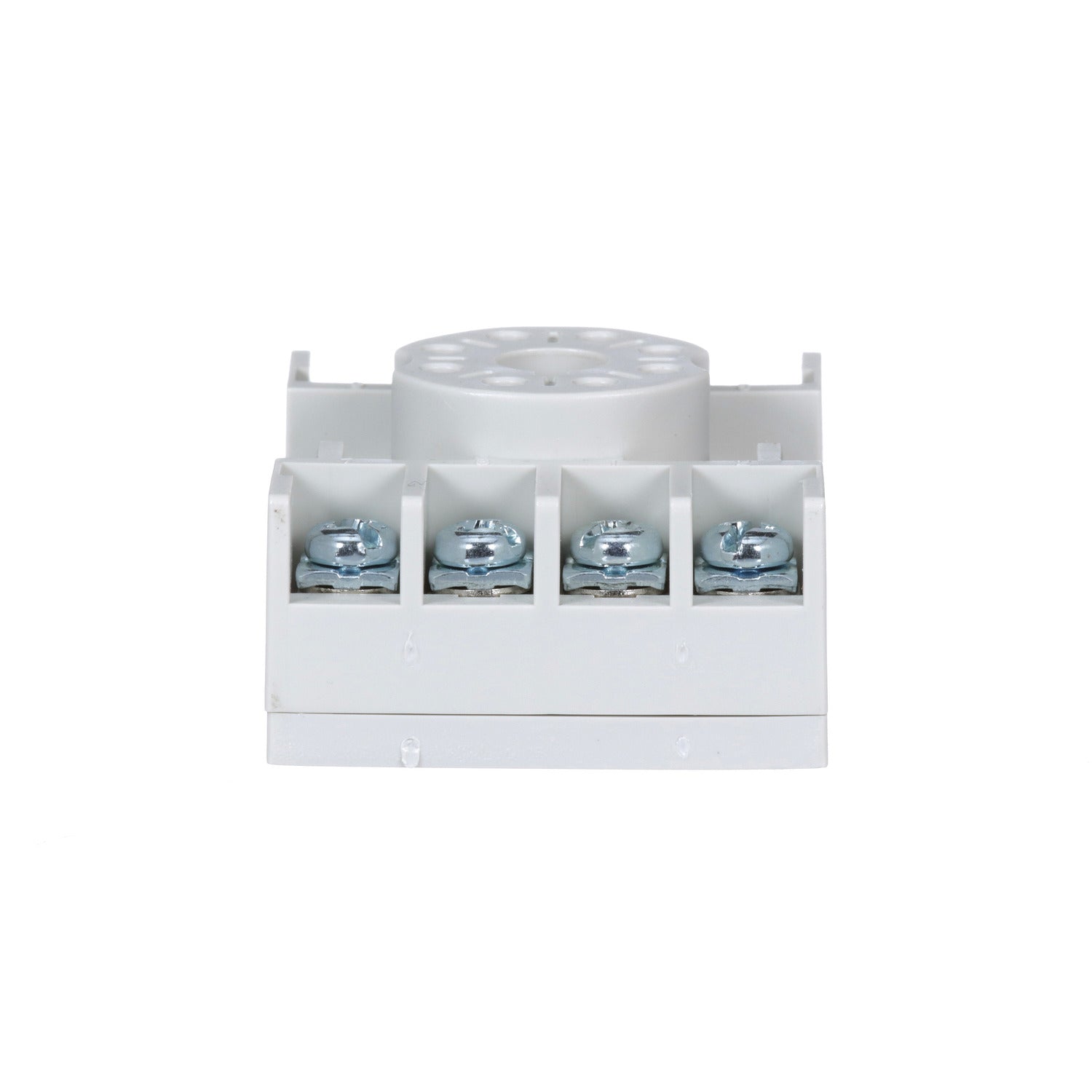

8501NR51 - Schneider Electric - Square D Relay Socket
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| [In] rated current | 15 A 300 V AC 5 A 600 V AC |
|---|
| mounting type | DIN rail Panel |
|---|---|
| electrical connection | Single tiered screw clamp terminals |
| package quantity | 1 |
| Width | 1.6 in (40 mm) |
| Height | 2.1 in (54 mm) |
| Depth | 1.0 in (24.6 mm) |
| Category | US10CP221142 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901583592 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.00 in (2.540 cm) |
| Package 1 Width | 1.70 in (4.318 cm) |
| Package 1 Length | 2.20 in (5.588 cm) |
| Package 1 Weight | 1.600 oz (45.359 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 600 |
| Package 2 Height | 14.20 in (36.068 cm) |
| Package 2 Width | 11.20 in (28.448 cm) |
| Package 2 Length | 17.80 in (45.212 cm) |
| Package 2 Weight | 64.0002 lb(US) (29.030 kg) |
