Description

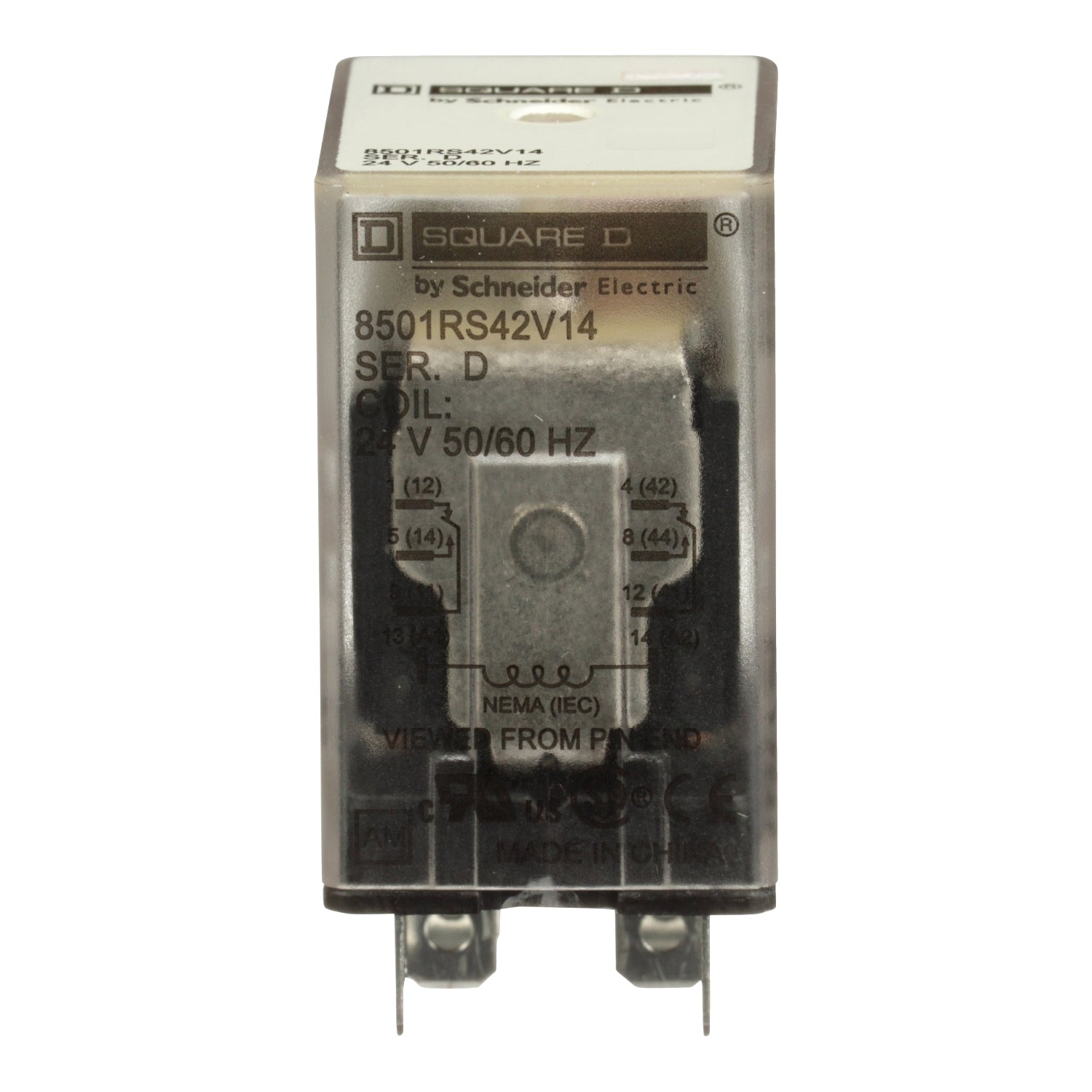

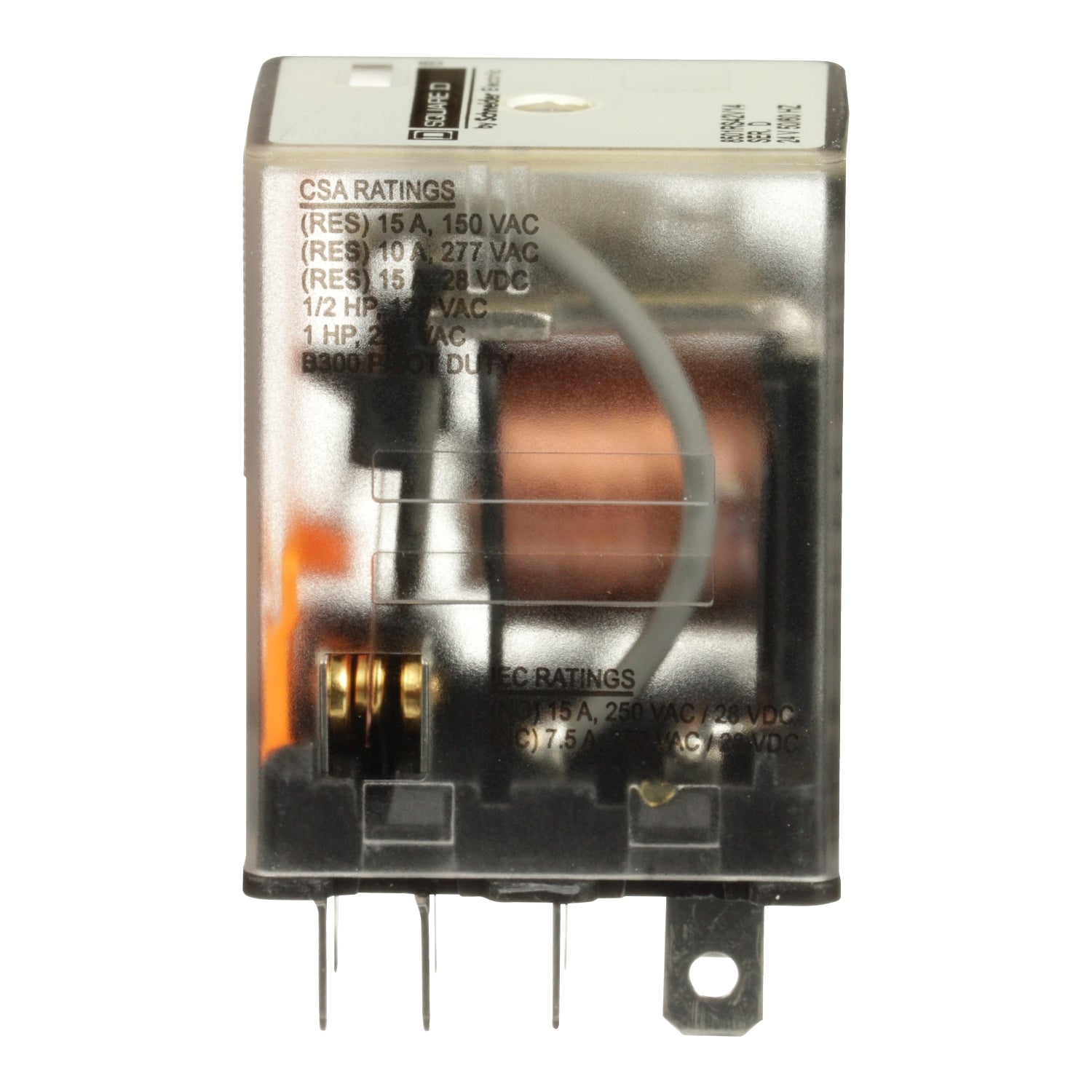

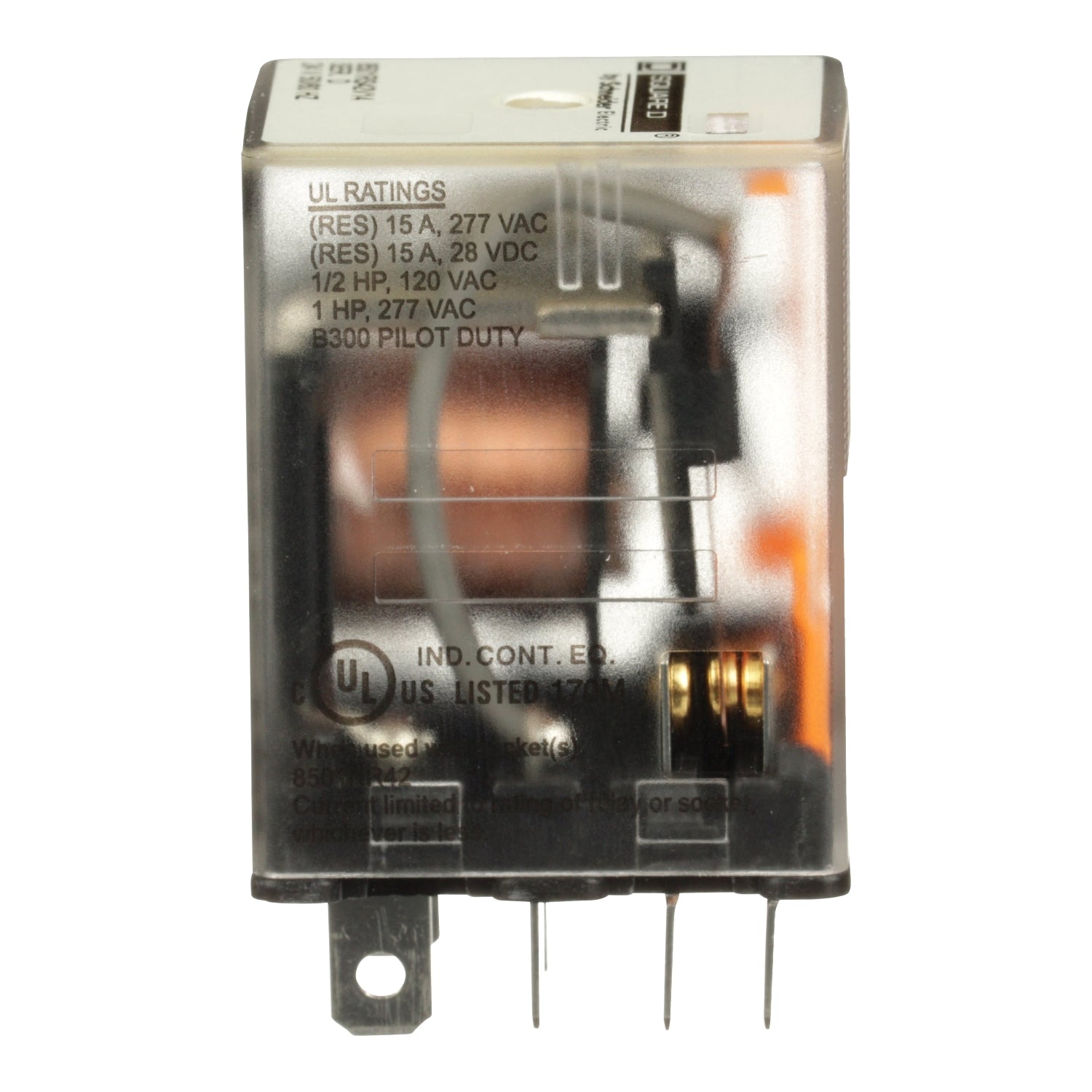

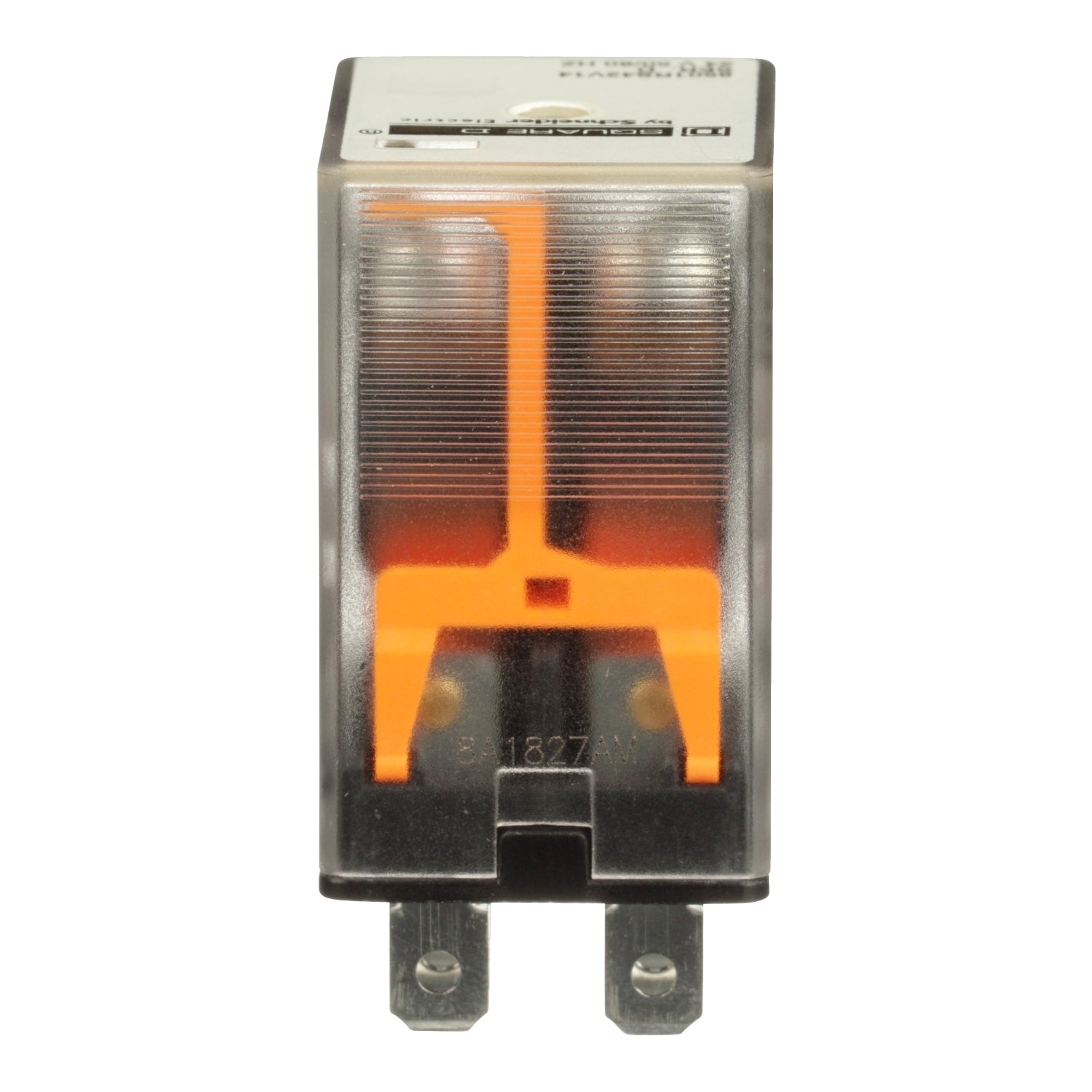

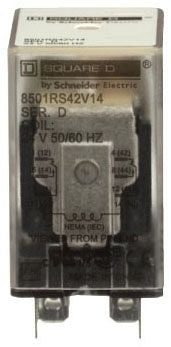

8501RS42V14 - Schneider Electric - Square D Standard Miniature Relay
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| product range | 8501R |
|---|---|
| product type | Miniature Relay |
| Relay Type | Standard |
| mounting type | Socket |
|---|---|
| contact composition | DPDT |
| [Uc] control circuit voltage | 24 V AC |
| pilot light | No indicator |
| manual operator | Without test button |
| horsepower rating | 0.5 120 V AC 1 277 V AC |
| breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 15 A 120 V AC resistive control circuit UL 508 10 A 277 V AC resistive control circuit UL 508 15 A 28 V DC resistive control circuit UL 508 |
| maximum switching voltage | 300 V AC 30 V DC |
| contact material | Silver alloy, gold flashed |
| operating time | 20 ms - pick-up 20 ms - drop-out |
| shape of pins | Spade |
| for use with | 8501NR42 |
| Height | 1.07 in (27.3 mm) |
| Width | 0.8 in (21 mm) |
| Depth | 1.6 in (41.8 mm) |
| ambient temperature range - operational | -40…55 °C (-40…131 °F) |
|---|---|
| product certifications | UL Listed UL Recognized CSA CE |
| Category | US10CP221143 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901131304 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.50 in (3.810 cm) |
| Package 1 Width | 2.10 in (5.334 cm) |
| Package 1 Length | 1.40 in (3.556 cm) |
| Package 1 Weight | 1.440 oz (40.823 g) |
